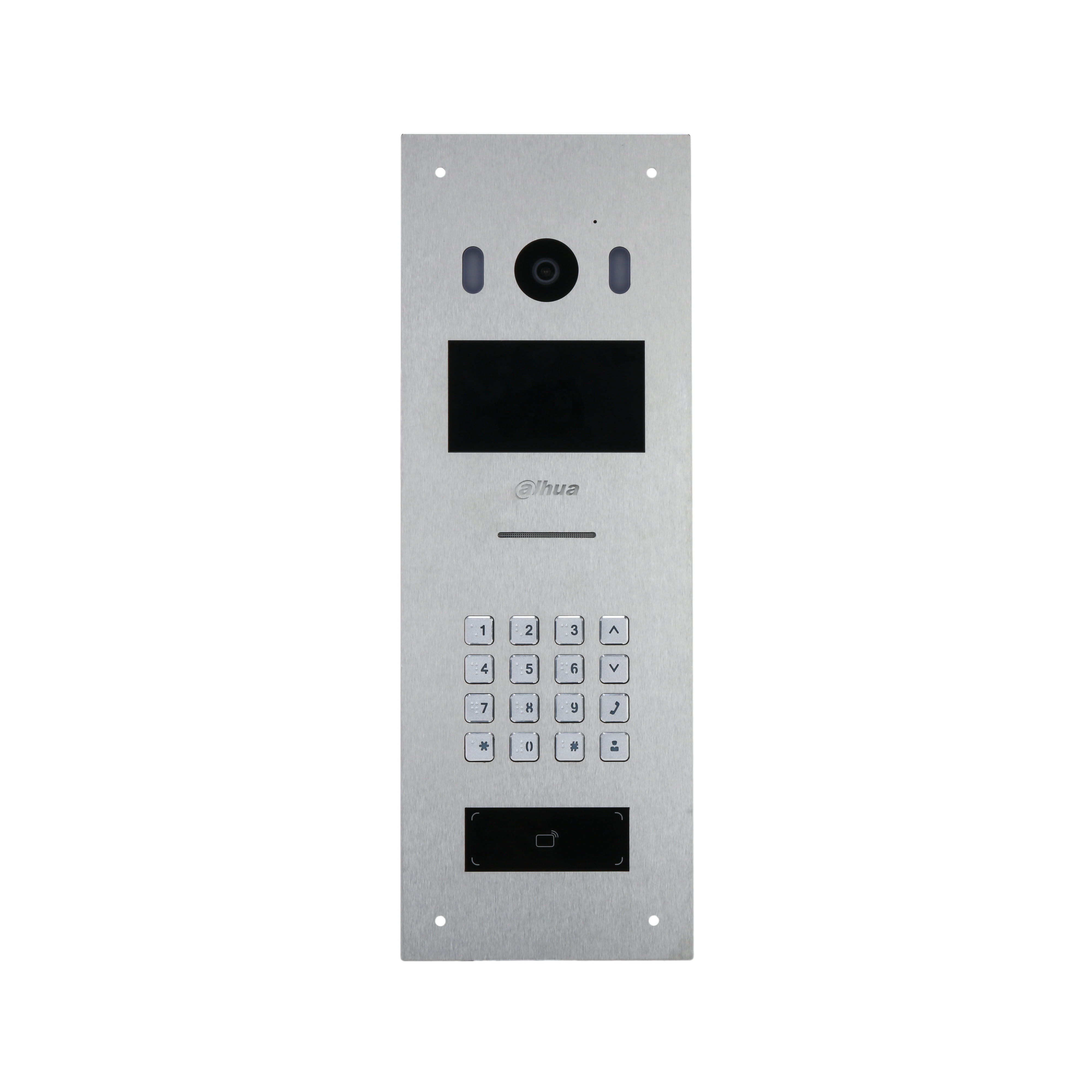

Dahua Technology VTO6521K, 10.9 cm (4.3"), LCD, 800 x 480 pixels, H.264, Stainless steel, IP65
Dahua Technology VTO6521K. Display diagonal: 10.9 cm (4.3"), Display technology: LCD, Display resolution: 800 x 480 pixels. Megapixel (approx.): 2 MP, Supported video modes: 720p, 1080p, Sensor type: CMOS. Voice codecs: G.711a, G.711u, PCM. Product colour: Stainless steel, International Protection (IP) code: IP65, IK code: IK08. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X)
| Technical details | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Colour The main colour of the product. |
 |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
 |
| Maximum number of cameras supported The total number of cameras that can be used with the product. | 1 |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Door station control |
|
| Voice codecs | G.711a, G.711u, PCM |
| VoIP protocols | RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Built-in microphone Microphone that is found inside the product. |
|
| Automatic gain control |
|
| Motion detection function |
|
| Noise-canceling |
|
| Fingerprint reader A scanner used to identify a person's fingerprint for security purposes. After a sample is taken, access to a computer or other system is granted if the fingerprint matches the stored sample. A PIN may also be used with the fingerprint sample. |
|
| RFID reader |
|
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC) |
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 10.9 cm (4.3") |
| Display technology The technology used in the display e.g. plasma, LED. | LCD |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 800 x 480 pixels |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Video formats supported The type of video formats that can be used by this device. | H.264 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Stainless steel |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65 |
| IK code | IK08 |
| Housing material What the casing of the product is made of. | Stainless steel |
| Control type The way in which the device is controlled. | Buttons |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Vertical |
| Proper use The intended application of the product. | Outdoor |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Cabling technology Type of cable technology performance. | 10/100Base-T(X) |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF |
| Camera | |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 2 MP |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080p |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 86.4° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 46.2° |
| Power | |
| Outdoor unit power type | DC |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Power consumption | 200 mA |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 143 mm |
| Depth The distance from the front to the back of something. | 54 mm |
| Height The measurement of the product from head to foot or from base to top. | 406 mm |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Linux |
| Packaging data | |
| Outdoor unit included |
|
| Package weight Weight of the packaged product. | 2.05 kg |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Minimum order quantity | 1 pc(s) |
| SKU | 761297 |
| MPN | DHI-VTO6521K |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dahuasecurity.com/ |
