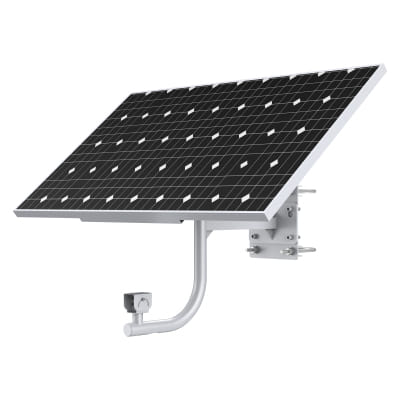

Dahua Technology DH-PFM378-B100-WB, 130 W, 100 W, 18.8 V, 10 A, Black, White, IP65
Integrated solar monitoring system (without lithium battery), all in one desion, using 4G to transfer monitoring data and solar to power, which is easy/quick to install and can save wiring to the greatest extent, includes three parts: 4G network camera, integrated solar power system and camera's mounting bracket, which is more convenient for sale, order and transportation. It is compact, portable, easy to install, disassemble and maintain compared with conventional system. Camera supports multi-angle flexible adjustment.
Integrated sheet metal bracket
The bracket is built of a Q235 steel that makes it both strong and durable. It is ideal for installing solar panels, lithium batteries and cameras, and is designed to make installation and maintenance of the
solar system more convenient.
Monocrystalline silicon solar panel
Adopt efficient monocrystalline silicon solar panel to greatly improve light absorbance efficiency and power generation performance with dusky light.
Remote monitoring with APP
With Dahua cameras, it supports real-time remote monitoring of the system operation status and alarm prompts of battery with APP.
Maximum Power Point Tracking (MPPT) charging controller
MPPT controller helps significantly improve the energy utilization
efficiency of the system, and raise the charging efficiency by 10%
Integrated sheet metal bracket
The bracket is built of a Q235 steel that makes it both strong and durable. It is ideal for installing solar panels, lithium batteries and cameras, and is designed to make installation and maintenance of the
solar system more convenient.
Monocrystalline silicon solar panel
Adopt efficient monocrystalline silicon solar panel to greatly improve light absorbance efficiency and power generation performance with dusky light.
Remote monitoring with APP
With Dahua cameras, it supports real-time remote monitoring of the system operation status and alarm prompts of battery with APP.
Maximum Power Point Tracking (MPPT) charging controller
MPPT controller helps significantly improve the energy utilization
efficiency of the system, and raise the charging efficiency by 10%
| Power | |
| Rated power The maximum active power under the rated operation conditions. | 130 W |
| Solar panel power | 100 W |
| Solar panel voltage | 18.8 V |
| Current | 10 A |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65 |
| Certification | CE: EN 55032:2015+A11:2020,EN 55035:2017+A11:2020,EN 55024:2010+A1:2015,EN 50130-4:2011+A1:2014 UKCA: EN 55032:2015+A11:2020,EN 55035:2017+A11:2020,EN 55024:2010+A1:2015,EN 50130-4:2011+A1:2014 |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 880 mm |
| Package depth The distance from the front to the back of the packaging. | 765 mm |
| Package height The distance from the top to the bottom of the packaging. | 275 mm |
| Package weight Weight of the packaged product. | 23.8 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 815 mm |
| Depth The distance from the front to the back of something. | 846.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 893.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 21 kg |
| SKU | 751673 |
| MPN | DH-PFM378-B100-WB |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dahuasecurity.com/ |
| Stock Availability | Available for Shipping |
