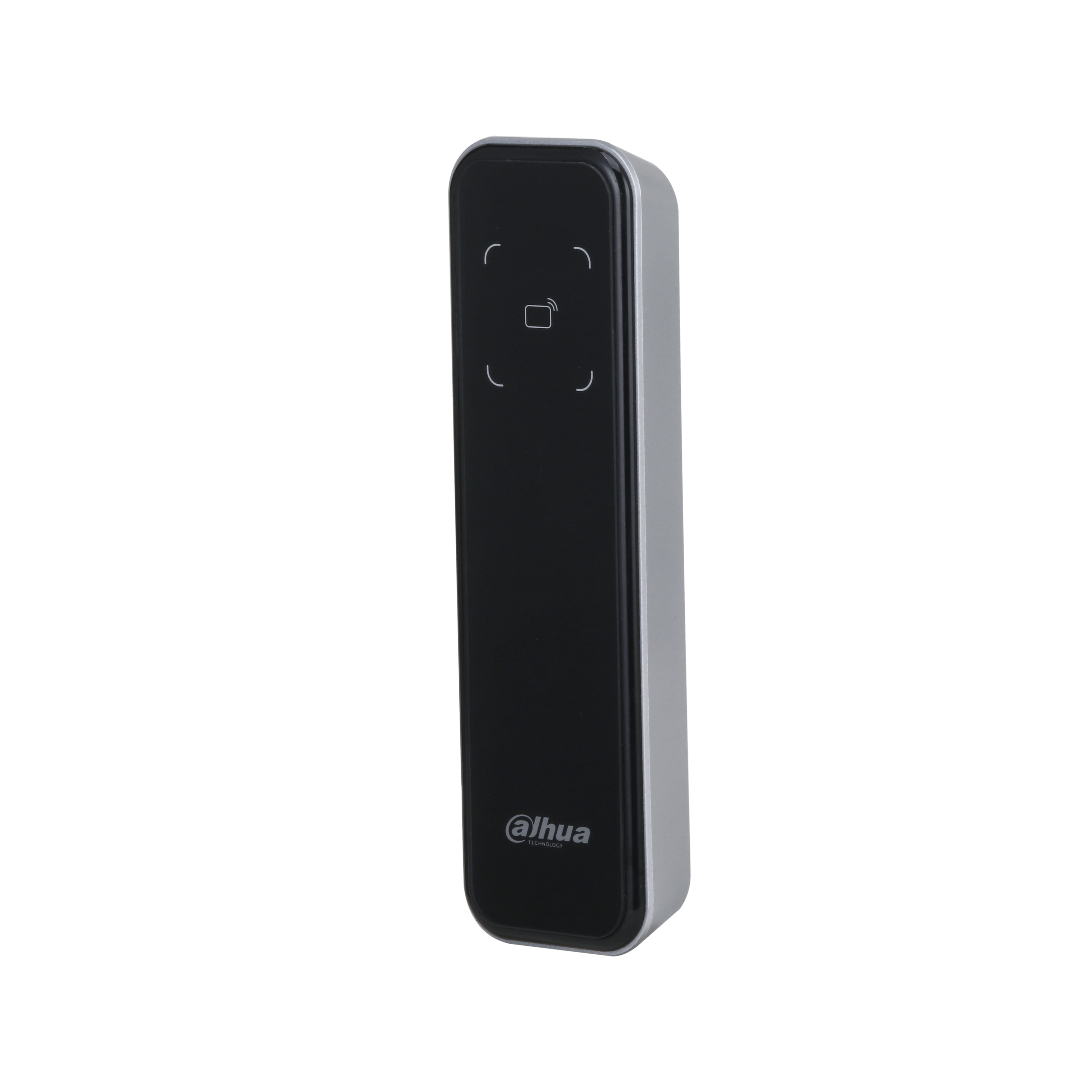

Dahua Technology ASR2200A, Basic access control reader, Access chip/card reader, IP66
As a key part of the access control system, the DHI-ASR2200A access control card reader supports card unlock and sends the information to the access controller for verification. With a thin and elegant design, it is applicable to industrial zones, office buildings, schools, factories, stadiums, CBD, residential area, government properties, etc.
| Technical details | |
| Type Characteristics of the device. | Basic access control reader |
| Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data. | Access chip/card |
| Buzzer |
 |
| Wiegand interface |
|
| Tamper protection |
|
| Fingerprint reader A scanner used to identify a person's fingerprint for security purposes. After a sample is taken, access to a computer or other system is granted if the fingerprint matches the stored sample. A PIN may also be used with the fingerprint sample. |
 |
| Access chip/card reader Device that is able to read an access chip/card (smart card), and therefore determine whether the person with the card should be given access to the physical place or computer system. |
|
| Access chip/card reader type | Contactless |
| Contactless working distance | 5 cm |
| Watch Dog function |
|
| Verification (1:1) time | 0.1 s |
| Recommended usage What the product should be used for, and how it should be used (e.g. ambient temperature). | Indoor & outdoor |
| Unlock function |
|
| Active tampering alarm |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Polycarbonate (PC), Tempered glass |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Camera | |
| Front camera Camera at the front of the product. |
|
| Ports & interfaces | |
| RS-485 ports | 1 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.7 W |
| DC voltage range | 12 V |
| DC current (max) | 0.5 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 135 mm |
| Depth The distance from the front to the back of something. | 40 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 415 mm |
| Package depth The distance from the front to the back of the packaging. | 400 mm |
| Package height The distance from the top to the bottom of the packaging. | 230 mm |
| Package weight Weight of the packaged product. | 160 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC) |
