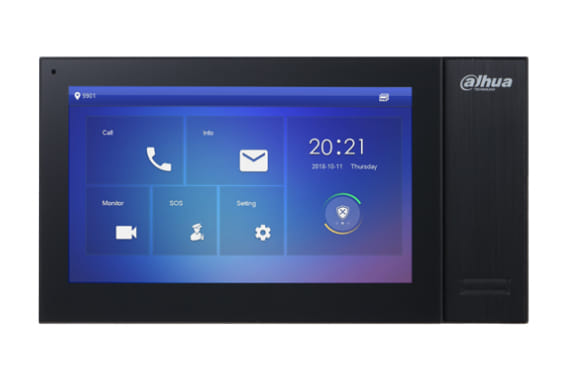

Dahua Technology VTH2421FB, 17.8 cm (7"), LCD, 1024 x 600 pixels, Capacitive, H.264, Black
Dahua Technology VTH2421FB. Display diagonal: 17.8 cm (7"), Display technology: LCD, Display resolution: 1024 x 600 pixels. Speaker power: 1.5 W, Voice codecs: G.711, G.711u, PCM. Product colour: Black, Placement supported: Horizontal. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: TCP/IP. Operating system installed: Linux
| Technical details | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Colour The main colour of the product. |
 |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
|
| Number of displays supported The number of displays that can be used with this product. | 1 |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of speakers The quantity of speakers included in/with the product. | 1 |
| Speaker power | 1.5 W |
| Voice codecs | G.711, G.711u, PCM |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Built-in microphone Microphone that is found inside the product. |
|
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 17.8 cm (7") |
| Display technology The technology used in the display e.g. plasma, LED. | LCD |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1024 x 600 pixels |
| Backlight display A backlight is a form of illumination used in liquid crystal displays (LCDs). As LCDs do not produce light themselves - unlike for example Cathode ray tube (CRT) displays - they need illumination (ambient light or a special light source) to produce a visible image. Backlights are used in small displays to increase readability in low light conditions such as in watches, and in computer displays and LCD televisions to produce light in a manner similar to a CRT display. |
|
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive. | Capacitive |
| Video formats supported The type of video formats that can be used by this device. | H.264 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Horizontal |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP |
| Power | |
| Indoor unit power type | DC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 7 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 1 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 221.5 mm |
| Depth The distance from the front to the back of something. | 21.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 119.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 350 g |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Linux |
| Packaging data | |
| Indoor unit included |
|
| Outdoor unit included |
 |
| SKU | 751550 |
| MPN | DHI-VTH2421FB-P |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dahuasecurity.com/ |
