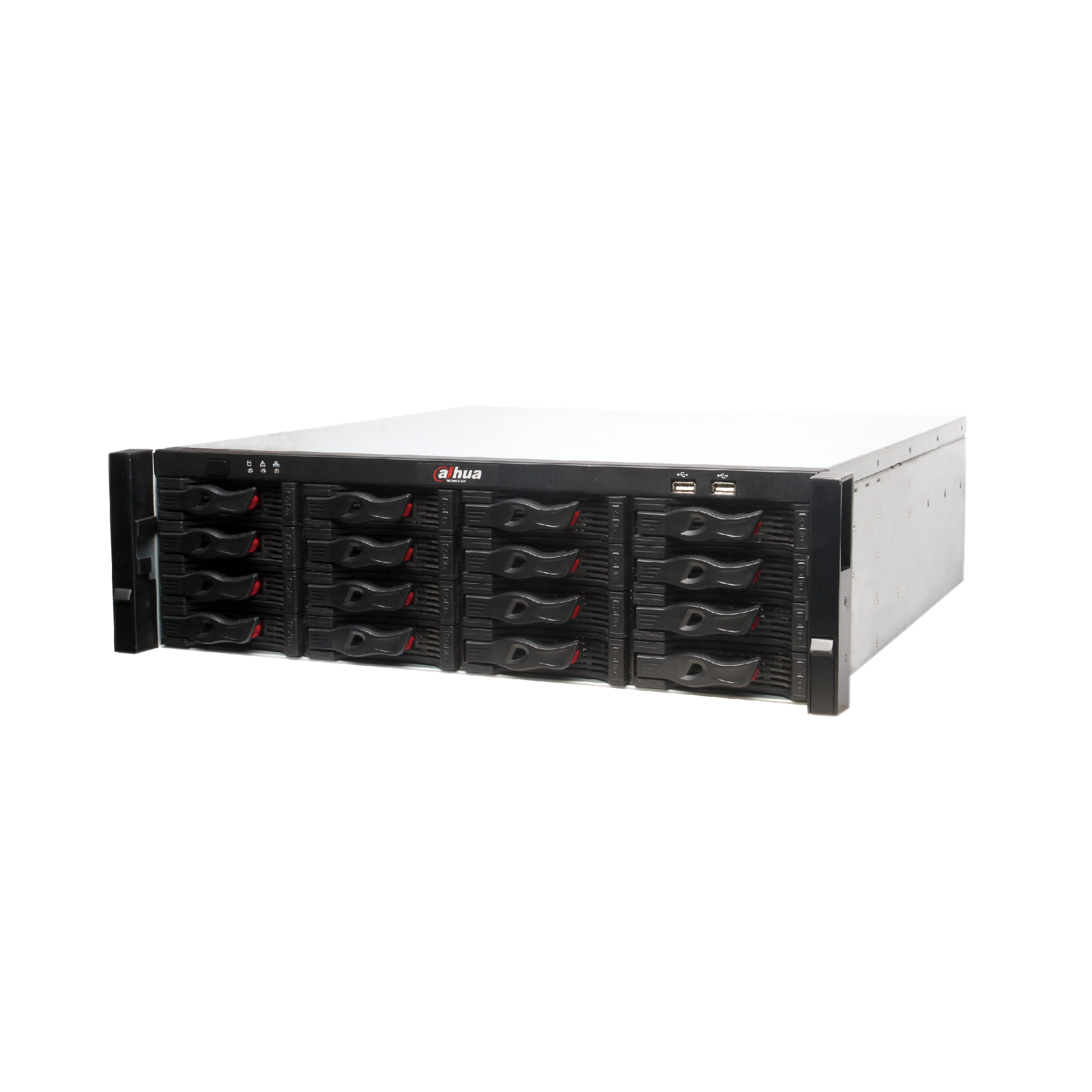

Dahua 64-Channel 3U STAT 3.5" (0/16) NVR
Item No:
559076
MPN:
NVR616R-64-4KS2
$6,470.59
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Dahua Technology Ultra NVR616R-64-4KS2, 64 channels, 3840 x 2160 pixels, 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 768, 20000 Kbit/s, 64 Mbit/s, 128 Mbit/s
System Overview
Dahua's next generation network video recorder offers unparalleled recording technology for IP video surveillance applications. For applications where details are critical for identification, this enterprise-level NVR provides a powerful Intel processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage.
This NVR is ideal for a wide range of applications such as public safety, transportation stations, government institutions, hotel resorts, shopping malls, city centers, and financial institutions, where demand expansion flexibility, high reliability and centralized storage management.
The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.
Functions
RAID 0/1/5/6/10/50/60
Offering a balance between storage performance, storage capacity, and data integrity, the NVR features Fruitfull RAID 0/1/5/6/10/50/60 for faster and safer recording.
Fisheye Dewarping
The NVR features multiple fisheye dewarping modes to make viewing video easy whether its live or during playback.
N+M Hot Standby
The highly reliable redundancy N+M Hot Standby design provides a secure, failover technique ensuring immediate backup. In the event of a system failure, the slave instantly takes over the master ensuring no data is lost.
4K Resolution
The NVR supports 4K ultra HD resolution (3840 x 2160) for recording, live viewing and playback.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the NVR has the ability to detect and analyze moving objects for improved video surveillance. The NVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, People Counting, ideal for business intelligence, and Facial Detection, for searching or identification of individuals.
Heat Map
The NVR's Heat Map option highlights the areas with the highest concentration of people. This information can then be exported into a customized report to assist in business or forensic analysis.
Point of Sale (POS)
Ideal for grocery and retail stores, the optional POS solution allows the NVR to receive a POS transaction via corresponding video. This feature allows merchants to analyze specific transactions via the Fuzzy search Algorithm.
Smart Tracking
The auto tracking PTZ feature automatically tracks a moving target throughout the camera's field of view. This function is ideal for following an object as it moves through airports, parking lots, city centers, or other applications.
ANR (Automatic Network Replenishment Technology)
Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it.
Dahua's next generation network video recorder offers unparalleled recording technology for IP video surveillance applications. For applications where details are critical for identification, this enterprise-level NVR provides a powerful Intel processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage.
This NVR is ideal for a wide range of applications such as public safety, transportation stations, government institutions, hotel resorts, shopping malls, city centers, and financial institutions, where demand expansion flexibility, high reliability and centralized storage management.
The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.
Functions
RAID 0/1/5/6/10/50/60
Offering a balance between storage performance, storage capacity, and data integrity, the NVR features Fruitfull RAID 0/1/5/6/10/50/60 for faster and safer recording.
Fisheye Dewarping
The NVR features multiple fisheye dewarping modes to make viewing video easy whether its live or during playback.
N+M Hot Standby
The highly reliable redundancy N+M Hot Standby design provides a secure, failover technique ensuring immediate backup. In the event of a system failure, the slave instantly takes over the master ensuring no data is lost.
4K Resolution
The NVR supports 4K ultra HD resolution (3840 x 2160) for recording, live viewing and playback.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the NVR has the ability to detect and analyze moving objects for improved video surveillance. The NVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, People Counting, ideal for business intelligence, and Facial Detection, for searching or identification of individuals.
Heat Map
The NVR's Heat Map option highlights the areas with the highest concentration of people. This information can then be exported into a customized report to assist in business or forensic analysis.
Point of Sale (POS)
Ideal for grocery and retail stores, the optional POS solution allows the NVR to receive a POS transaction via corresponding video. This feature allows merchants to analyze specific transactions via the Fuzzy search Algorithm.
Smart Tracking
The auto tracking PTZ feature automatically tracks a moving target throughout the camera's field of view. This function is ideal for following an object as it moves through airports, parking lots, city centers, or other applications.
ANR (Automatic Network Replenishment Technology)
Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it.
| Performance | |
| Video input channels The number of channels for video input that the device features. | 64 channels |
| Alarm input channels | 16 |
| Alarm output channels | 8 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Supported resolutions | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 768 |
| Bit rate | 20000 Kbit/s |
| Data transfer rate (single HDD mode) | 64 Mbit/s |
| Data transfer rate (RAID 5 mode) | 128 Mbit/s |
| Number of users The number of people that use or can use this product. | 128 user(s) |
| Two-way talk |
 |
| People counting |
|
| Video motion detection |
|
| Number of motion detection zones | 396 |
| Video loss detection |
|
| Multi-screen |
|
| On Screen Display (OSD) |
|
| Video formats supported The type of video formats that can be used by this device. | H.264,H.265,M-JPEG |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Embedded LINUX |
| Backup function The function if the main power source fails. |
|
| PTZ control |
|
| Snapshot |
|
| Playback modes | Backup selection, Digital zoom, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Speed Adjust, Stop |
| Playback controls |
|
| Throughput data rate | 384 Mbit/s |
| Recording modes The different ways in which this device can record. | Holiday, Manual, Schedule, Stop |
| Recording time | 120 min |
| Face detection |
|
| Storage | |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 16 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 96 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | Serial ATA III |
| RAID support The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. |
|
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,5,6,10 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| HDMI output The device features an HDMI output. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| External mini-SAS ports | 1 |
| eSATA ports quantity The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. | 1 |
| SATA revision | 3.0 |
| Internal SATA ports quantity | 16 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| RS-485 ports | 1 |
| RS-232 interface |
|
| eSATA |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP |
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 3U |
| Brand compatibility What other brands this brand can be used with. | Any brand |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Compatible products Other products that can be used with this product. | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek |
| Certification | CE, FCC, EN55022, EN55024, EN50130-4, EN60950-1, Part 15 Subpart B, ANSI C63.4-2014 |
| Processor | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 51 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| System requirements | |
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android, iOS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 485 mm |
| Depth The distance from the front to the back of something. | 512.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 133.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 17.6 kg |
| Package weight Weight of the packaged product. | 27 kg |
| SKU | 559076 |
| MPN | NVR616R-64-4KS2 |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
