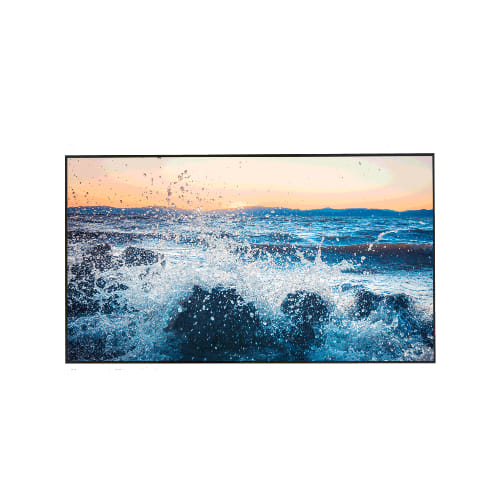

Dahua Technology LDH55-HAI400K, 139.7 cm (55"), LED, 3840 x 2160 pixels, 700 cd/m 2, 4K Ultra HD, 16:9
Dahua 55' Wall-mounted Digital Signage 700nits, 4K UHD (3840x2160), Landscape/Portrait, 16/7, Android OS, VESA 400mm
Features1/4
High quality panel, industrial-grade design, full metal casing.
700 nits high brightness display, perfect image effect.
Dahua MPS platform provides unified remote management for system integrators and media operators.
Strong 4 core processor provides powerful decoding capabilities, enabling premium display performance.
Multiple installation modes satisfy a broad range of project requirements.
Features1/4
High quality panel, industrial-grade design, full metal casing.
700 nits high brightness display, perfect image effect.
Dahua MPS platform provides unified remote management for system integrators and media operators.
Strong 4 core processor provides powerful decoding capabilities, enabling premium display performance.
Multiple installation modes satisfy a broad range of project requirements.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 139.7 cm (55") |
| Display technology The technology used in the display e.g. plasma, LED. | LED |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3840 x 2160 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 700 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 8 ms |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 1.07 billion colours |
| Panel life The length of time that the panel can be used for. | 30000 h |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI input ports quantity | 1 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
|
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB ports quantity | 2 |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| PC Audio in The socket (port) for the PC audio input. |
|
| RS-232 interface |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of built-in speakers | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 10 W |
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 400 x 400 mm |
| Performance | |
| Purpose What the product is used for. | Universal |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 180 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | |
| Computer system |
|
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | ARM Cortex |
| Processor model The model number for the processor in a computer. | A17 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1.8 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 2 GB |
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 16 GB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Android 8.1 |
| Video formats supported The type of video formats that can be used by this device. | ASF,AVI,MKV,MOV,MP4,WMV |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | MP3,WAV,WMA |
| Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg). | BMP, GIF, JPEG, JPG, PNG |
| Weight & dimensions | |
| Display width | 1230.8 mm |
| Display depth | 58.3 mm |
| Display height | 701.8 mm |
| Display weight | 18 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 1360 mm |
| Package depth The distance from the front to the back of the packaging. | 165 mm |
| Package height The distance from the top to the bottom of the packaging. | 830 mm |
| Package weight Weight of the packaged product. | 25.8 kg |
| Packaging content | |
| Cables included | AC |
| Mounting kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| SKU | 558635 |
| MPN | DHI-LDH55-HAI400K |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 55.00 Inch |
| Refresh Rate (Hz) | 60Hz |
| Screen Resolution | 3840x2160 (UHD/4K) |
| Input | HDMI |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dahuasecurity.com/ |
