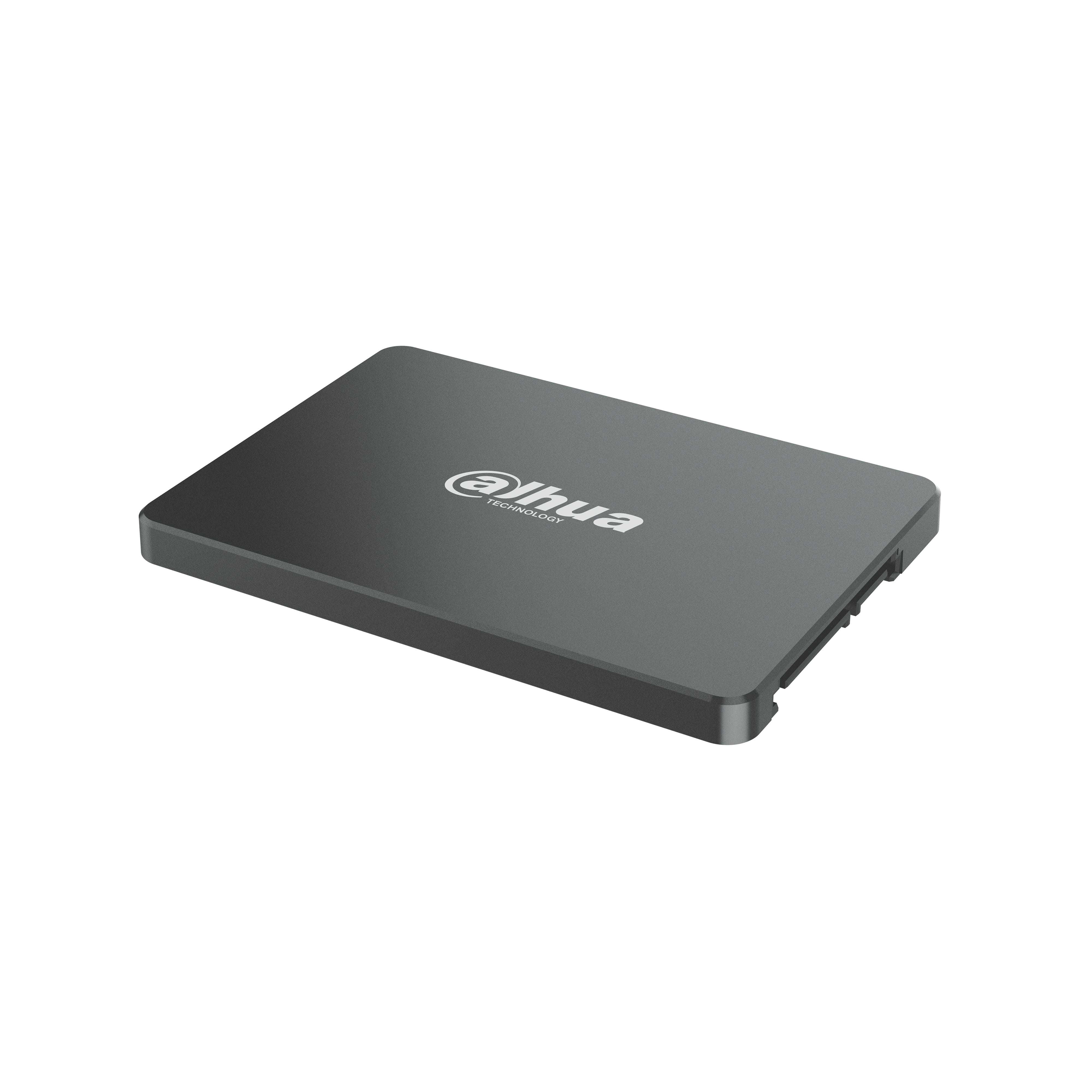

Dahua Technology SSD-S820GS512G, 512 GB, 2.5"
S820 Series 2.5" SATA Solid State Drive
System Overview
As a new generation of 2.5" SSD product launched by Dahua, S820 series adopts high-quality 3D NAND wafer level chip and high-performance controller. It is specially designed for vehicle monitoring system and improve response speed of car DVR. The S820 improves performance in processing data, and effectively deals with various special conditions in vehicle monitoring such as data flow and full coverage.
Scene
Supports mobile data terminal for vehicles with 2.5" SATA ports.
System Overview
As a new generation of 2.5" SSD product launched by Dahua, S820 series adopts high-quality 3D NAND wafer level chip and high-performance controller. It is specially designed for vehicle monitoring system and improve response speed of car DVR. The S820 improves performance in processing data, and effectively deals with various special conditions in vehicle monitoring such as data flow and full coverage.
Scene
Supports mobile data terminal for vehicles with 2.5" SATA ports.
| Features | |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| SSD capacity The Solid State Drive's data storage capacity. | 512 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Serial ATA |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D NAND |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC |
| Hardware encryption |
|
| Random read (4KB) | 43 IOPS |
| Random write (4KB) | 82 IOPS |
| Sequential read speed (ATTO) | 530 MB/s |
| Sequential write speed (ATTO) | 460 MB/s |
| S.M.A.R.T. support |
 |
| TRIM support |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1500000 h |
| TBW rating | 1000 |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 2.2 W |
| Power consumption (average) | 0.48 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Vibration resistance | 2.78 G |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100.2 mm |
| Depth The distance from the front to the back of something. | 69.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 40 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 140.5 mm |
| Package depth The distance from the front to the back of the packaging. | 105.5 mm |
| Package height The distance from the top to the bottom of the packaging. | 15.5 mm |
| SKU | 773996 |
| MPN | DHI-SSD-S820GS512G |
| Brand | Dahua |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dahuasecurity.com/ |
