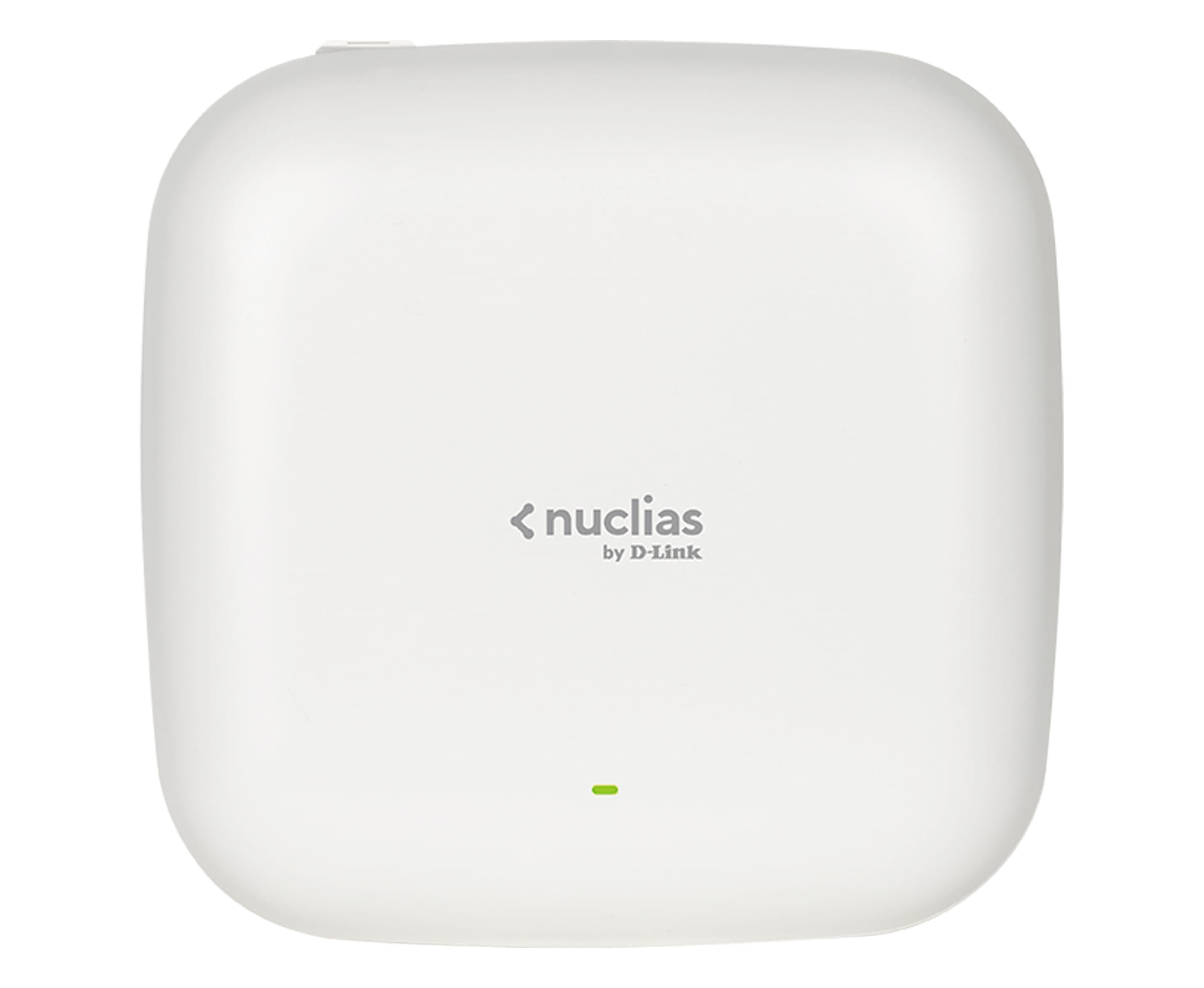

D-Link DBA-X1230P, 575 Mbit/s, 1200 Mbit/s, 10,100,1000 Mbit/s, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3ab,IEEE..., Multi User MIMO, 23 dBm
Dual-Band Wi-Fi That Boosts Business Performance
With the DBA-X1230P by your side, it s all systems go. It is fully prepared to handle all day-to-day demands of SMBs. Equipped with Wi-Fi 6, there are massive performance improvements, as well as all the features of 11ac now available for the 2.4 GHz band too. Turbocharged speeds, plenty of bandwidth and simple central management make it the ultimate booster in productivity.
Beamforming Ensures Consistent Coverage, Even on The Move
Beamforming technology continuously optimizes the wireless signal, focusing it towards receiving devices and following them. This adaptive beamforming enhances spectral efficiency and link quality. Finally, with 2 x 2 MU-MIMO with two spatial streams, it slices through congestion offering all users a better Wi-Fi experience. Ideal for busy offices or places with users often on the move.
No-Wait Wi-Fi Even at Peak Time with MU-MIMO
Equipped with the latest 802.11ax MU-MIMO technology and 1800 Mbps throughput, delivering exceptional connectivity to more users and devices just got a lot easier. Your network will not balk, even at the busiest of times.
Hails The End of Slow Business
The DBA-X1230P is empowered with next generation Wi-Fi 6. Enhanced MU-MIMO with even more uplink and downlink streams serves more devices simultaneously. OFDMA dramatically increases transmission efficiency and 1024-QAM packs even more data bringing unadulterated speed increases of a searing 25%.
Wi-Fi 6 leverages all these features and more to create Wi-Fi with unparalleled performance.
Form Without Sacrificing Function
It can be hard to look good while still being functional. Yet the DBA-Series strikes the balance just right.
The smooth case in crisp white makes for an elegant design that can effortlessly fit into any setting.
Your Guests Online in No Time with a Captive Portal
With your dual-band Wi-Fi up and running, it is time to get everyone connected. A captive portal is an immensely easy method for getting users online quickly. Simplify further with Social Login so guests can get online whichever way suits them best.
And not only does it also increase brand recognition, but businesses can collect valuable data to better understand users.
Hit the Ground Running with Zero Touch Provisioning
The DBA-X1230P Nuclias Cloud-Managed Switch Series is deployed as a pre-managed, zero-configuration access point. No need to send out your most experienced engineer for every installation. With Nuclias' Zero-Touch Deployment, you can power-up the access points on site, plug them in, and remotely set up and manage them through Nuclias Cloud.
Complete Control over your Network s Access
Complete control comes as standard with the DBA-X1230P. Combined with the Nuclias Cloud management software, a variety of the latest in network security and management tools are at your fingertips. You can rest assured that the best of the best are hard at work keeping your network protected and hitch free.
Peak Performance and Discreet Deployment with Power over Ethernet (PoE)
The DBA-X1230P s Power over Ethernet function allows for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.
With the DBA-X1230P by your side, it s all systems go. It is fully prepared to handle all day-to-day demands of SMBs. Equipped with Wi-Fi 6, there are massive performance improvements, as well as all the features of 11ac now available for the 2.4 GHz band too. Turbocharged speeds, plenty of bandwidth and simple central management make it the ultimate booster in productivity.
Beamforming Ensures Consistent Coverage, Even on The Move
Beamforming technology continuously optimizes the wireless signal, focusing it towards receiving devices and following them. This adaptive beamforming enhances spectral efficiency and link quality. Finally, with 2 x 2 MU-MIMO with two spatial streams, it slices through congestion offering all users a better Wi-Fi experience. Ideal for busy offices or places with users often on the move.
No-Wait Wi-Fi Even at Peak Time with MU-MIMO
Equipped with the latest 802.11ax MU-MIMO technology and 1800 Mbps throughput, delivering exceptional connectivity to more users and devices just got a lot easier. Your network will not balk, even at the busiest of times.
Hails The End of Slow Business
The DBA-X1230P is empowered with next generation Wi-Fi 6. Enhanced MU-MIMO with even more uplink and downlink streams serves more devices simultaneously. OFDMA dramatically increases transmission efficiency and 1024-QAM packs even more data bringing unadulterated speed increases of a searing 25%.
Wi-Fi 6 leverages all these features and more to create Wi-Fi with unparalleled performance.
Form Without Sacrificing Function
It can be hard to look good while still being functional. Yet the DBA-Series strikes the balance just right.
The smooth case in crisp white makes for an elegant design that can effortlessly fit into any setting.
Your Guests Online in No Time with a Captive Portal
With your dual-band Wi-Fi up and running, it is time to get everyone connected. A captive portal is an immensely easy method for getting users online quickly. Simplify further with Social Login so guests can get online whichever way suits them best.
And not only does it also increase brand recognition, but businesses can collect valuable data to better understand users.
Hit the Ground Running with Zero Touch Provisioning
The DBA-X1230P Nuclias Cloud-Managed Switch Series is deployed as a pre-managed, zero-configuration access point. No need to send out your most experienced engineer for every installation. With Nuclias' Zero-Touch Deployment, you can power-up the access points on site, plug them in, and remotely set up and manage them through Nuclias Cloud.
Complete Control over your Network s Access
Complete control comes as standard with the DBA-X1230P. Combined with the Nuclias Cloud management software, a variety of the latest in network security and management tools are at your fingertips. You can rest assured that the best of the best are hard at work keeping your network protected and hitch free.
Peak Performance and Discreet Deployment with Power over Ethernet (PoE)
The DBA-X1230P s Power over Ethernet function allows for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| MIMO |
|
| MIMO type | Multi User MIMO |
| Flow control support |
|
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 22 dBm |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | SSID,WPA2,WPA3-Enterprise |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) |
|
| Management features | |
| Firmware upgradeable |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Input voltage The voltage (V) which is required to power the product. | 12 V |
| Input current | 1.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 14 W |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 16 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators | Power |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 4 dBi |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability certificates | CE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 170 mm |
| Depth The distance from the front to the back of something. | 42.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 170 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 484 g |
| Packaging data | |
| Mounting kit |
|
| SKU | 541892 |
| MPN | DBA-X1230P |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
