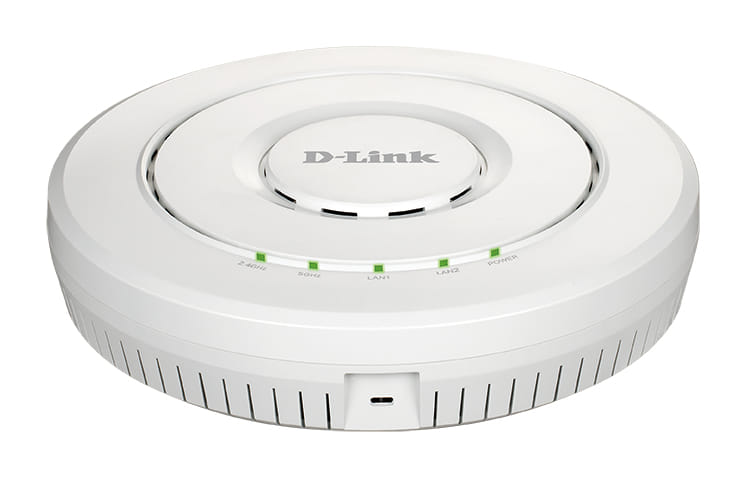

D-Link Wireless Access Point 2533 Mbit/s Power over Ethernet White

Item No:
440543
MPN:
DWL-8620AP
$899.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store
D-Link DWL-8620AP, 2533 Mbit/s, 800 Mbit/s, 1733 Mbit/s, 10,100,1000 Mbit/s, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.1s,IEEE..., AES,TKIP,WPA,WPA-Enterprise,WPA2,WPA2-Enterprise
Enjoy Faster Business with Wave 2
The DWL-8620AP is designed for medium to large-scale Wi-Fi networks, delivering fast Wave 2 wireless speeds. It's highly manageable, it fits into any existing network, and can be scaled to meet future wireless demands.

Greater Speeds and Reliable Connectivity
Utilise the full potential of 802.11ac Wave 2. Provide faster connectivity with combined data rates of up to 2.5GBps2.

It also supports Link Aggregation, which allows two Gigabit Ethernet ports to be linked together to act as a single port to double the available bandwidth and maximise the access point's overall throughput.

Increase Network Efficiency
The DWL-8620AP's 4 x 4 MU-MIMO takes full advantage of all streams to serve more wireless clients, dramatically improving wireless performance.

MU-MIMO (Multi-User Multiple Input Multiple Output) simultaneously communicates with multiple clients using multiple antennas. This allows the access point to utilise the spectrum more efficiently and significantly increase the network capacity.

Rapid Deployments
It can be ceiling mounted or wall mounted to provide the best wireless coverage. The built-in Power over Ethernet (PoE) port makes deployments faster and means it can be installed in areas without power outlets.

Robust Management
When working in conjunction with D-Link Unified Wireless Controllers (DWC-1000, and DWC-2000), multiple DWL-8620AP units in the Wi-Fi network can be easily and efficiently centrally managed.

Automatic Radio Frequency (RF) Management
Radio Frequency (RF) resource management allows wireless coverage to be managed automatically, providing the best possible coverage for wireless clients.

When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When the DWL-8620AP senses a neighbouring AP nearby, it will automatically select a non-interfering channel.

This greatly reduces RF interference and allows you to deploy APs more densely. To further minimise interference, when a nearby AP is on the same channel, the DWL-8620AP will automatically adjust its transmission power. If an AP goes down, others will increase their transmission power to expand coverage.

Band Steering
It places clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads speeds.

Airtime Fairness
Ensures equal airtime given to each client. Increases performance even if slower devices are connected.

802.11k Fast Roaming
Allows the wireless client to roam seamlessly between access points.

802.1p Quality of Service (QoS)
Supports 802.1p QoS for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP.

Wi-Fi Multimedia (WMM)
In the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic.
Features
2.4 GHz
5 GHz
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. 2533 Mbit/s
Maximum data transfer rate (2.4 GHz) 800 Mbit/s
Maximum data transfer rate (5 GHz) 1733 Mbit/s
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 10,100,1000 Mbit/s
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.1s,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u
Automatic channel selection
MIMO
Wi-Fi Multimedia (WMM)/(WME)
Fast roaming
Band steering
Airtime Fairness (ATF)
Quality of Service (QoS) support
Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. AES,TKIP,WPA,WPA-Enterprise,WPA2,WPA2-Enterprise
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Number of SSID supported 32
Auto Wireless Distribution System (WDS)
Protocols
Management protocols SNMP v1/v2c/v3
Management features
Command-line interface (CLI)
Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 2
DC-in jack The socket/plug where the DC electricity supply connects to the device.
Power
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Input voltage The voltage (V) which is required to power the product. 12 V
Input current 2.5 A
Power consumption (max) The maximum amount of power used by the device. 24.24 W
Design
Product colour The colour e.g. red, blue, green, black, white. White
Housing material What the casing of the product is made of. Plastic
Certification CE,
Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal. Internal
Antenna direction type Omni-directional
Antennas quantity 2
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. 4 dBi
Operational conditions
Operating relative humidity (H-H) 0 - 40%
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. -20 - 65 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. 10 - 90 °C
Storage relative humidity (H-H) 5 - 95%
Technical details
Shipping (inner) case length 44.9 cm
Shipping (inner) case width 31.2 cm
Shipping (inner) case height 32.8 cm
Shipping (inner) case gross weight 8.2 kg
Shipping (inner) case net weight 7.33 kg
Quantity per shipping (inner) case 5 pc(s)
Pallet gross weight (air) 222.3 kg
Number of cartons per pallet (air) 24
Quantity per pallet (air) 120 pc(s)
Pallet length 110 cm
Pallet width 120 cm
Pallet height (air) 144.7 cm
Pallet gross weight (sea) 272 kg
Number of cartons per pallet (sea) 30
Quantity per pallet (sea) 150 pc(s)
Pallet height (sea) 177.5 cm
Weight & dimensions
Width The measurement or extent of something from side to side. 220 mm
Depth The distance from the front to the back of something. 220 mm
Height The measurement of the product from head to foot or from base to top. 47 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 790 g
Packaging data
Number of products included The number of products that are included in the package. 1 pc(s)
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Package width The distance from one side of the packaging to the other. 295 mm
Package depth The distance from the front to the back of the packaging. 296 mm
Package height The distance from the top to the bottom of the packaging. 94 mm
Package weight Weight of the packaged product. 1.47 kg
More Information
SKU 440543
MPN DWL-8620AP
Brand D-Link
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Product Use General
Warranty Period 3 Years Warranty
Warranty Contact https://www.dlink.com.au/
