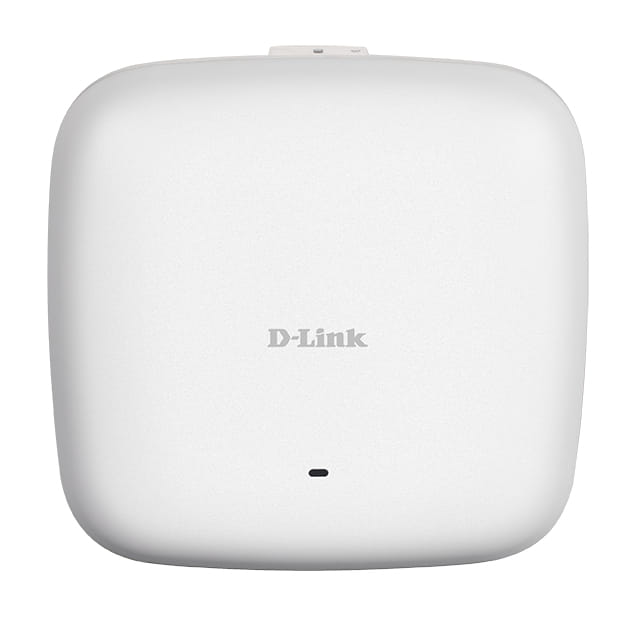

D-Link DAP-2680, 1750 Mbit/s, 2.4 - 2.4835; 5.15 - 5.35; 5.47 - 5.85 GHz, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3ab,IEEE 802.3at,IEEE..., 26.5 dBmW, 64-bit WEP,128-bit WEP,SNMP,SNMPv3,SSH,SSID,SSL/TLS,WPA,WPA-Enterprise,WPA2,WPA2-Enterprise, 12 V
The DAP '2680 Wireless AC1750 Wave 2 Dual 'Band PoE Access Point features cutting 'edge Wave 2 technology that brings greater speeds, efficiency, and security to your wireless customers. Perfect for small to medium business or enterprise environments.
Be the best with Wave 2
Boost your business network to maximum wireless signal rates of up to 450 Mbps over the 2.4 GHz band, and 1300 Mbps over the 5 GHz band.
Beamforming with MU 'MIMO
Beamforming focuses the Wi-Fi signal to improve both range and connection strength so your clients can enjoy a superior Wi-Fi experience. Built-in Multiple-Input and Multiple-Output (MU-MIMO) technology gets high-bandwidth Wi-Fi signals to multiple devices simultaneously, for faster data distribution and efficiency.
The Perfect Fit for Your Network
Multiple operational modes allow you to select the DAP-2680 to operate as an access point, a Wireless Distribution System (WDS), a WDS with access point, or a wireless client.
Business Quality of Service
The Wi-Fi Multimedia (WMM) and Quality of Service (QoS) features make it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2680 to automatically prioritise network traffic. Customised priority rules can be adjusted through the web GUI. AP Load Balancing limits the maximum number of users per access point to ensure maximum performance.
Easy 'mount setup
It can be ceiling mounted, wall mounted or placed on a desk. Integrated 802.3at Power over Ethernet (PoE) enables the device to be deployed easily and in more areas, where power outlets are not readily available.
Corporate 'Class Security
Secure your business network with Personal and Enterprise versions WPA2 (802.11i), with support for RADIUS server backend or a built 'in internal RADIUS server. MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling further protect your wireless network.
It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. Includes a wireless client isolation mechanism, which limits direct client-to-client communication. Additionally, it supports Network Access Protection (NAP), a feature of Windows Server 2008 and upwards, allowing network administrators to define multiple levels of network access based on an individual client's needs.
D 'Link WiFiManager
Control from a central location up to a thousand access points anywhere in the world, with easy-to-use management controls.
Reveal compelling insights into your business network, push out configurations and organise your network so it always runs at optimal performance.
Guaranteed round 'the 'cloud tech response, even on weekends & bank holidays
Protect your network uptime with optional rapid-response tech support, designed to ensure businesses get the best fit solution for their unique environment. Our warranties and extended service packages reduce downtime, extend the lives of the products, and maximise your up-time by solving technical problems quickly and effectively.
Be the best with Wave 2
Boost your business network to maximum wireless signal rates of up to 450 Mbps over the 2.4 GHz band, and 1300 Mbps over the 5 GHz band.
Beamforming with MU 'MIMO
Beamforming focuses the Wi-Fi signal to improve both range and connection strength so your clients can enjoy a superior Wi-Fi experience. Built-in Multiple-Input and Multiple-Output (MU-MIMO) technology gets high-bandwidth Wi-Fi signals to multiple devices simultaneously, for faster data distribution and efficiency.
The Perfect Fit for Your Network
Multiple operational modes allow you to select the DAP-2680 to operate as an access point, a Wireless Distribution System (WDS), a WDS with access point, or a wireless client.
Business Quality of Service
The Wi-Fi Multimedia (WMM) and Quality of Service (QoS) features make it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2680 to automatically prioritise network traffic. Customised priority rules can be adjusted through the web GUI. AP Load Balancing limits the maximum number of users per access point to ensure maximum performance.
Easy 'mount setup
It can be ceiling mounted, wall mounted or placed on a desk. Integrated 802.3at Power over Ethernet (PoE) enables the device to be deployed easily and in more areas, where power outlets are not readily available.
Corporate 'Class Security
Secure your business network with Personal and Enterprise versions WPA2 (802.11i), with support for RADIUS server backend or a built 'in internal RADIUS server. MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling further protect your wireless network.
It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. Includes a wireless client isolation mechanism, which limits direct client-to-client communication. Additionally, it supports Network Access Protection (NAP), a feature of Windows Server 2008 and upwards, allowing network administrators to define multiple levels of network access based on an individual client's needs.
D 'Link WiFiManager
Control from a central location up to a thousand access points anywhere in the world, with easy-to-use management controls.
Reveal compelling insights into your business network, push out configurations and organise your network so it always runs at optimal performance.
Guaranteed round 'the 'cloud tech response, even on weekends & bank holidays
Protect your network uptime with optional rapid-response tech support, designed to ensure businesses get the best fit solution for their unique environment. Our warranties and extended service packages reduce downtime, extend the lives of the products, and maximise your up-time by solving technical problems quickly and effectively.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1750 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 2.4835; 5.15 - 5.35; 5.47 - 5.85 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u |
| Transmitting power | 26.5 dBmW |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP,128-bit WEP,SNMP,SNMPv3,SSH,SSID,SSL/TLS,WPA,WPA-Enterprise,WPA2,WPA2-Enterprise |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Output voltage | 12 V |
| Output current | 2 A |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Table,Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators | power, Status |
| Certification | FCC, UL, CE, FCC, UL |
| Internal The product is built in. |
 |
| Antenna | |
| Antennas quantity | 3 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 4.2 dBi |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Shipping (inner) case length | 59.9 cm |
| Shipping (inner) case width | 29.3 cm |
| Shipping (inner) case height | 24 cm |
| Shipping (inner) case gross weight | 6.05 kg |
| Shipping (inner) case net weight | 3.44 kg |
| Quantity per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 311.4 kg |
| Number of cartons per pallet (air) | 48 |
| Quantity per pallet (air) | 240 pc(s) |
| Pallet length | 110 cm |
| Pallet width | 120 cm |
| Pallet height (air) | 2.06 m |
| Pallet gross weight (sea) | 311.4 kg |
| Number of cartons per pallet (sea) | 48 |
| Quantity per pallet (sea) | 240 pc(s) |
| Pallet height (sea) | 2.06 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 190 mm |
| Depth The distance from the front to the back of something. | 190 mm |
| Height The measurement of the product from head to foot or from base to top. | 44.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 580 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 205 mm |
| Package depth The distance from the front to the back of the packaging. | 270 mm |
| Package height The distance from the top to the bottom of the packaging. | 112 mm |
| Package weight Weight of the packaged product. | 1.08 kg |
| SKU | 440072 |
| MPN | DAP-2680 |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
