Shipping Information
- ETA 16/05/2025 for shipping
- Pre-order available, shipping ETA 16/05/2025
Store Availability
- ETA 16/05/2025 at Bankstown Store
- ETA 16/05/2025 at Castle Hill Store
- ETA 16/05/2025 at Northmead Store
Shipping Estimate
D-Link DNR8P-8MP-4TB, Wired, Turret, RJ-45, Indoor/outdoor, 2.8 mm, 105Deg
Reliable, Rugged 24-Hour Surveillance Solutions with Advanced Features that Safeguard Your Business

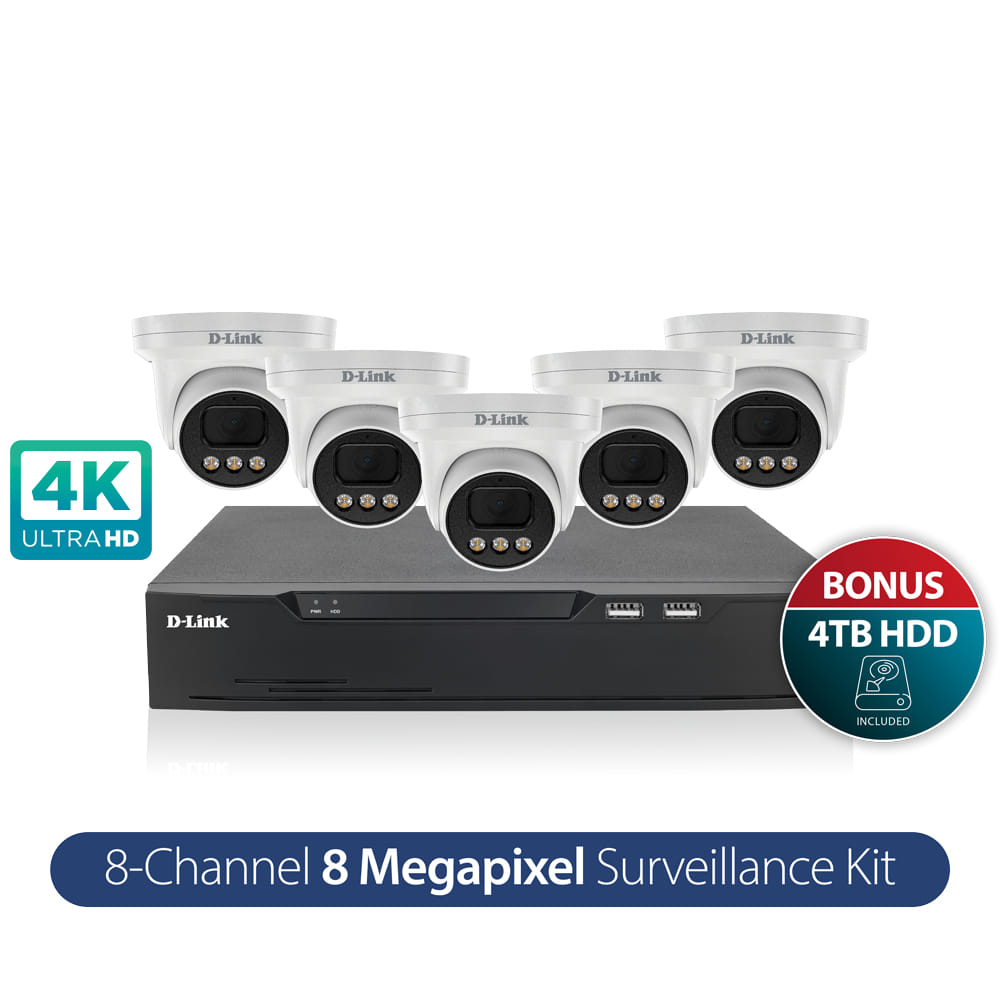

The DNR8P-8MP-4TB Vigilance Surveillance Kit includes 5 x DCS-F4808E Vigilance 8-Megapixel Vandal-Proof Outdoor Dome Cameras, as well as an 8 Channel AI-Enabled NVR, offering a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The Cameras use a high-sensitivity 8-megapixel progressive scan CMOS sensor to deliver truly superior quality video, day and night. With an all-in-one rugged design, the DCS-F4808E cameras can be deployed reliably without the need for additional accessories.
Crystal-Clear Footage in High Definition
Crisp 4K, 8 megapixel* video gives you a clear view of what
The DNR8P-8MP-4TB Vigilance Surveillance Kit includes 5 x DCS-F4808E Vigilance 8-Megapixel Vandal-Proof Outdoor Dome Cameras, as well as an 8 Channel AI-Enabled NVR, offering a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The Cameras use a high-sensitivity 8-megapixel progressive scan CMOS sensor to deliver truly superior quality video, day and night. With an all-in-one rugged design, the DCS-F4808E cameras can be deployed reliably without the need for additional accessories.
Crystal-Clear Footage in High Definition
Crisp 4K, 8 megapixel* video gives you a clear view of what
| Camera | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Camera included This product includes a camera. |
 |
| Colour The main colour of the product. |
|
| Surveillance camera form factor Design of the surveillance (security) camera. | Turret |
| Built-in microphone Microphone that is found inside the product. |
|
| Camera interface The place where the camera connects to other devices e.g. USB port. | RJ-45 |
| Heat function This product has a mode to produce heat. |
 |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor/outdoor |
| Fixed focal length | 2.8 mm |
| Maximum aperture number | 2 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 105° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 56° |
| Number of cameras The quantity of cameras that product can support. | 5 |
| Night mode |
|
| Rotating Capability to rotate device. |
|
| Night vision distance | 20 m |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.7 mm (1 / 2.7") |
| LED type | IR |
| Camera resolution Amount of data measured in pixels that the product captures to form the image | 3840 x 2160 pixels |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | Auto |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/5 - 1/20000 s |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 8 MP |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Weatherproof |
|
| Recorder | |
| Recorder included The product includes a recorder. |
|
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 8 channels |
| Storage media type Type of storage medium, like flash, hard disk drive, etc. | HDD |
| Total storage capacity The total amount of data that can be stored on the device. | 4 TB |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 12 TB |
| Frame rate | 30 fps |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Audio input The type of audio input that the device requires, and the connection needed. | 1 - AUX |
| Audio output The type of audio output that the device produces, and the connector(s). | 1 - AUX |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 3 |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA |
| Number of HDDs installed The number of hard drives built into the device. | 1 |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 4 TB |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Maximum HDD capacity | 12 TB |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 72 W |
| Graphical user interface (GUI) |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Power | |
| Power source type What the power source is. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 48 |
| Power consumption (max) The maximum amount of power used by the device. | 90 W |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Camera operating temperature (T-T) | -40 - 60 °C |
| Camera operating relative humidity (H-H) | 0 - 90% |
| Recorder operating temperature (T-T) | 0 - 50 °C |
| Recorder operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Remote viewing |
|
| Video compression formats | H.264, H.265, H.265+ |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC, G.711 |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Reset button |
|
| Weight & dimensions | |
| Camera width | 11.8 cm |
| Camera depth | 11.8 cm |
| Camera height | 9.4 cm |
| Camera weight | 550 g |
| Recorder width | 25.5 cm |
| Recorder height | 4.75 cm |
| Recorder weight | 1 kg |
| SKU | 776717 |
| MPN | DNR8P-8MP-4TB |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
