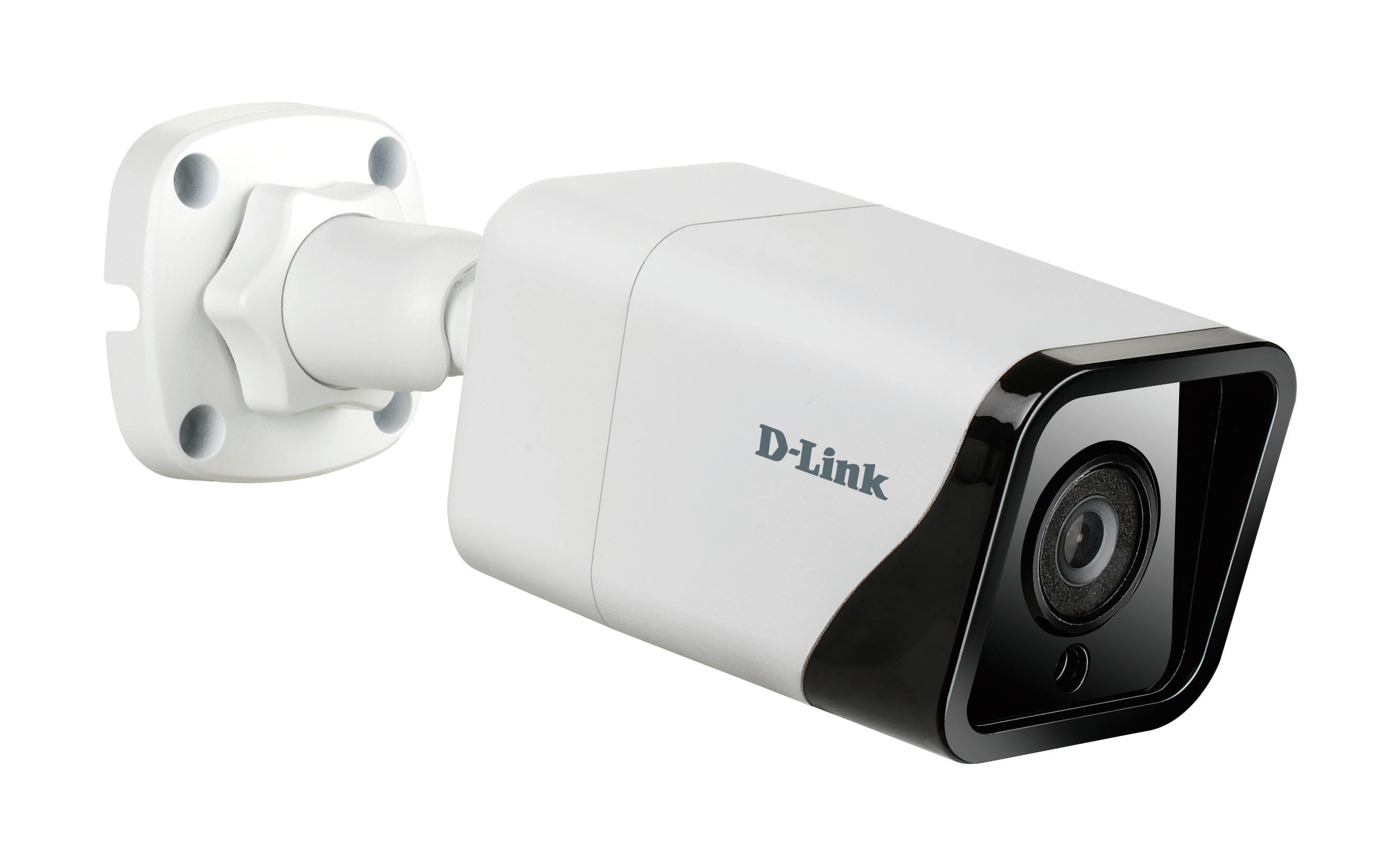

D-Link Vigilance 4 Megapixel H.265 Outdoor Bullet Camera, IP security camera, Indoor & outdoor, Wired, CE, FCC, RCM, Box, Ceiling/wall
Professional Surveillance in High Definition
A 4 Megapixel lens and state-of-the-art image enhancement features are packed into a compact form factor that s ready to face the outdoors.
4MP HD Resolution
4-megapixel sensor with High Definition resolution up to 2592 x 1520 for detailed footage
Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 DegC
Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas
Wide Dynamic Range
Improved image quality in high-contrast conditions with WDR
PoE Capable
Supports 802.3af PoE for flexible and simple installation
Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.
LowLight+
Optimised for increased image quality in low-light environments
Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive
High quality videos, whatever the lighting
Video resolutions of up to 2592 x 1520 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions.
Viewing Angles
(H) 100 Deg
(V) 58 Deg
(D) 126 Deg
18x Digital Zoom
Zoom in to see more details in areas of interest
Versatile Monitoring in All Environments.
The IP66-rated water and dust-resistant design make this camera ideal for deployment in all weather conditions. The adjustable mount allows the camera to be quickly and easily positioned to get the best field of view.
Weather-resistant
Withstands rain and moisture, with a wide operating temperature range of -30 DegC to 50 DegC.
Optimising Bandwidth and Storage
To maximise bandwidth efficiency and improve image quality, the DCS-4714E provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting three separate profiles for simultaneous video streaming and recording.
Flexible Connectivity
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.
Optional recording to an NVR, VMS or NAS system
Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.
A 4 Megapixel lens and state-of-the-art image enhancement features are packed into a compact form factor that s ready to face the outdoors.
4MP HD Resolution
4-megapixel sensor with High Definition resolution up to 2592 x 1520 for detailed footage
Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 DegC
Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas
Wide Dynamic Range
Improved image quality in high-contrast conditions with WDR
PoE Capable
Supports 802.3af PoE for flexible and simple installation
Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.
LowLight+
Optimised for increased image quality in low-light environments
Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive
High quality videos, whatever the lighting
Video resolutions of up to 2592 x 1520 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions.
Viewing Angles
(H) 100 Deg
(V) 58 Deg
(D) 126 Deg
18x Digital Zoom
Zoom in to see more details in areas of interest
Versatile Monitoring in All Environments.
The IP66-rated water and dust-resistant design make this camera ideal for deployment in all weather conditions. The adjustable mount allows the camera to be quickly and easily positioned to get the best field of view.
Weather-resistant
Withstands rain and moisture, with a wide operating temperature range of -30 DegC to 50 DegC.
Optimising Bandwidth and Storage
To maximise bandwidth efficiency and improve image quality, the DCS-4714E provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting three separate profiles for simultaneous video streaming and recording.
Flexible Connectivity
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.
Optional recording to an NVR, VMS or NAS system
Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Wide Dynamic Range (WDR) |
 |
| Infrared (IR) cut-off filter |
|
| Certification | CE, FCC, RCM |
| Design | |
| Form factor The shape or design of the product. | Box |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Weatherproof |
|
| Camera | |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 100° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 58° |
| Viewing angle, diagonal | 126° |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | Auto |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology. | 18x |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
| Closest focusing distance | 0.5 m |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2592 x 1520 pixels |
| Video formats supported The type of video formats that can be used by this device. | H.264,H.265 |
| Video compression formats | H.264,H.265,M-JPEG |
| Frame rate | 30 fps |
| Noise reduction |
|
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
|
| Time stamp overlay |
|
| Text caption overlay |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, HTTP/HTTPS, RTSP/RTP/RTCP, TCP, UDP, DHCP, DNS, DDNS, NTP, FTP, SMTP Client, ONVIF Profile S compliant, ARP, ICMP, PPPoE, SNMP v1/v2c/v3 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Storage | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Security | |
| Video motion detection |
|
| Alert notification type | E-mail, Snapshot alert message |
| Management features | |
| Reset button |
|
| Power | |
| Power source type What the power source is. | PoE |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 8 W |
| DC output voltage | 12 |
| DC output current | 1.5 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 64 mm |
| Depth The distance from the front to the back of something. | 187.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 64 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 500 g |
| SKU | 550172 |
| MPN | DCS-4714E |
| Brand | D-Link |
