This Adapter works with a switch to provide both data and power to Ethernet enabled devices using a single Ethernet cable, eliminating the need to place those devices near outlets.
- Deliver Power up to 100m* Away
- 802.3af Compliant Power over Ethernet
- Plug & Play Installation

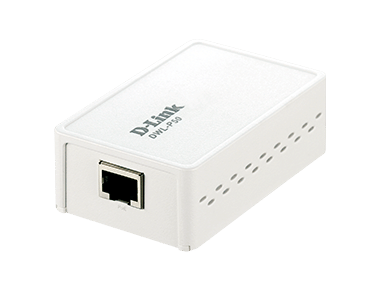

D-Link, an industry leader in networking, introduces the DWL-P50 Power over Ethernet (PoE) Adapter. By using the DWL-P50, both data and electrical power can be delivered to a non-PoE Ethernet-enabled device from a single CAT5 Ethernet cable.
The DWL-P50 is simple to install and requires no tools or software. Multiple DWL-P50 terminal units complement any PoE injector unit or midspan switch to provide small to medium business settings a complete end-to-end PoE solution. In addition, this unit supports 802.3af ensuring compatibility with other 802.3af PoE compliant injector units or midspan switches.
Its compact size makes implementation extremely easy. During setup, this terminal unit can be set to power up any compatible 5V or 12V Ethernet-enabled device** via the volt selector located on the back.
Using the convenience of Power over Ethernet, you eliminate the need to place an Ethernet-enabled device, such as a wireless access point or an Internet camera near a power outlet. Having to manage only an Ethernet cable simplifies the physical installation of the device. You can now mount these devices on a ceiling or outside, up to 100m* from a power source.
With PoE, both power and data can be transmitted using standard Ethernet cabling with virtually no reduction in data throughput. Use the DWL-P50 with Ethernet-enabled devices where power outlets are not readily available and with any compatible PoE power source.
* Maximun distance per 802.3u specifications.
** Maximum power output: 5 volts= 2.5 amps; 12 volts = 1 amp.
|Ports & interfaces
|Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.
|Host interface Interface that enables a host controller to communicate with a driver.
|Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another.
|• FCC Class B • CE • C-Tick • UL
|Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.
|0 - 40 °C
|Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.
|-10 - 70 °C
|1 Year Warranty
