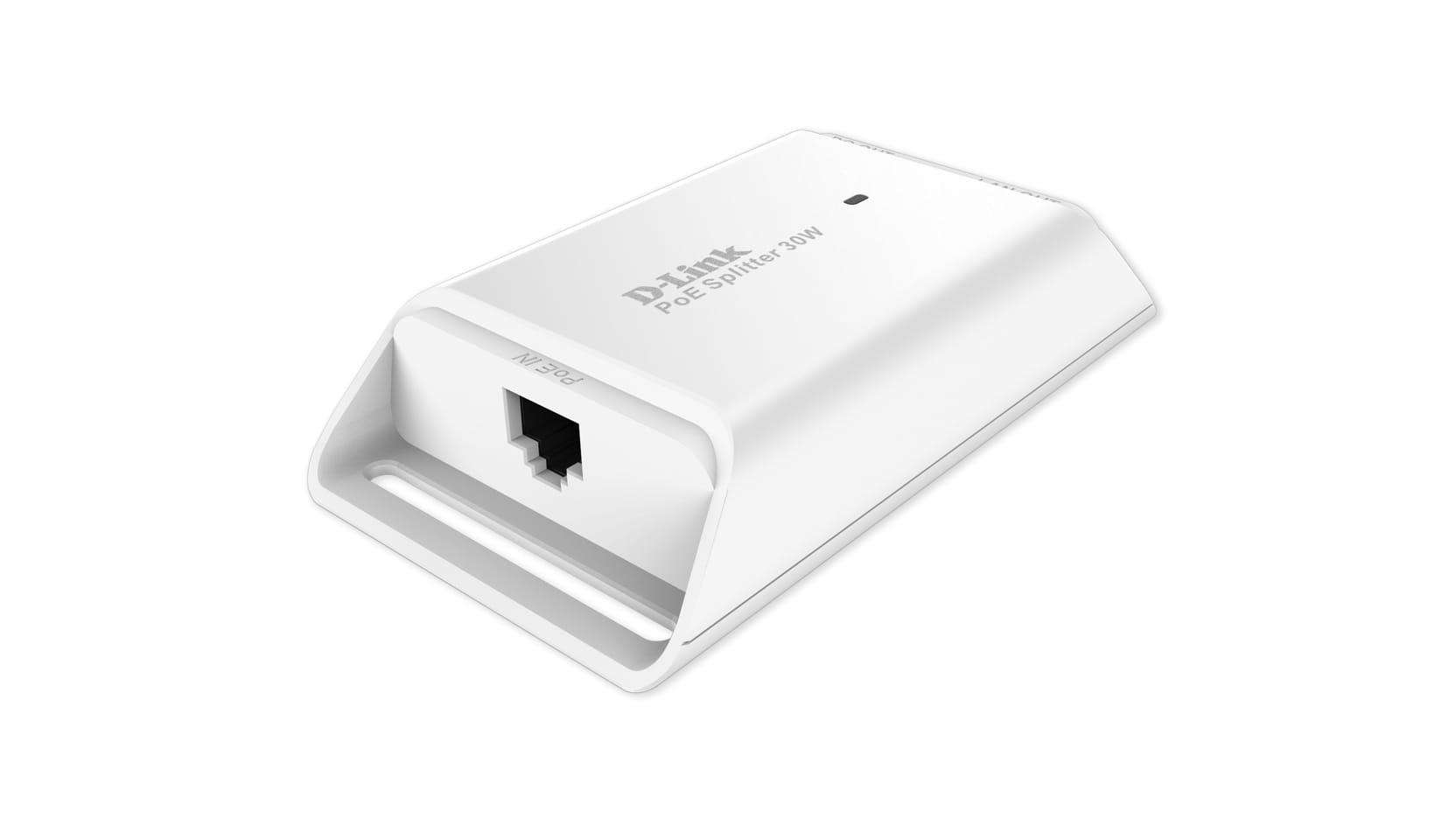

D-Link DPE-301GS, Fast Ethernet,Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u, White, CE, FCC, VCCI, RCM, 32.4 W
The DPE-301GS PoE splitter is used with end devices such as wireless access points, IP cameras and VoIP phones that don t natively support PoE, but rather require DC power input of 5V, 9V or 12V. It receives PoE power on a network cable from a PoE switch or midspan injector, and splits the Ethernet and DC power into two separate cables. One cable provides the DC power, and the other cable provides the Ethernet signal. Users can select from 5VDC, 9VDC and 12VDC power for their device using a selectable DIP switch on the device.
The DPE-301GS PoE splitter is typically located near the end device. It has two 10/100/1000 RJ-45 ports. One port is for PoE IN, which is the network connection and is usually connected to a remote PoE switch or injector. The other port is for LAN OUT, which is the connection that provides the Ethernet signal to the end device. The DPE-301GS also has a 5.5mm DC OUT port. Two adapter cables are supplied; either one may be connected to this port, depending on whether 5.5mm or 3.8mm interface is required for the end device.
The DPE-301GS PoE splitter is typically located near the end device. It has two 10/100/1000 RJ-45 ports. One port is for PoE IN, which is the network connection and is usually connected to a remote PoE switch or injector. The other port is for LAN OUT, which is the connection that provides the Ethernet signal to the end device. The DPE-301GS also has a 5.5mm DC OUT port. Two adapter cables are supplied; either one may be connected to this port, depending on whether 5.5mm or 3.8mm interface is required for the end device.
| Network | |
| Ethernet interface type | Fast Ethernet,Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u |
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Certification | CE, FCC, VCCI, RCM |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Output power The power that the device can produce. | 32.4 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 32 - 122 °F |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 98 g |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 109.8 x 62.2 x 24.5 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 106 mm |
| Package depth The distance from the front to the back of the packaging. | 156 mm |
| Package height The distance from the top to the bottom of the packaging. | 61 mm |
| Package weight Weight of the packaged product. | 230 g |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Logistics data | |
| Shipping (inner) case length | 44.5 cm |
| Shipping (inner) case width | 33.2 cm |
| Shipping (inner) case height | 32.5 cm |
| Shipping (inner) case gross weight | 10.3 kg |
| Shipping (inner) case net weight | 9.2 kg |
| Quantity per shipping (inner) case | 40 pc(s) |
| Pallet gross weight (air) | 327.8 kg |
| Number of cartons per pallet (air) | 30 |
| Quantity per pallet (air) | 1200 pc(s) |
| Pallet length | 120 cm |
| Pallet width | 110 cm |
| Pallet height (air) | 176.5 cm |
| Pallet gross weight (sea) | 327.8 kg |
| Number of cartons per pallet (sea) | 30 |
| Quantity per pallet (sea) | 1200 pc(s) |
| Pallet height (sea) | 176.5 cm |
| SKU | 440468 |
| MPN | DPE-301GS |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
