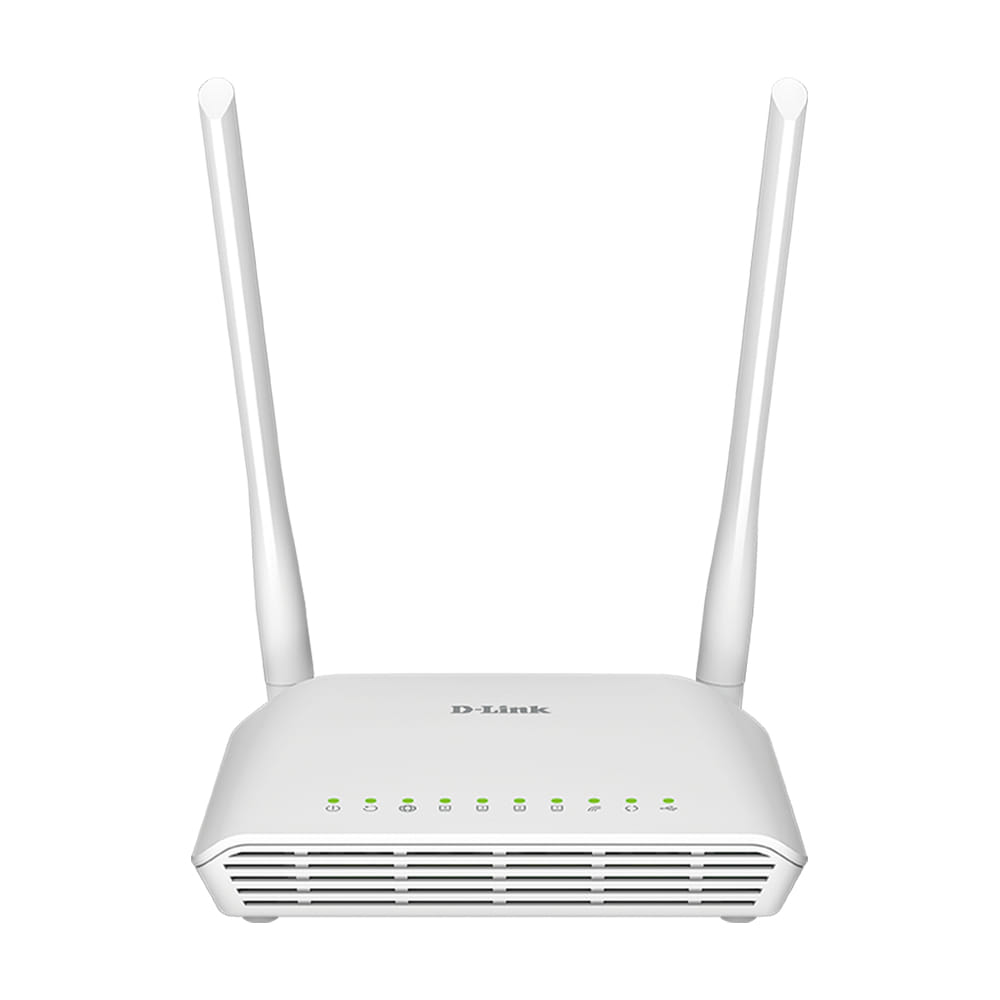

D-Link N300 Wireless VDSL2/ ADSL2+ Modem Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
WAN connection type	RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Single-band (2.4 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Fast Ethernet
Cabling technology Type of cable technology performance.	10/100Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3i, IEEE 802.3u
Wireless Distribution System (WDS) bridge
VPN Passthrough

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
USB port The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Quality of Service (QoS) support
WPS push button

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	64-bit WEP, 128-bit WEP, WPA, WPA2, WPS
Stateful Packet Inspection (SPI)
Network address translation (NAT)

Protocols
Universal Plug and Play (UPnP)

Design
Product colour The colour e.g. red, blue, green, black, white.	White
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Tabletop router

Sustainability
Sustainability certificates	CE, RoHS

Antenna
Antenna design	External

Power
Power source type What the power source is.	DC

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95%

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Weight & dimensions
Width The measurement or extent of something from side to side.	141.2 mm
Depth The distance from the front to the back of something.	100.1 mm
Height The measurement of the product from head to foot or from base to top.	35 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	150 g
