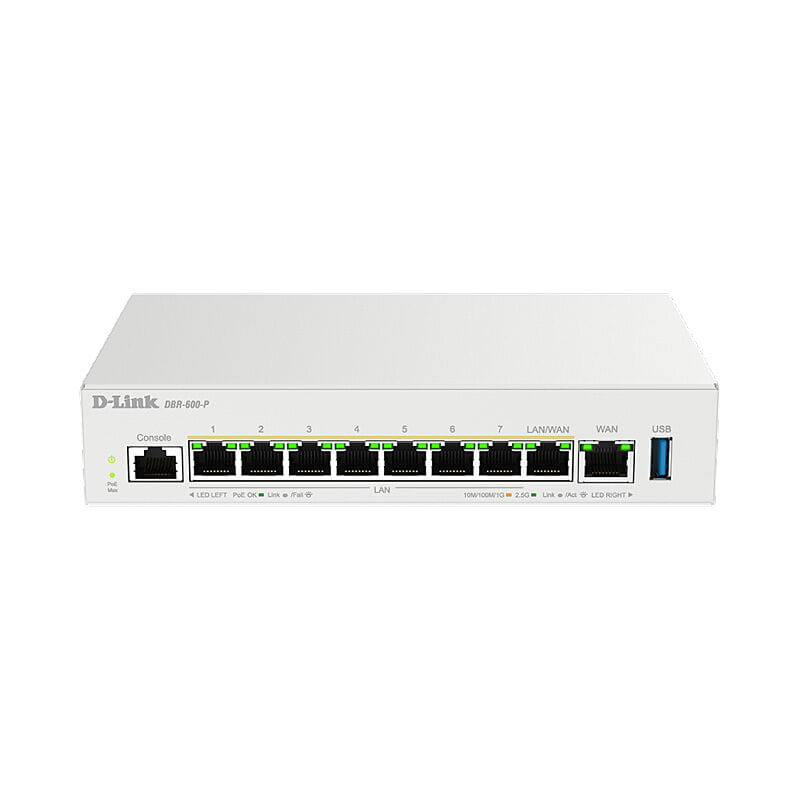

D-Link Multi-WAN 2.5G PoE Smart Office VPN Router

Features

• 1 x 2.5G WAN port delivers high-speed connections


• Up to 8 x 2.5G PoE LAN ports, 123W power budget


• USB 3.0 integrates with the D-Link 4G/5G dongle


• Multi-WAN enables steady and balanced connectivity


• Advanced firewall protect the network against threats


• Comprehensive network functionality cover all needs


• Manage up to 10 D-Link Smart Access Point series


• Bandwidth management optimizes service priority


• Easy Web GUI for central monitoring and management


• Made In Taiwan

Specifications

General Device Interfaces

• 1 x 10/100/1000/2.5G WAN port


• 1 x 10/100/1000/2.5G WAN/LAN Configurable ports


• 7 x 10/100/1000/2.5G LAN port


• 1 x USB 3.0


• 1 x Reset Button


• 1 x Power Connector


• 1 x Console Port (Debugging purposes only)

PoE

• 802.3at PoE output


• Up to 120 W total PoE budget

Ether-WAN Type

• Dynamic IP


• PPPoE


• L2TP


• Static IP


• PPTP

WAN Failover

• Dual Ether-WAN Failover


• USB LTE Dongle - Ether-WAN Failover

WAN Load Balance

• Dual Ether-WAN Load Balance


• USB LTE Dongle - Ether-WAN Load Balance

Network LAN & VLAN

• DHCP Server/Relay


• Port/Tag based VLAN

Network Port Forward

• DMZ


• VPN Pass-through


• Virtual Server


• DDNS

Network Routing

• Static


• RIPv1/v2


• Dynamic

VPN Tunnel

• PPTP


• IPSec


• L2TP


• WireGuard


• OpenVPN


• GRE

Security

• IPS/IDS


• MAC/IP Filtering


• SPI Firewall


• URL Blocking

AP Management

• Manage Up to 10 DBR-X3000-AP

Wi-Fi SSID

• SSID Name


• VLAN Tag

Wi-Fi Security

• WPA/WPA2/WPA3 Personal


• WPA/WPA2/WPA3 Enterprise

Captive Portal

• Click-through


• Internal database


• RADIUS

Monitoring Feature

• Clients IP/MAC


• Clients Status and Statistics

Device Firmware

• Firmware Upgrade

Physical & Environment

• Power Input 54 V/2.7 A


• Dimensions 120 x 190 x 38 mm


• Operating Temperature 0 to 40 °C (32 to 104 °F)


• Storage Temperature -10 to 70 °C (14 to 158 °F)


• Operating Humidity 10% to 90% non-condensing


• Storage Humidity 0% to 95% non-condensing
