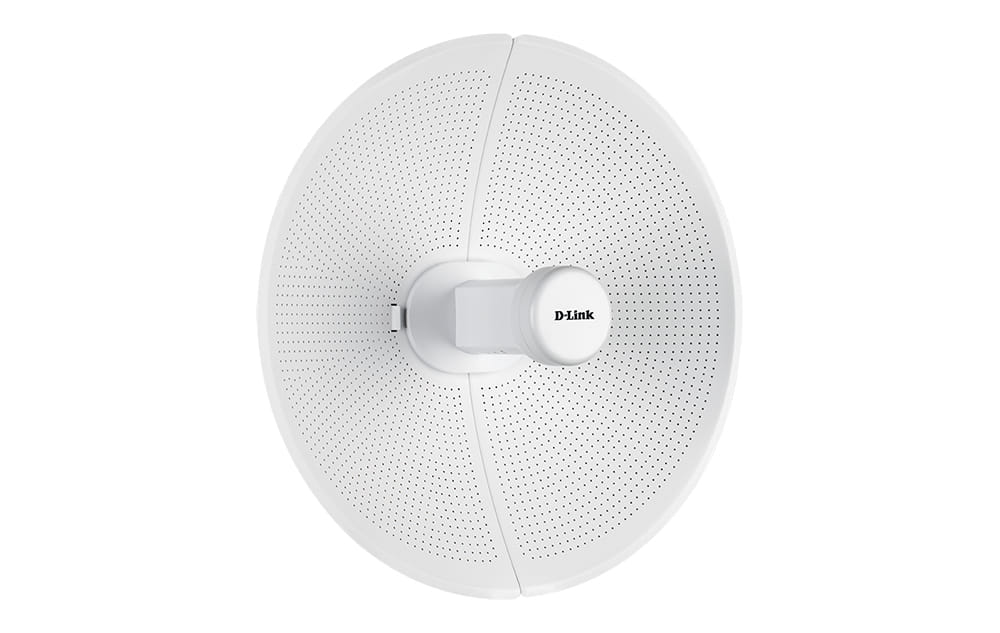

D-Link Long Range Wi-Fi 5 Wireless Bridge (20km) - Pack of 2
Pack of two DAP-3712 Wi-Fi 5 Bridges
Point-to-Point or Point-to-Multipoint connection
Up to 20km distance
802.11ac wireless technology on 5GHz band
Built-in Alignnment and Signal Strength LEDs
TDMA technology for better performance
High power 27 dBm design
23 dBi directional antenna
Weather Proof outdoor design (IP66 rated)
8 kV surge protection
Supports standard IEEE 802.3at PoE
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
 |
| 6 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 5.745 - 5.825 GHz |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 2 channels |
| Fit AP mode features | Wireless distribution system (WDS) |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors. | 20000 m |
| Transmitting power (CE) | 27 dBm |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 128-bit AES |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| IP address filtering |
|
| Service Set Identifier (SSID) features | SSID broadcast |
| DHCP snooping |
|
| Management features | |
| Syslog |
|
| Firmware upgradeable |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 48 V |
| Power consumption (max) The maximum amount of power used by the device. | 15 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Reset button |
|
| LED indicators | Signal strength |
| Certification | CE, FCC |
| Antenna | |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 23 dBi |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 372 mm |
| Depth The distance from the front to the back of something. | 241 mm |
| Height The measurement of the product from head to foot or from base to top. | 372 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 900 g |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 2 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 65 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| SKU | 631148 |
| MPN | DAP-3712-2PK |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
