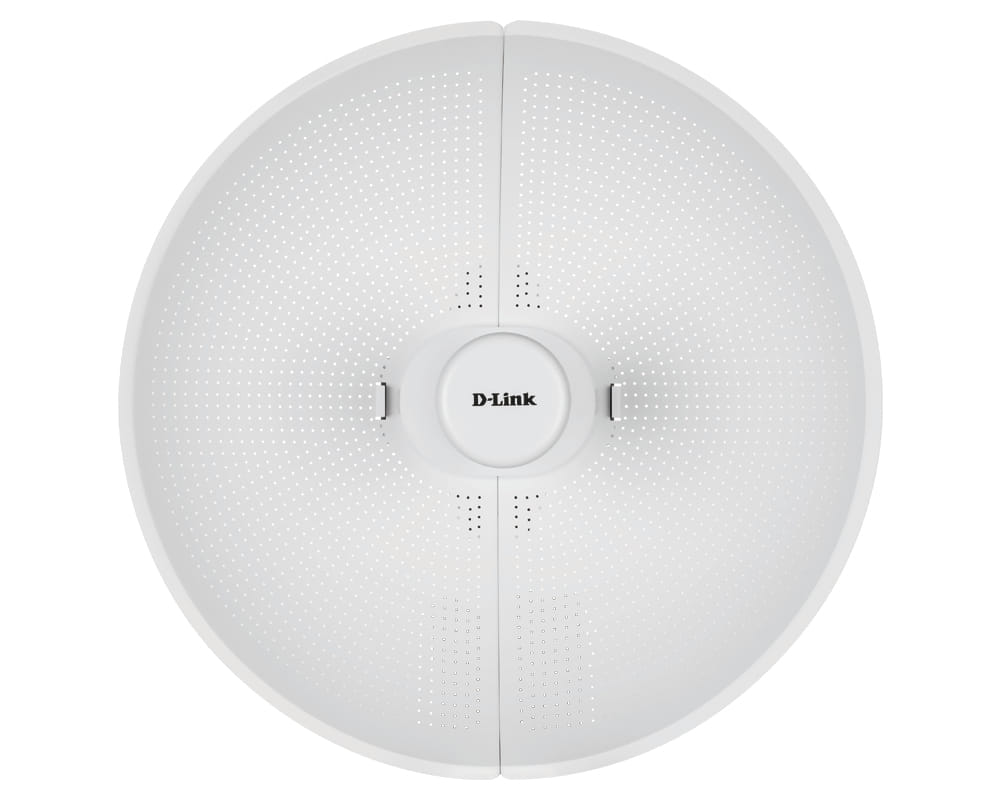

D-Link DAP-3712, 867 Mbit/s, 867 Mbit/s, 100,1000 Mbit/s, 5.745 - 5.825 GHz, 0.08 GHz, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11n
Highlights
The DAP-3712 is the essential solution in providing connectivity to previously believed impossible-to-reach areas. Industry leading core technologies, especially designed for long distance coverage, bring high-speed connectivity to rural areas and challenging terrain equivalent to that of a wired connection.
TDMA Technology Cuts Through the Chatter, Creating Even Stabler Coverage
The DAP-3712 transmission capability is augmented thanks to its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3712 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximizing airtime efficiency, significantly cutting down interference and making for a highly scalable solution.
Form Without Sacrificing Function
It can be hard to look good while still being functional. Yet the DAP-3712 strikes the balance just right. The smooth case in crisp white makes for a low-key form that can effortlessly fit any outdoor setting without drawing attention.
Being as functional as it is well-formed, it champions an IP66 rating, fighting dust and repelling water, all while maintaining its unassuming looks.
Cutting Edge Hardware Makes the Previously Impossible, Possible
The DAP-3712 features state-of-the-art hardware, including a high-gain 23 dBi directional antennas. This powerful antenna effortlessly extends high-speed coverage to distances of up to 20 km away.
Discreet Deployment that's Hassle-Free with Power Over Ethernet (PoE)
Power sockets can be tricky to come by, especially in outdoor deployments. But PoE makes for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.
The DAP-3712 is the essential solution in providing connectivity to previously believed impossible-to-reach areas. Industry leading core technologies, especially designed for long distance coverage, bring high-speed connectivity to rural areas and challenging terrain equivalent to that of a wired connection.
TDMA Technology Cuts Through the Chatter, Creating Even Stabler Coverage
The DAP-3712 transmission capability is augmented thanks to its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3712 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximizing airtime efficiency, significantly cutting down interference and making for a highly scalable solution.
Form Without Sacrificing Function
It can be hard to look good while still being functional. Yet the DAP-3712 strikes the balance just right. The smooth case in crisp white makes for a low-key form that can effortlessly fit any outdoor setting without drawing attention.
Being as functional as it is well-formed, it champions an IP66 rating, fighting dust and repelling water, all while maintaining its unassuming looks.
Cutting Edge Hardware Makes the Previously Impossible, Possible
The DAP-3712 features state-of-the-art hardware, including a high-gain 23 dBi directional antennas. This powerful antenna effortlessly extends high-speed coverage to distances of up to 20 km away.
Discreet Deployment that's Hassle-Free with Power Over Ethernet (PoE)
Power sockets can be tricky to come by, especially in outdoor deployments. But PoE makes for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.
| Features | |
| 5 GHz |
 |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 867 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 5.745 - 5.825 GHz |
| Bandwidth | 0.08 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11n |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 2 channels |
| Fit AP mode features | Wireless distribution system (WDS) |
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors. | 20000 m |
| Transmitting power (CE) | 27 dBm |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 128-bit AES |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| IP address filtering |
|
| Service Set Identifier (SSID) features | SSID broadcast |
| DHCP snooping |
|
| Management features | |
| Syslog |
|
| Firmware upgradeable |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Input voltage The voltage (V) which is required to power the product. | 48 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 15 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Reset button |
|
| LED indicators | Signal strength |
| Certification | CE, FCC |
| Antenna | |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 23 dBi |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 65 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 372 mm |
| Depth The distance from the front to the back of something. | 241 mm |
| Height The measurement of the product from head to foot or from base to top. | 372 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 900 g |
| SKU | 551194 |
| MPN | DAP-3712 |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
