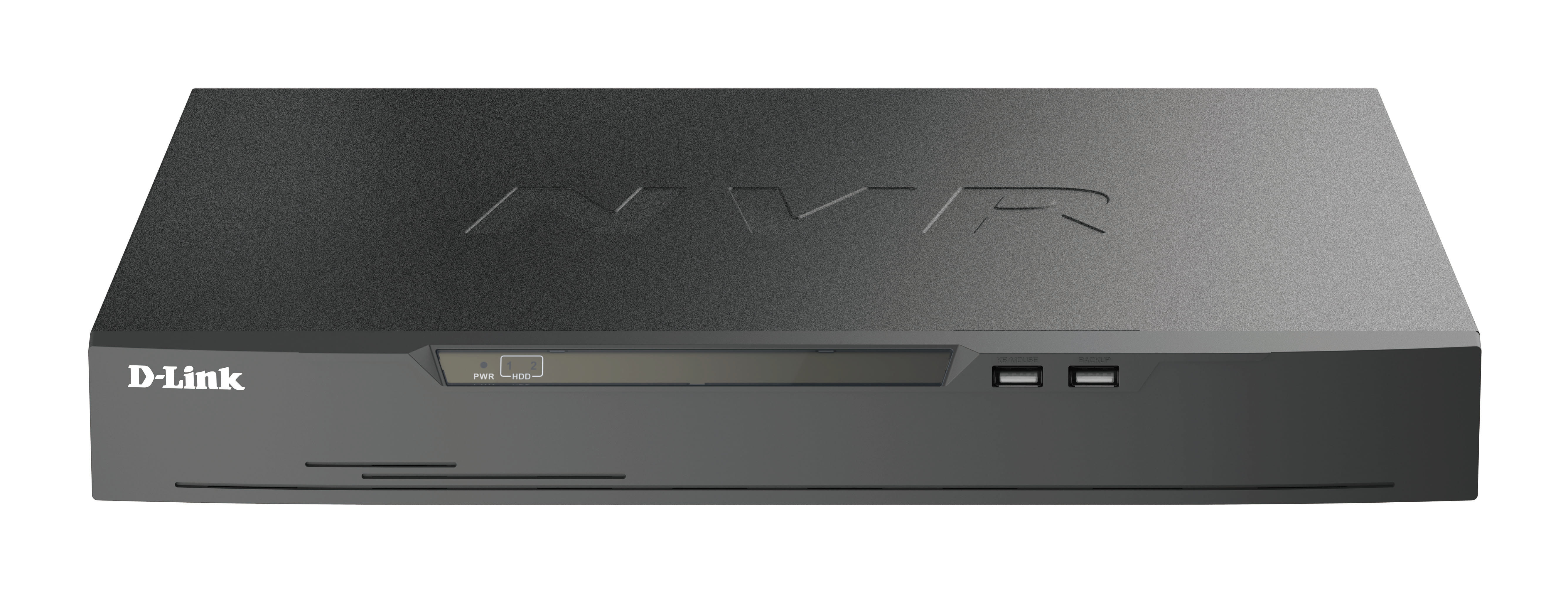

View streams from up to 16 Cameras in real time and in 4K for clearer footage than ever before. Storage is easily expandable, powerful tools make footage review and management of Cameras simple. NVR with HDMI/VGA output, 16 PoE ports, 2 Bays for HDDs
| Performance | |
| Video input channels The number of channels for video input that the device features. | 16 channels |
| Alarm input channels | 8 |
| Alarm output channels | 2 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC,G.711 |
| Video formats supported The type of video formats that can be used by this device. | H.264,H.265 |
| PTZ control |
 |
| Playback modes | Backup selection, Forward, Frame by Frame, Play, Reverse, Stop |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Recording modes The different ways in which this device can record. | Event, Manual, Schedule |
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Storage | |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 2 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 16 TB |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | SATA,SATA II,SATA III |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) ports quantity | 16 |
| HDMI output The device features an HDMI output. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 3 |
| Audio output The type of audio output that the device produces, and the connector(s). | 3.5 mm |
| Microphone in The socket where a microphone is connected to the device. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | HTTP/HTTPS, RTP, RTSP, RTCP, SNMP v1/v2c/v3, IPv4, ARP, TCP, UDP, ICMP |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 143 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Output current | 5 A |
| Output voltage | 52 V |
| Power over Ethernet (PoE) power per port | 15 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 372 mm |
| Depth The distance from the front to the back of something. | 310.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 46.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.8 kg |
| SKU | 555289 |
| MPN | DNR-4020-16P |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
