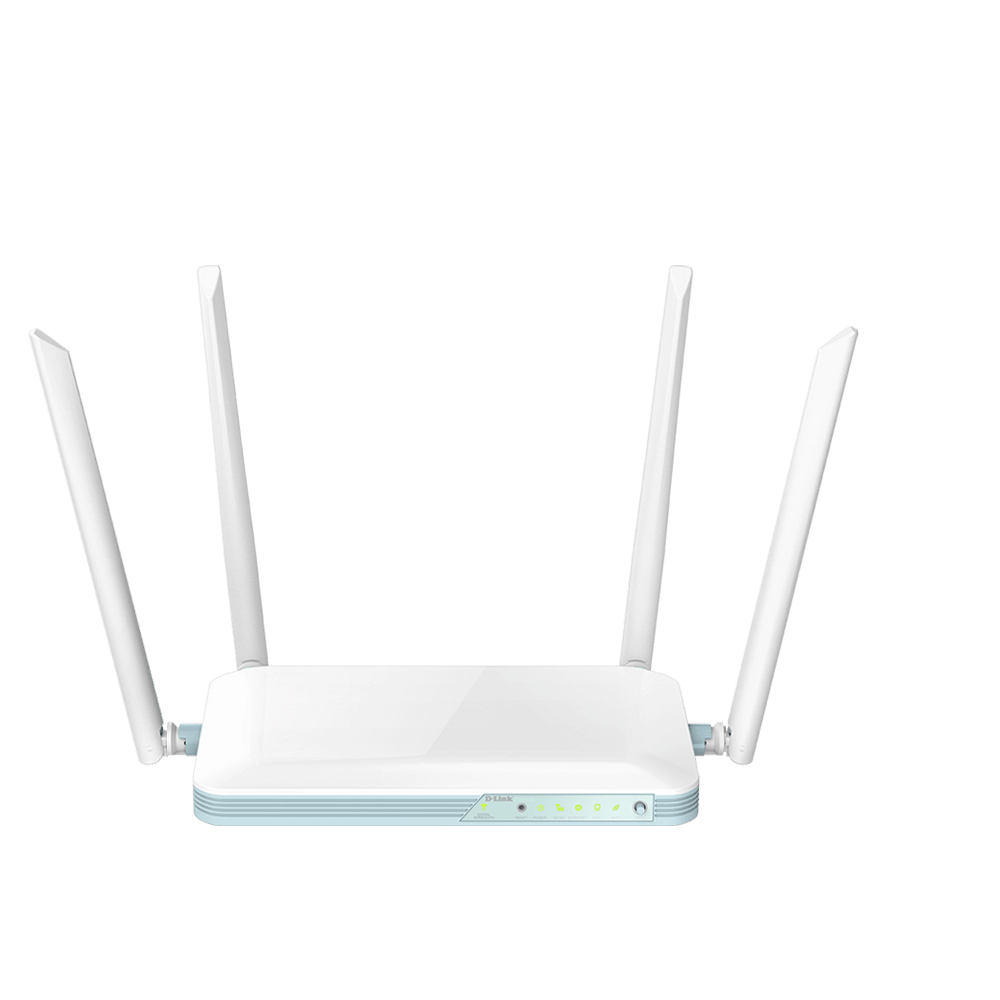

D-Link Eagle PRO AI N300 4G Smart Router

WAN connection
Ethernet WAN
SIM card slot Whether the device features a SIM card slot.
WAN connection type	RJ-45

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Single-band (2.4 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Fast Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100 Mbit/s
Cabling technology Type of cable technology performance.	10/100Base-T(X)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11k, IEEE 802.11v, IEEE 802.3u

Mobile network
Mobile network generation	4G
2G standards	Edge, GPRS, GSM
3G standards	DC-HSPA+, HSPA, HSPA+, UMTS
4G standard	LTE
GSM bands supported	900,1800 MHz
UMTS bands supported	900,2100 MHz

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	4
USB port The device features a socket into which a USB cable can be plugged.

Management features
Reset button
WPS push button

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	WPA, WPA2, WPA3, WPS
Firewall
Stateful Packet Inspection (SPI)
Filtering
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
IP address filtering
DMZ support

Design
Product colour The colour e.g. red, blue, green, black, white.	White
LED indicators	LAN, Power, WLAN, WPS
On/off switch The button which is pressed to switch the device on or off.
Product type The sub-category of the product.	Desktop/pole router

Sustainability
Sustainability compliance
Sustainability certificates	CE

Antenna
Antenna design	External
Antennas quantity	4

Features
Works with Amazon Alexa
Works with the Google Assistant The Google Assistant is a virtual assistant developed by Google that is primarily available on mobile and smart home devices. Unlike Google Now, the Google Assistant can engage in two-way conversations

Power
Power source type What the power source is.	DC
Output voltage	12 V
Output current	1 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%

System requirements
Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device.	Android, iOS

Weight & dimensions
Width The measurement or extent of something from side to side.	208 mm
Depth The distance from the front to the back of something.	121.8 mm
Height The measurement of the product from head to foot or from base to top.	23.5 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	290 g

Packaging data
Package type The type of product package e.g. box.	Box
