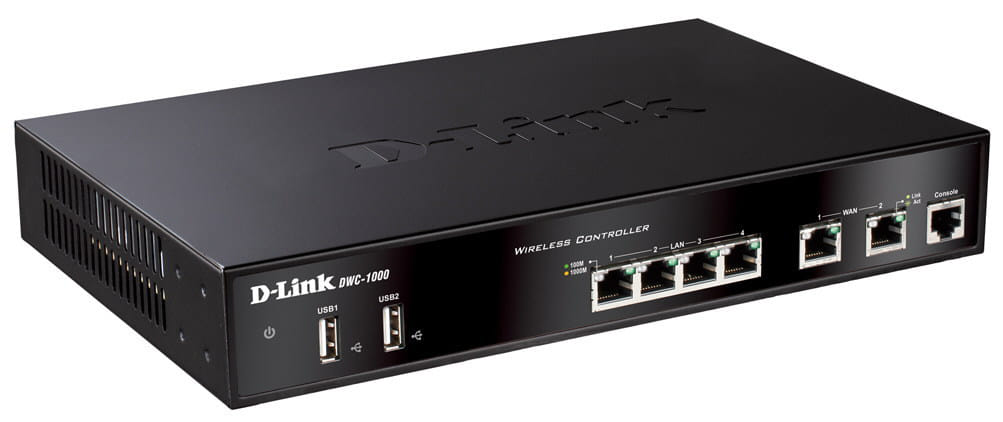

D-Link DWC-1000, IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3ad,IEEE 802.3u, 10,100,1000 Mbit/s, IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, 3DES,DES,WEP,WPA,WPA2, 19.3 W, FCC B, CE B, VCCI, C-tick, IC, cUL, LVD (EN60950-1)
The D-Link DWC-1000 Wireless Controller is a centralised wireless LAN manager developed specifically for campuses, branch offices, and businesses that are looking for an easy to use, scalable solution to manage and configure their wireless network. With the ability to manage up to six wireless Access Points (upgradable to 24) and a maximum of 96 wireless Access Points in a Controller Cluster, the DWC-1000 is a cost-effective mobility solution for small to medium-scale environments. Its auto-managed AP discovery and single point management allow customers to acquire an enterprise class system without the burden of executing massive and complex configurations. With a robust and comprehensive security detection system, the DWC-1000 also enables managed APs to block potential attacks from unauthorised users and devices, especially for wireless environments.
| Performance | |
| Number of managed Wi-Fi Access Points (max) | 6 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.1x,IEEE 802.3,IEEE 802.3ad,IEEE 802.3u |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 3DES,DES,WEP,WPA,WPA2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 19.3 W |
| Design | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Power LED |
|
| Certification | FCC B, CE B, VCCI, C-tick, IC, cUL, LVD (EN60950-1) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 280 x 180 x 44 mm |
| Package width The distance from one side of the packaging to the other. | 273 mm |
| Package depth The distance from the front to the back of the packaging. | 396 mm |
| Package height The distance from the top to the bottom of the packaging. | 80 mm |
| Package weight Weight of the packaged product. | 2.5 kg |
| Technical details | |
| Shipping (inner) case length | 35.4 cm |
| Shipping (inner) case width | 29.6 cm |
| Shipping (inner) case height | 42.8 cm |
| Shipping (inner) case gross weight | 10.8 kg |
| Shipping (inner) case net weight | 10 kg |
| Quantity per shipping (inner) case | 4 pc(s) |
| Pallet gross weight (air) | 415.2 kg |
| Number of cartons per pallet (air) | 36 |
| Quantity per pallet (air) | 144 pc(s) |
| Pallet length | 110 cm |
| Pallet width | 120 cm |
| Pallet height (air) | 141.9 cm |
| Pallet gross weight (sea) | 545.6 kg |
| Number of cartons per pallet (sea) | 48 |
| Quantity per pallet (sea) | 192 pc(s) |
| Pallet height (sea) | 184.7 cm |
| Other features | |
| Power requirements | DC 12V/2.5A |
| SKU | 440525 |
| MPN | DWC-1000 |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
