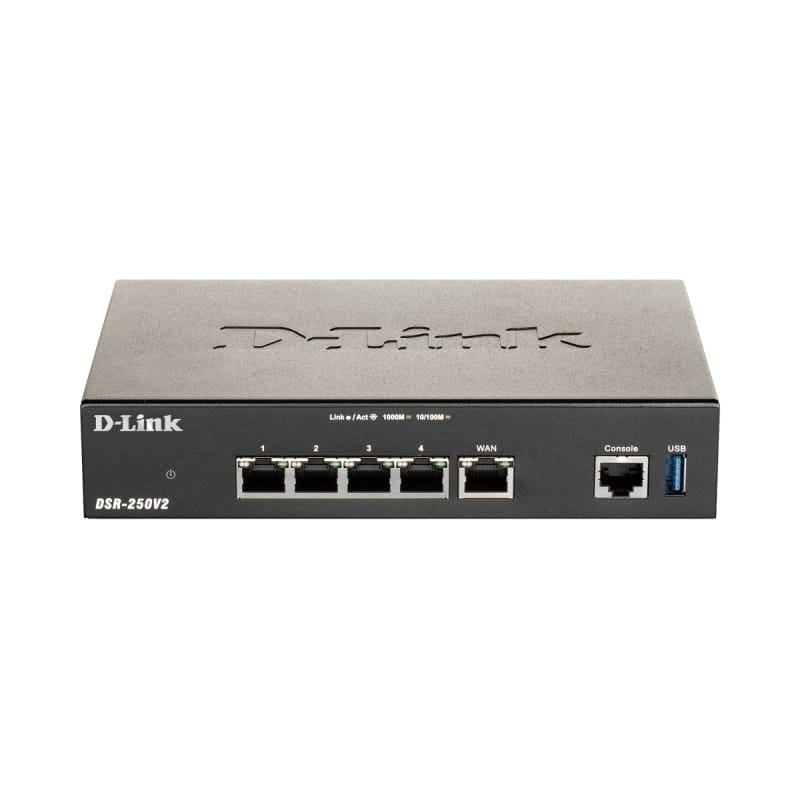

D Link DSR 250V2 5 Gigabit Port VPN Router
Specifications:
- Ethernet Interface: 1 x 10/100/1000 Mbps WAN port 3 x 10/100/1000 Mbps LAN ports 1 x 10/100/1000 Mbps configurable port
- USB Port: 1 x USB 3.0
- Console Port: RJ 45
- Firewall Throughput: 950 Mbps
- VPN Throughput (3DES): 200 Mbps
- Concurrent Sessions: 50000
- New Sessions (per second): 2000
- Firewall Policies: 300
- Static/Dynamic IP: Yes
- Static Route: Yes
- Dynamic Route: RIP v1/v2 / OSPF / OSPFv3
- Authentication: Internal User Database / Radius / POP3 / LDAP / AD / NT Domain
- DHCP Server/Client: 1024 clients
- DHCP Relay: Yes
- IEEE 802.11q VLAN: Yes
- Number of VLANs: 16
- IP Multicast: IGMP Proxy / IGMP Snooping
- IPv6: Yes
- Route Failover: Yes
- VPN Tunnels: 75
- IPsec Tunnel: 50
- PPTP/L2TP Tunnels: 30
- GRE: 20
- OpenVPN Tunnels: 20
- SSL Encryption Methods: RC4 128 / 3DES / AES
- Encryption Methods: DES / 3DES / AES / Twofish / Blowfish / CAST 128 / NULL
- Priority Bandwidth Control: Low/Medium/High
- Web based User Interface: Yes
- SNMP: v1 / v2c / v3
- Power Supply: External Power Supply Unit DC 12 V/1.5 A
- Max Power Consumption: 8.603 W/ 14.4 W
- Dimensions (L x W x H): 190 x 120 x 38 mm
Features:
- Automatic failover to another link from available ISP when primary line is lost.
- Support 1 x GE WAN 3 x GE LAN 1 GE Configurable LAN/WAN and 1 x USB 3.0 port.
- 900/200 Mbps firewall/VPN throughput 50000 Concurrent Sessions and 50/20 IPsec/SSL VPN Tunnels.
- Advanced routing VLAN and IPsec/PPTP/L2TP/OpenVPN VPN Server/Client
- Value added office utilities to reduce OpEx/CAPEX
- Traffic load balancing and Avoid complicated maintenance issues
| WAN connection | |
| Ethernet WAN |
 |
| SIM card slot Whether the device features a SIM card slot. |
 |
| Wireless LAN features | |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | 802.11g |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11g |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Static route |
|
| VPN tunnels quantity | 75 |
| VPN Passthrough |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 5 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 3DES, 128-bit RC4, AES, SNMP, SNMPv2, SNMPv3 |
| Firewall |
|
| Protocols | |
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Routing protocols | OSPF, OSPFv3, RIP-1, RIP-2 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Product type The sub-category of the product. | Desktop/pole router |
| Antenna | |
| Antenna design | Internal |
| Features | |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 123015785 h |
| Power | |
| Power source type What the power source is. | DC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 14.4 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 190 mm |
| Height The measurement of the product from head to foot or from base to top. | 38 mm |
| SKU | 714290 |
| MPN | DSR-250V2 |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
