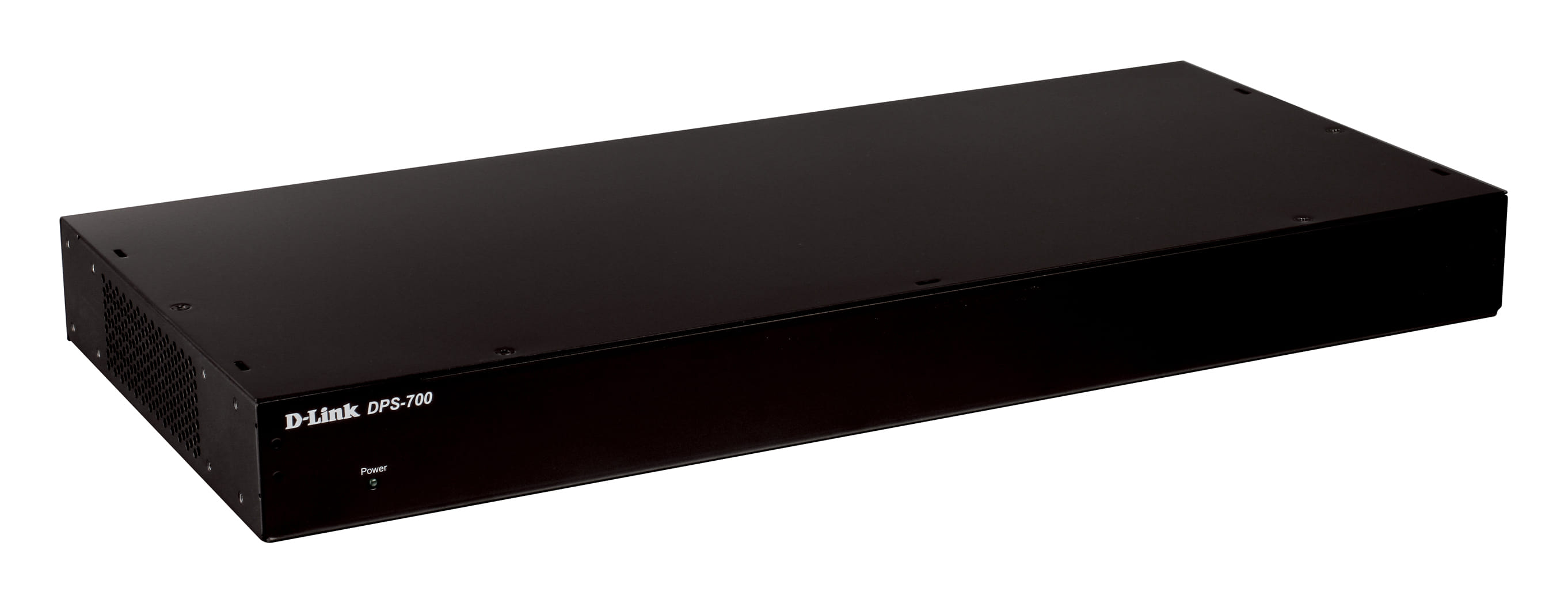

D-Link DPS-700, Power supply, Black, 624961 h, 589 W, 90 - 264 V, 50 - 60 Hz
The DPS-200, DPS-300, DPS-500/500DC, DPS-600, and DPS-700 redundant power supplies (RPS) are designed to conform to the wattage requirements of D-Link's Ethernet and Gigabit switches. They are external RPS units enclosed in solid metal cases with sockets to AC or DC power sources on one end, and connect to a switch's internal power supply on the other end. They provide a low-cost, simple solution to the problem of an inadvertent failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switch, the devices attached to its ports, or an entire network. Supporting full output power for the switch, these redundant power supplies can maximize the power availability of the switching device.
Redundant Power Backup
Each D-Link RPS is equipped with an integrated detection circuit that continuously monitors the
switch's internal power supply. In the event of a power interruption, the redundant power supply is
immediately triggered so that the LAN switch and its connected devices can continue providing service. This results in a more reliable network infrastructure and protects the network from going down due to failure of a single network device power supply.
Easy and Flexible Deployment
Deployment of a DPS series device does not require any change in the configuration of the LAN switch. With the exception of the DPS-500DC, each RPS is equipped with a universal internal power supply, and can be connected to any AC power source from 90 V AC to 264 V AC, 47 Hz to 63 Hz through a standard AC power cable. The DPS-500DC provides the same output power as the DPS-500, but connects to a DC power source instead of an AC power source.
Rack Mounted Power Supplies: DPS-600/700
The DPS-600 and DPS-700 are 19-inch standard-size rack mount power supplies designed to improve flexibility in supporting PoE (Power over Ethernet) equipment. The DPS-700 also supports 1+1 power capabilities. When cascading the DPS-700 with a device's internal power supply, the power system can provide an additional power budget to the device.
Redundant Power Backup
Each D-Link RPS is equipped with an integrated detection circuit that continuously monitors the
switch's internal power supply. In the event of a power interruption, the redundant power supply is
immediately triggered so that the LAN switch and its connected devices can continue providing service. This results in a more reliable network infrastructure and protects the network from going down due to failure of a single network device power supply.
Easy and Flexible Deployment
Deployment of a DPS series device does not require any change in the configuration of the LAN switch. With the exception of the DPS-500DC, each RPS is equipped with a universal internal power supply, and can be connected to any AC power source from 90 V AC to 264 V AC, 47 Hz to 63 Hz through a standard AC power cable. The DPS-500DC provides the same output power as the DPS-500, but connects to a DC power source instead of an AC power source.
Rack Mounted Power Supplies: DPS-600/700
The DPS-600 and DPS-700 are 19-inch standard-size rack mount power supplies designed to improve flexibility in supporting PoE (Power over Ethernet) equipment. The DPS-700 also supports 1+1 power capabilities. When cascading the DPS-700 with a device's internal power supply, the power system can provide an additional power budget to the device.
| Features | |
| Product type The sub-category of the product. | Power supply |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 624961 h |
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 589 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 90 - 264 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 7.5 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 65 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 441 mm |
| Depth The distance from the front to the back of something. | 199 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.7 kg |
| Technical details | |
| Package depth The distance from the front to the back of the packaging. | 559 mm |
| Package width The distance from one side of the packaging to the other. | 344 mm |
| Package height The distance from the top to the bottom of the packaging. | 132 mm |
| Package weight Weight of the packaged product. | 5.6 kg |
| Shipping (inner) case length | 57.7 cm |
| Shipping (inner) case width | 42.4 cm |
| Shipping (inner) case height | 37.6 cm |
| Shipping (inner) case gross weight | 18.2 kg |
| Shipping (inner) case net weight | 16.8 kg |
| Quantity per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 238.4 kg |
| Number of cartons per pallet (air) | 12 |
| Quantity per pallet (air) | 36 pc(s) |
| Pallet length | 120 cm |
| Pallet width | 100 cm |
| Pallet height (air) | 126.3 cm |
| Pallet gross weight (sea) | 384 kg |
| Number of cartons per pallet (sea) | 20 |
| Quantity per pallet (sea) | 60 pc(s) |
| Pallet height (sea) | 2.02 m |
| SKU | 440483 |
| MPN | DPS-700 |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
