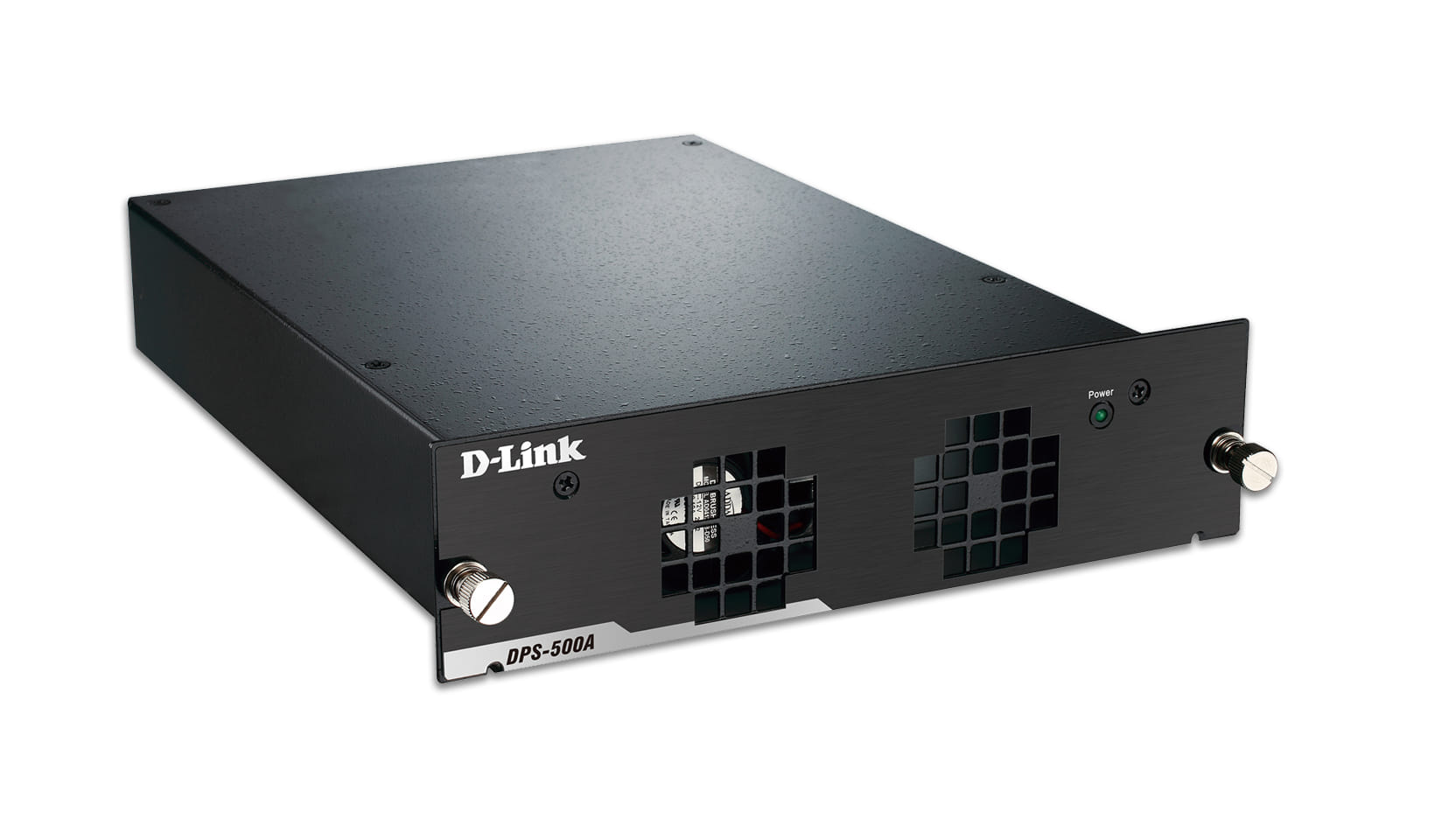

D-Link DPS-500A, Power supply, Black, 400000 h, 140 W, 90 - 264 V, 47 - 63 Hz
The DPS-200A, DPS-500A and DPS-700 redundant power supplies (RPS) are designed to conform to the wattage requirements of D-Link s Fast Ethernet and Gigabit switches. They provide a low-cost, simple solution to the problem of a failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switching device, the devices attached to its ports, or an entire network. Supporting full output power for the switch, these redundant power supplies can maximize the availability of the switching device.
Redundant Power Backup
Each D-Link RPS is equipped with an integrated detection circuit that continuously monitors the switching device s internal power supply. In the event of a power interruption, the redundant power supply is immediately triggered so that the LAN switch and its connected devices can continue providing service. This results in a more reliable network infrastructure and protects the network from a single failure of a network device power supply.
Easy and Flexible Deployment
Deployment of a DPS-200A, DPS-500A or DPS-700 does not necessitate any change in configuration of the LAN switch. Each RPS is equipped with a universal internal power supply and can be connected to any AC main power source from 90VAC to 264VAC, 47Hz to 63Hz through a standard AC power cable.
The DPS-200A and DPS-500A power supplies are modular, and can be mounted on benchtop/desktop as independent power supply units, or installed in a DPS-800 chassis, which holds two power supplies and mounts in a standard 19-inch equipment rack.
The DPS-700 is a 1U high 19-inch standard-size rack mount power supply designed specifically for D-Link s PoE switches. Not only does it provide power backup in the event of a power supply failure in the PoE switch, but it also supports PoE power load sharing. It provides an additional 370W of PoE power budget to the switch to support more powered devices.
All D-Link redundant power supplies ship with the necessary cables. The one exception is for the DPS-3000-10TC Gigabit switch when used with the DPS-200A power supply. In this case, a DPS-CB150-2PS cable must be separately ordered.
DPS-800 Rack-Mount Chassis
Each DPS-800 chassis can accommodate up to two DPS-200A or DPS-500A power supply modules in an equipment rack. The DPS-800 occupies 1.25U of rack space and allows users to save space with efficient cabling. All redundant power supply units installed in the chassis connect directly to their power sources and are hot-swappable.
D-Link RPS Compatibility Chart
DPS-500A:
- DGS-3450
- DGS-3120-48TC
- DGS-3420-28TC
- DGS-3420-28SC
- DGS-3420-52T
- DGS-3620-28TC
- DGS-3620-28SC
- DGS-3620-52T
Redundant Power Backup
Each D-Link RPS is equipped with an integrated detection circuit that continuously monitors the switching device s internal power supply. In the event of a power interruption, the redundant power supply is immediately triggered so that the LAN switch and its connected devices can continue providing service. This results in a more reliable network infrastructure and protects the network from a single failure of a network device power supply.
Easy and Flexible Deployment
Deployment of a DPS-200A, DPS-500A or DPS-700 does not necessitate any change in configuration of the LAN switch. Each RPS is equipped with a universal internal power supply and can be connected to any AC main power source from 90VAC to 264VAC, 47Hz to 63Hz through a standard AC power cable.
The DPS-200A and DPS-500A power supplies are modular, and can be mounted on benchtop/desktop as independent power supply units, or installed in a DPS-800 chassis, which holds two power supplies and mounts in a standard 19-inch equipment rack.
The DPS-700 is a 1U high 19-inch standard-size rack mount power supply designed specifically for D-Link s PoE switches. Not only does it provide power backup in the event of a power supply failure in the PoE switch, but it also supports PoE power load sharing. It provides an additional 370W of PoE power budget to the switch to support more powered devices.
All D-Link redundant power supplies ship with the necessary cables. The one exception is for the DPS-3000-10TC Gigabit switch when used with the DPS-200A power supply. In this case, a DPS-CB150-2PS cable must be separately ordered.
DPS-800 Rack-Mount Chassis
Each DPS-800 chassis can accommodate up to two DPS-200A or DPS-500A power supply modules in an equipment rack. The DPS-800 occupies 1.25U of rack space and allows users to save space with efficient cabling. All redundant power supply units installed in the chassis connect directly to their power sources and are hot-swappable.
D-Link RPS Compatibility Chart
DPS-500A:
- DGS-3450
- DGS-3120-48TC
- DGS-3420-28TC
- DGS-3420-28SC
- DGS-3420-52T
- DGS-3620-28TC
- DGS-3620-28SC
- DGS-3620-52T
| Features | |
| Product type The sub-category of the product. | Power supply |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Harmonized System (HS) code | 85177900 |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 400000 h |
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 140 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -45 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 172 mm |
| Depth The distance from the front to the back of something. | 257 mm |
| Height The measurement of the product from head to foot or from base to top. | 43 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.51 kg |
| Technical details | |
| Package depth The distance from the front to the back of the packaging. | 436 mm |
| Package width The distance from one side of the packaging to the other. | 246 mm |
| Package height The distance from the top to the bottom of the packaging. | 109 mm |
| Package weight Weight of the packaged product. | 2.8 kg |
| Shipping (inner) case length | 46.7 cm |
| Shipping (inner) case width | 45.7 cm |
| Shipping (inner) case height | 28.4 cm |
| Shipping (inner) case net weight | 11 kg |
| Products per shipping (inner) case | 4 pc(s) |
| Pallet gross weight (air) | 211 kg |
| Master (outer) cases per pallet (air) | 16 pc(s) |
| Products per pallet (air) | 64 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 127.1 cm |
| Pallet gross weight (sea) | 306.5 kg |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Products per pallet (sea) | 96 pc(s) |
| Pallet height (sea) | 183.9 cm |
| Shipping (inner) case gross weight | 12 kg |
| SKU | 698624 |
| MPN | DPS-500A |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
