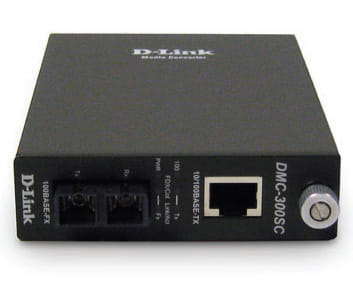

D-Link DMC-300SC, 10Base-T, 100BASE-T, 100Base-Fx, LAN, FCC Class B, VCCI Class B, CE Class B, 7.2 W, 300 g, 0 - 40 degC
Designed to convert 10BASE-T/100BASE-Tx copper to 100Base-Fx fiber media and vice versa, the DMC-300SC offers conversion from fiber to copper to minimize cost and extend hauls.
The DMC-300SC by D-Link is a media converter designed to connect 10BASE-T/100BASE-Tx copper to 100Base-Fx fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilizing the SC-Type connector. The DMC-300SC supports shortwave (Sx) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-x, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended
The DMC-300SC by D-Link is a media converter designed to connect 10BASE-T/100BASE-Tx copper to 100Base-Fx fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilizing the SC-Type connector. The DMC-300SC supports shortwave (Sx) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-x, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended
| Network | |
| Cabling technology Type of cable technology performance. | 10Base-T, 100BASE-T, 100Base-FX |
| Design | |
| LED indicators | LAN |
| Certification | FCC Class B, VCCI Class B, CE Class B |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 7.2 W |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 300 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 208 mm |
| Package depth The distance from the front to the back of the packaging. | 274 mm |
| Package height The distance from the top to the bottom of the packaging. | 68 mm |
| Package weight Weight of the packaged product. | 769 g |
| Logistics data | |
| Shipping (inner) case length | 37 cm |
| Shipping (inner) case width | 29.1 cm |
| Shipping (inner) case height | 45.2 cm |
| Shipping (inner) case gross weight | 8.39 kg |
| Shipping (inner) case net weight | 7.69 kg |
| Quantity per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 391 kg |
| Number of cartons per pallet (air) | 44 |
| Quantity per pallet (air) | 440 pc(s) |
| Pallet length | 110 cm |
| Pallet width | 120 cm |
| Pallet height (air) | 194.3 cm |
| Pallet gross weight (sea) | 391 kg |
| Number of cartons per pallet (sea) | 44 |
| Quantity per pallet (sea) | 440 pc(s) |
| Pallet height (sea) | 194.3 cm |
| Other features | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 89 x 119 x 25 mm |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | RJ-45, SC |
| Power requirements | 7.5V, 1.5A |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Cable type Type of cable e.g. electicity cable, optical cable. | UTP Cat. 3, 4, 5; 62.5/125μm MM Fiber; 10/125μm SM Fiber |
| SKU | 440444 |
| MPN | DMC-300SC |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
