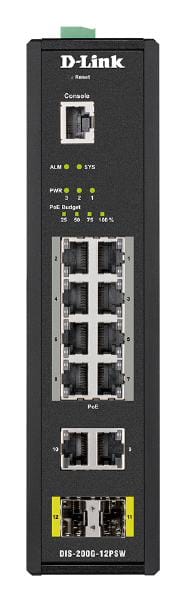

D-Link DIS-200G-12PSW 12-Port Gigabit Industrial Smart Managed PoE Switch With 10 1000BASE-T (8 PoE+) Ports

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L2
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
Configuring Location Settings (CLI)
System event log

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	10
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	10
Installed SFP modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.	2
Console port	RJ-45

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Flow control support
Link aggregation
Broadcast storm control
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Spanning tree protocol
Active link detection
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Port-based VLAN, Tagged VLAN, Voice VLAN

Optical fiber
Fiber ethernet cabling technology	1000BASE-X

Data transmission
Switching capacity The data transfer capacity of the switch per second.	24 Gbit/s
Forwarding rate	17.856 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	8000 entries
Store-and-forward
Jumbo frames support
Jumbo frames	9600

Security
DHCP features	DHCP client
IGMP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	802.1x RADIUS, SSL/TLS
Authentication	Port-based authentication
Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.	RADIUS
Queue scheduling algorithms	SPQ, Weighted Round Robin (WRR)

Multicast features
Multicast support

Protocols
Management protocols	SNMP v1/v2c/v3, SNTP, Telnet

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Stackable Devices can be placed on top of each other.
Product colour The colour e.g. red, blue, green, black, white.	Black
Housing material What the casing of the product is made of.	Metal
LED indicators
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP30
Wall mountable The product can be mounted on (attached to ) a wall.
DIN rail mounting
Certification	CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Performance
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	156452 h

Power
Power source What is providing power for the product e.g. mains electricity.	PoE
DC input voltage	46 - 54 V
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	7.02 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) voltage One of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.	260 V
Total Power over Ethernet (PoE) budget	240 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 75 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 2000 m
Heat dissipation The heat generated by the power supply.	887.16 BTU/h

Weight & dimensions
Width The measurement or extent of something from side to side.	171.2 mm
Depth The distance from the front to the back of something.	53 mm
Height The measurement of the product from head to foot or from base to top.	210 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.76 kg
