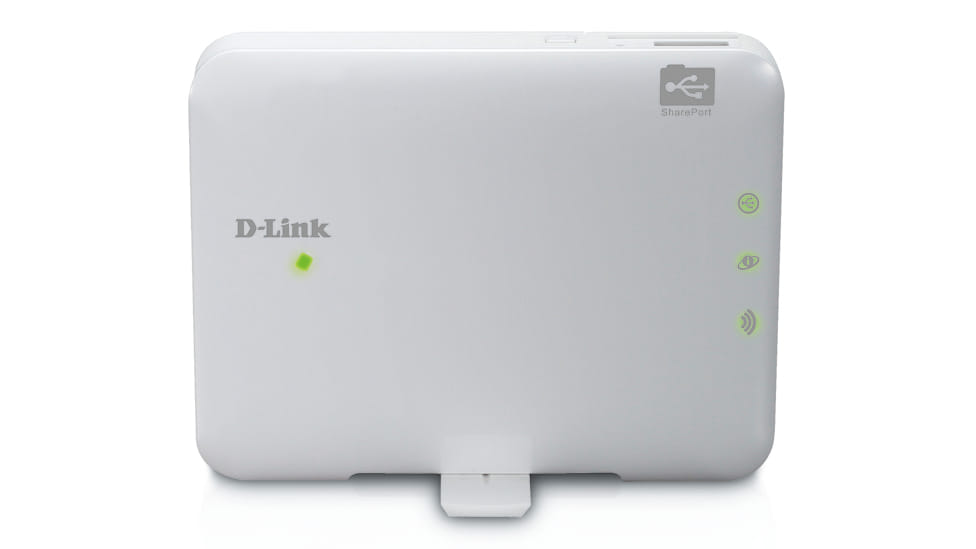

D-Link DIR-506L 4G/LTE Pocket Cloud Router

Item No:

D-Link DIR-506L 4G/LTE Pocket Cloud Router

Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 3-5 business days
Store Availability
  • 4-6 business days at Bankstown
  • 4-6 business days at Blacktown
  • 4-6 business days at Castle Hill
Shipping Estimate
Portable router with USB Sharing

DIR-506L is a portable router that lets you share your Internet connection and your files all from a compact device that fits in your pocket.

 Learn more about D-Link Cloud Services
and login to mydlink portal
  • Features
  • Description
  • Data Sheet (PDF)


  • Multiple Operation Modes, Router/Access Point, Repeater and Wi-Fi HotSpot Modes to Create Different Usages
  • IEEE 802.11n and 802.11g Compliant
  • Built-in Rechargeable Battery
  • Supports Power over USB for Added Convenience
  • Supports Secure Wireless Encryption Using WPA or WPA2
  • Wi-Fi Protected Setup (WPS) Push Button
  • SharePort® Mobile App for iPhone® and iPad® (Router and Wi-Fi Hotspot Mode Only)

Clearance Product – Limited Stock Only. Please contact your nearest store for availability.

WAN connection
Ethernet WAN
Wireless LAN features
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. Wi-Fi 4 (802.11n)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. 802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface. Fast Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 10,100 Mbit/s
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 1
Management features
Web-based management Using a website/web application to manage something.
Reset button
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. WEP,WPA,WPA2,WPS
Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication. NAT, SPI
Stateful Packet Inspection (SPI)
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Network address translation (NAT)
Antenna type Type of antenna, also known an aerial, e.g. external, internal. internal
Antennas quantity 2
Firmware upgradeable
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
System requirements
Windows operating systems supported Windows vesions wich can be used with the device.
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.
Weight & dimensions
Width The measurement or extent of something from side to side. 102.9 mm
Depth The distance from the front to the back of something. 22.3 mm
Height The measurement of the product from head to foot or from base to top. 79.8 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 125 g
Packaging data
AC adapter included
Other features
USB ports quantity 1
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. 2.0
Rack mounting The type of mounting that can position devices in a shelving system (rack).
xDSL connection
More Information
SKU 214445
Brand D-Link
Product Condition Brand New/Unused
Modem Type Ethernet
Wired/Wireless Wireless
Stock Availability Available for Shipping
Warranty Period 1 Year Warranty
Warranty Contact
