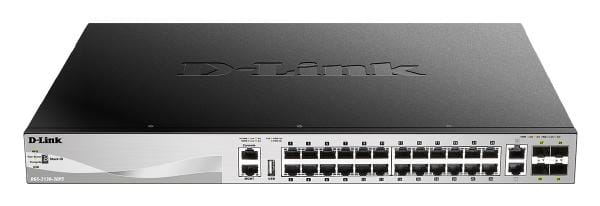

D-Link DGS-3130-30PS 30-Port Stackable Gigabit PoE+ Switch With 24 1000Base-T PoE/PoE+ Ports and 4 10 Gigabit SFP+ Ports and 2 10GBASE-T Ports

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L3
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
ARP inspection
System event log
MIB support	RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	24
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.	SFP+
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
Power connector	AC-in jack

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology	10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features	Private VLAN,Voice VLAN,Tagged VLAN,MAC address-based VLAN,Port-based VLAN
Number of VLANs	4000

Data transmission
Switching capacity The data transfer capacity of the switch per second.	168 Gbit/s
Forwarding rate	125 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	16384 entries
Number of queues	8
Jumbo frames support
Packet buffer memory	2 MB

Security
DHCP features	DHCP server,DHCP snooping,DHCP relay,DHCP client
Access Control List (ACL)
Access Control List (ACL) egress	512
Access Control List (ACL) ingress	2048
IGMP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SNMP,SNMPv3,SSH-2,SSL/TLS
SSH/SSL support
Loop protection
BPDU filtering/protection
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Root protection
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
DoS attack prevention
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features
Multicast support
Multicast features	Controllable multicast

Protocols
GARP VLAN Registration Protocol (GVRP)
Virtual Router Redundancy Protocol (VRRP)
Routing protocols	RIP

Design
Stackable Devices can be placed on top of each other.
Product colour The colour e.g. red, blue, green, black, white.	Black, Grey
LED indicators
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	3 fan(s)
Safety List of regulatory safety standards for all countries in which this product has been certified.	CB, cUL, BSMI, CCC
Certification	FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC

Performance
Physical stacking (units)	9
Virtual stacking (units)	32
Noise level The amplitude level of the undesired background noise, usually measured in decibels (db).	53.4 dB
Telnet
sFlow
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	409054 h

Technical details
Shipping (inner) case height	62.6 cm
Shipping (inner) case width	37.4 cm
Shipping (inner) case length	46.8 cm
Shipping (inner) case net weight	19.5 kg
Products per shipping (inner) case	3 pc(s)
Pallet gross weight (air)	399.8 kg
Master (outer) cases per pallet (air)	18 pc(s)
Products per pallet (air)	54 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	2.01 m
Pallet gross weight (sea)	399.8 kg
Master (outer) cases per pallet (sea)	18 pc(s)
Products per pallet (sea)	54 pc(s)
Pallet height (sea)	2.01 m
Shipping (inner) case gross weight	21.2 kg

Power
Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails.
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max) The maximum amount of power used by the device.	471.67 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	370 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation The heat generated by the power supply.	1609.41 BTU/h

Weight & dimensions
Width The measurement or extent of something from side to side.	440 mm
Depth The distance from the front to the back of something.	350 mm
Height The measurement of the product from head to foot or from base to top.	44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	4.66 kg

Packaging data
Package width The distance from one side of the packaging to the other.	450 mm
Package depth The distance from the front to the back of the packaging.	595 mm
Package height The distance from the top to the bottom of the packaging.	118 mm
Package weight Weight of the packaged product.	6.32 kg
