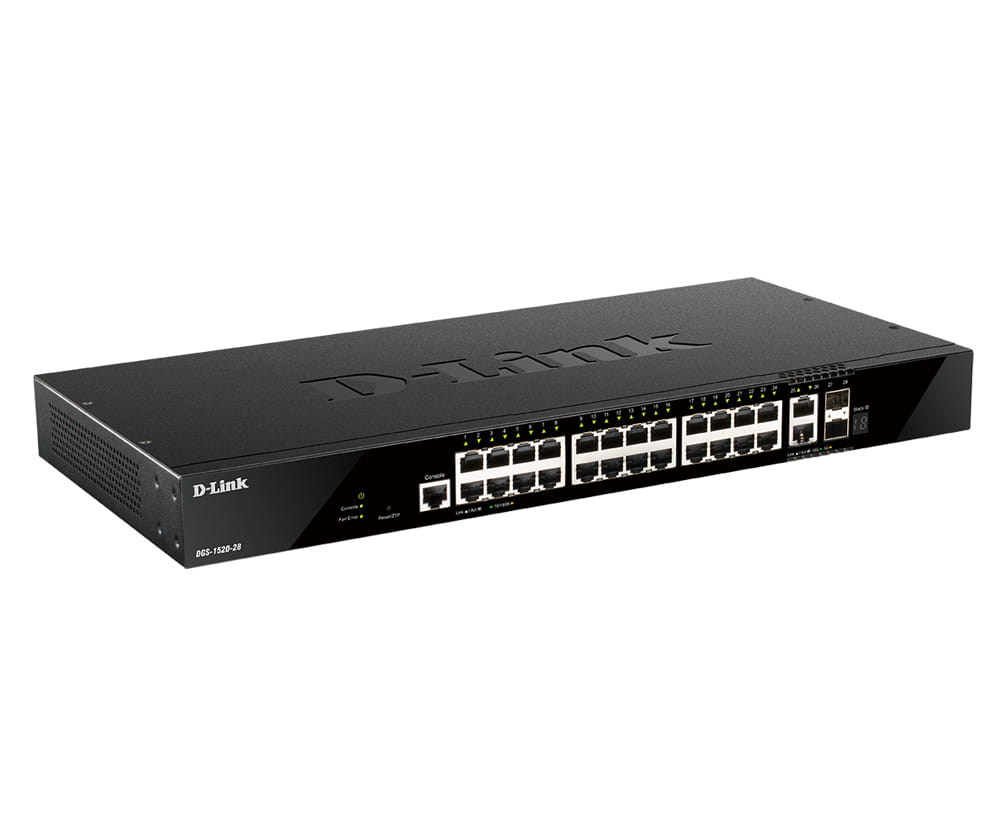

D-Link DGS-1520-28, Managed, L3, 10G Ethernet (100/1000/10000), 1U
The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications. For unrestricted Wi-Fi 6 edge device capabilities, PoE models offer four 2.5 GB Base-T ports for Multi-Gigabit connectivity. For SMBs with expanding networks and significant bandwidth growth, the DGS-1520 effortlessly adds highly cost-effective 10 GB connectivity to ensure seamless aggregation between access and core layers.
- Stackable Smart Gigabit
Stack up to eight switches for high-density Gigabit aggregation
- Zero Touch Provisioning
Effortless multi-site deployment
- Multi-Gigabit Ports
Four 2.5 GB Base-T ports for Wi-Fi 6 APs (PoE models)
- Flexible Stacking or Uplink
10 GB Base-T and/or SFP+ (fiber) ports for stacking or uplink
- High Capacity
Up to 188 Gbps switching capacity per switch
- PoE Capable
Up to 370 W PoE output per switch
- Power Redundancy
Connect with DPS-520 for power redundancy (non-PoE models)
- Advanced Manageability
Supports dynamic routing and selective Q-in-Q tagging
High Availability
The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity.
Zero Touch Provisioning
Zero Touch provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralized location, then install the DGS-1520 switches for effortless deployments.
Multi-Gigabit Support
Multi-Gigabit ports on the DGS-1520 Series switch (PoE models only) support 100 MB / 1 GB / 2.5 GB speeds to maximize various device capabilities, such as Wi-Fi 6 (802.11ax) access points, which can often exceed single Gigabit speeds.
Powerful Stacking Capability
Stack up to eight DGS-1520 switches with a total of 80 GB stacking bandwidth using hybrid mode (copper and/or fiber), increasing flexibility, scalability, and cost effectiveness for SMBs.
Minimize Outages with Power Redundancy
For a more resilient network infrastructure, connect up to four DGS-1520 switches (non-PoE models only) with the DPS-520 PoE redundant power supply system through the management port and actively back-up four devices to significantly reduce power redundancy costs.
Auto Discovery: Automatically detect power requirements of connected PD devices.
RPS Port Priority: Enables administrators to define RPS failover policy.
Status Reporting: Administrators can connect via web browser to remotely monitor DPS-520 status.
Low Network Latency, High PoE Budget
High Gigabit-port density with up to 188 GB total switching capacity, and up to 30 W per port with 370 W total PoE budget to power your PoE-enabled devices.
Enhanced Manageability for Peace of Mind
D-View 7
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
D-Link Network Assistant
Built upon a highly-intuitive user interface, the D-Link Network Assistant (DNA) simplifies device configuration using the D-Link Discovery Protocol, auto-detecting supported devices and displaying them for port-level configurations.
- Stackable Smart Gigabit
Stack up to eight switches for high-density Gigabit aggregation
- Zero Touch Provisioning
Effortless multi-site deployment
- Multi-Gigabit Ports
Four 2.5 GB Base-T ports for Wi-Fi 6 APs (PoE models)
- Flexible Stacking or Uplink
10 GB Base-T and/or SFP+ (fiber) ports for stacking or uplink
- High Capacity
Up to 188 Gbps switching capacity per switch
- PoE Capable
Up to 370 W PoE output per switch
- Power Redundancy
Connect with DPS-520 for power redundancy (non-PoE models)
- Advanced Manageability
Supports dynamic routing and selective Q-in-Q tagging
High Availability
The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity.
Zero Touch Provisioning
Zero Touch provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralized location, then install the DGS-1520 switches for effortless deployments.
Multi-Gigabit Support
Multi-Gigabit ports on the DGS-1520 Series switch (PoE models only) support 100 MB / 1 GB / 2.5 GB speeds to maximize various device capabilities, such as Wi-Fi 6 (802.11ax) access points, which can often exceed single Gigabit speeds.
Powerful Stacking Capability
Stack up to eight DGS-1520 switches with a total of 80 GB stacking bandwidth using hybrid mode (copper and/or fiber), increasing flexibility, scalability, and cost effectiveness for SMBs.
Minimize Outages with Power Redundancy
For a more resilient network infrastructure, connect up to four DGS-1520 switches (non-PoE models only) with the DPS-520 PoE redundant power supply system through the management port and actively back-up four devices to significantly reduce power redundancy costs.
Auto Discovery: Automatically detect power requirements of connected PD devices.
RPS Port Priority: Enables administrators to define RPS failover policy.
Status Reporting: Administrators can connect via web browser to remotely monitor DPS-520 status.
Low Network Latency, High PoE Budget
High Gigabit-port density with up to 188 GB total switching capacity, and up to 30 W per port with 370 W total PoE budget to power your PoE-enabled devices.
Enhanced Manageability for Peace of Mind
D-View 7
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
D-Link Network Assistant
Built upon a highly-intuitive user interface, the D-Link Network Assistant (DNA) simplifies device configuration using the D-Link Discovery Protocol, auto-detecting supported devices and displaying them for port-level configurations.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Web-based management Using a website/web application to manage something. |
 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 4 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 2 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP+ |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Copper ethernet cabling technology | 10BASE-T,100BASE-FX,100BASE-TX,1000BASE-T |
| Flow control support |
|
| Link aggregation |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Spanning tree protocol |
|
| Head-of-line (HOL) blocking |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 128 Gbit/s |
| Forwarding rate | 95.24 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16384 entries |
| Store-and-forward |
|
| Static route |
|
| Jumbo frames support |
|
| Jumbo frames | 12288 |
| Security | |
| DHCP features | DHCP snooping |
| IGMP snooping |
|
| Loop protection |
|
| BPDU filtering/protection |
|
| MAC address entries | Static MAC address entries |
| Multicast features | |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) |
|
| Routing protocols | OSPF,RIP,RIPng,VRRP |
| Design | |
| Stackable Devices can be placed on top of each other. |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators | Activity, Link, Power, Speed |
| Certification | CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A |
| Performance | |
| Physical stacking (units) | 8 |
| Virtual stacking (units) | 32 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 51.8 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 468252 h |
| Power | |
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| Power consumption (max) The maximum amount of power used by the device. | 30.4 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -5 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation The heat generated by the power supply. | 103.7 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 207.4 mm |
| Depth The distance from the front to the back of something. | 441 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.33 kg |
| SKU | 504587 |
| MPN | DGS-1520-28 |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
