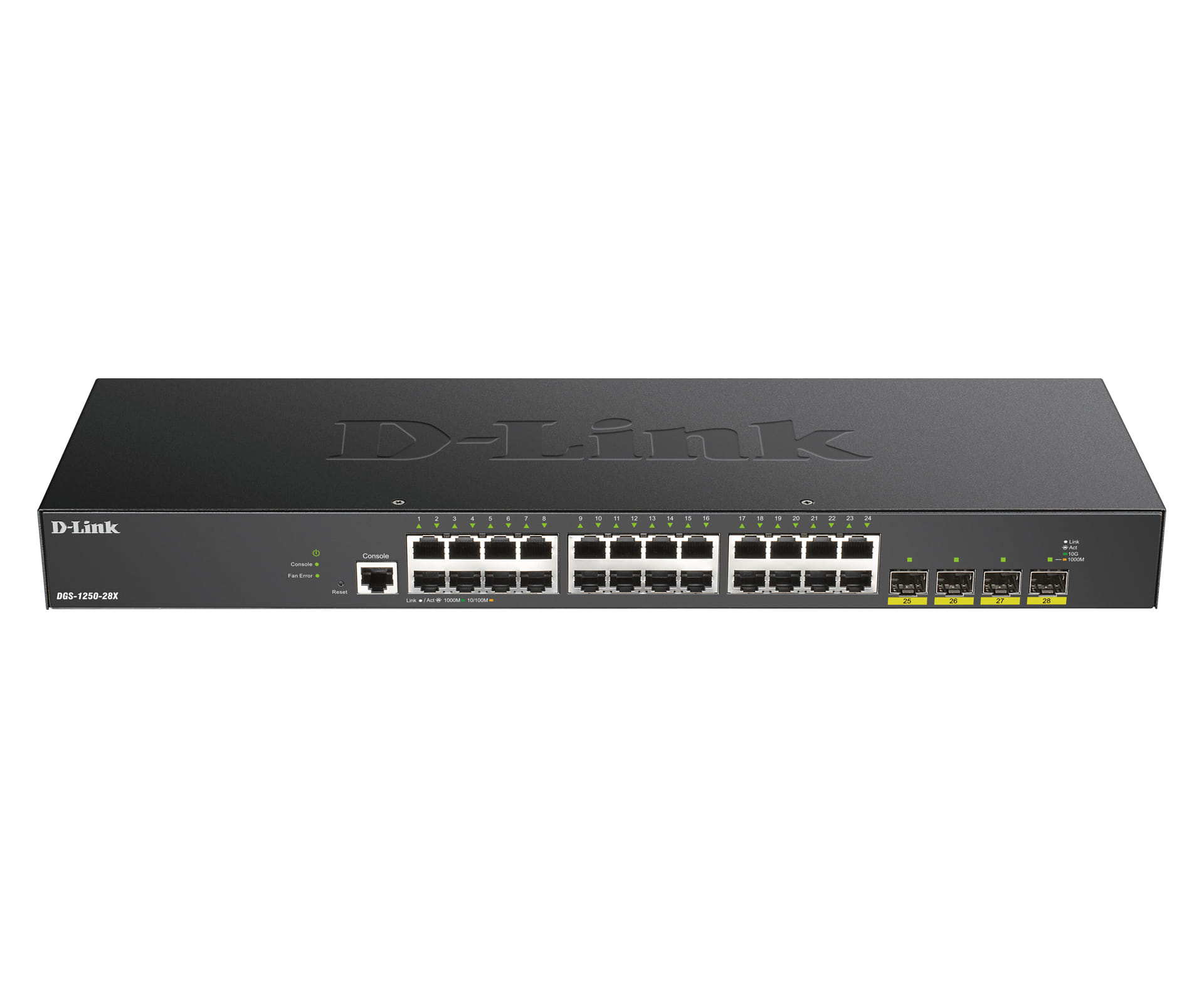

D-Link DGS-1250-28X, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex
Power & Value
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.
The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.
Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.
The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.
Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| ARP inspection |
|
| Configuring Location Settings (CLI) |
|
| System event log |
|
| MIB support | RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620, |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported | Cat5,Cat5e |
| Port mirroring |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Flow control support |
|
| Link aggregation |
|
| Broadcast storm control |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Spanning tree protocol |
|
| Head-of-line (HOL) blocking |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 4094 |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-FX,1000BASE-LHX,1000BASE-X,1000BASE‑LX,1000BASE‑SX,1000BASE‑ZX |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 128 Gbit/s |
| Forwarding rate | 95.24 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Store-and-forward |
|
| Static route |
|
| Number of static routes | 124 |
| Jumbo frames support |
|
| Jumbo frames | 12000 |
| Packet buffer memory | 12 MB |
| Security | |
| DHCP features | DHCP client,DHCP server,DHCP snooping |
| Access Control List (ACL) |
|
| Access Control List (ACL) rules | 768 |
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | EAP,MD5,PEAP,SSH,SSL/TLS,TTLS |
| Loop protection |
|
| IP-MAC-Port binding |
|
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators | Activity, Link, Power, Speed |
| Electromagnetic compatibility List of countries and their respective regulatory agency standards with which the product complies. | CE A, VCCI A, FCC A, IC, BSMI |
| Certification | CB, UL, BSMI, CCC |
| Performance | |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | DDR3-SDRAM |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 2048 MB |
| Flash memory | 64 MB |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 47.6 dB |
| Firmware upgradeable |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 743482.45 h |
| Technical details | |
| Shipping (inner) case height | 31.8 cm |
| Shipping (inner) case width | 47.8 cm |
| Shipping (inner) case length | 58.5 cm |
| Shipping (inner) case net weight | 11.6 kg |
| Quantity per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 16.2 kg |
| Pallet gross weight (air) | 407.6 kg |
| Number of cartons per pallet (air) | 24 |
| Quantity per pallet (air) | 120 pc(s) |
| Pallet length | 110 cm |
| Pallet width | 120 cm |
| Pallet height (air) | 2.04 m |
| Pallet gross weight (sea) | 407.6 kg |
| Number of cartons per pallet (sea) | 24 |
| Quantity per pallet (sea) | 120 pc(s) |
| Pallet height (sea) | 2.04 m |
| Power | |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 30.6 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -5 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation The heat generated by the power supply. | 104.346 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.86 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 282 mm |
| Package depth The distance from the front to the back of the packaging. | 563 mm |
| Package height The distance from the top to the bottom of the packaging. | 89 mm |
| Package weight Weight of the packaged product. | 2.97 kg |
| SKU | 485384 |
| MPN | DGS-1250-28X |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
