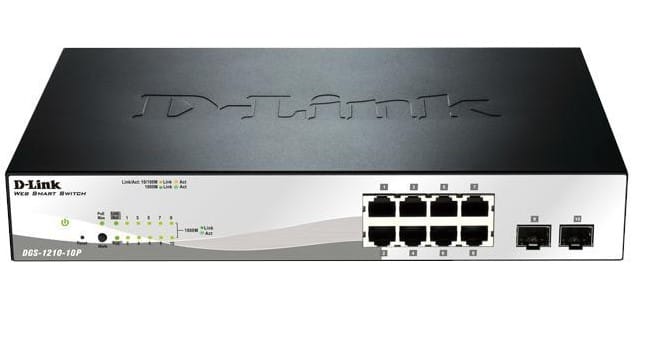

D-Link DGS-1210-10P 10-Port Gigabit Smart Managed PoE Switch With 8 PoE RJ45 And 2 SFP Ports

Item No:
223615
MPN:
DGS-1210-10P
$329.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store
D-Link Green, Seamless Integration, Extensive Layer 2 Features, QoS, Bandwidth Control, Versatile Management

D-Link DGS-1210-10P 10-Port Gigabit WebSmart PoE Switch - D-Link Green, Seamless Integration, Extensive Layer 2 Features, QoS, Bandwidth Control, Versatile Management.

Management features
Switch type What switch device has, managed or unmanaged. Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). L2
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). 8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 8
SFP module slots quantity 2
Power connector DC-in jack
Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology 10BASE-T,100BASE-T,1000BASE-T
Cable types supported Cat5,Cat5e
Port mirroring
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Flow control support
Link aggregation
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Data transmission
Switching capacity The data transfer capacity of the switch per second. 20 Gbit/s
Forwarding rate 14.88 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. 8000 entries
Store-and-forward
Packet buffer memory 0.512 MB
Security
Access Control List (ACL)
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Multicast features
Multicast support
Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Stackable Devices can be placed on top of each other.
Form factor The shape or design of the product. 1U
Product colour The colour e.g. red, blue, green, black, white. Black
LED indicators
Certification EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
Performance
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. 729258 h
Technical details
Shipping (inner) case height 31.7 cm
Shipping (inner) case width 34.6 cm
Shipping (inner) case length 38.2 cm
Shipping (inner) case net weight 11.1 kg
Quantity per shipping (inner) case 5 pc(s)
Shipping (inner) case gross weight 11.8 kg
Pallet gross weight (air) 449.5 kg
Number of cartons per pallet (air) 36
Quantity per pallet (air) 180 pc(s)
Pallet length 110 cm
Pallet width 120 cm
Pallet height (air) 140.3 cm
Pallet gross weight (sea) 662 kg
Number of cartons per pallet (sea) 54
Quantity per pallet (sea) 270 pc(s)
Pallet height (sea) 2.04 m
Power
Power consumption (max) The maximum amount of power used by the device. 80.6 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Total Power over Ethernet (PoE) budget 65 W
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. -5 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -20 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Heat dissipation The heat generated by the power supply. 373.96 BTU/h
Weight & dimensions
Width The measurement or extent of something from side to side. 280 mm
Depth The distance from the front to the back of something. 126 mm
Height The measurement of the product from head to foot or from base to top. 44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 950 g
Packaging data
Package width The distance from one side of the packaging to the other. 288 mm
Package depth The distance from the front to the back of the packaging. 331 mm
Package height The distance from the top to the bottom of the packaging. 72 mm
Package weight Weight of the packaged product. 2.21 kg
More Information
SKU 223615
MPN DGS-1210-10P
Brand D-Link
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Product Use Business
Warranty Period Limited Lifetime Warranty
Warranty Contact https://www.dlink.com.au/
