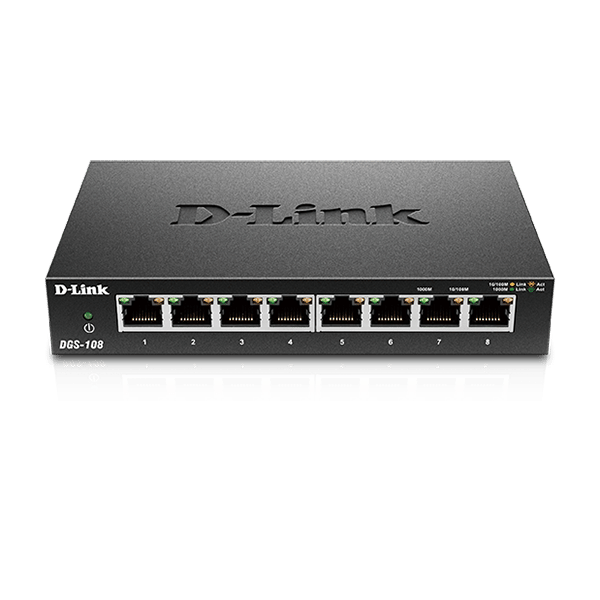

D-Link DGS-108 8-Port Gigabit Desktop Switch (Metal Housing)

Item No:
223692
MPN:
DGS-108
$59.00

D-Link DGS-108 8-Port Gigabit Desktop Switch (Metal Housing)

$59.00
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 2-3 business days
Store Availability
  • 3-4 business days at Bankstown Store
  • 3-4 business days at Castle Hill Store
Shipping Estimate
8 x Gigabit Ethernet ports, Metal Housing, Fanless design, D-Link Green power saving features

D-Link DGS-108 8-Port Gigabit Desktop Switch

Management features
Switch type What switch device has, managed or unmanaged. Unmanaged
Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). 8
Power connector DC-in jack
Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Copper ethernet cabling technology 1000BASE-T,100BASE-TX,10BASE-T
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Flow control support
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Data transmission
Supported data transfer rates Rates at which data can be transferred. May vary according to network configurations. 10/100/1000 Mbps
Switching capacity The data transfer capacity of the switch per second. 16 Gbit/s
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. 8000 entries
Store-and-forward
Maximum data transfer rate 1 Gbit/s
Jumbo frames support
Packet buffer memory 0.128 MB
Security
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Product colour The colour e.g. red, blue, green, black, white. Black
Housing material What the casing of the product is made of. Metal
LED indicators Link,Power,Y
Certification FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Performance
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. 2053751 h
Power
Input current 1 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. 4.5 W
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. 10 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Heat dissipation The heat generated by the power supply. 9.548 BTU/h
Weight & dimensions
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 440 g
Other features
Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. 2000 Mbit/s
Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). 162 x 102 x 28 mm
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired
Input voltage The voltage (V) which is required to power the product. 5 V
More Information
SKU 223692
MPN DGS-108
Brand D-Link
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Warranty Period Limited Lifetime Warranty
Warranty Contact https://www.dlink.com.au/
