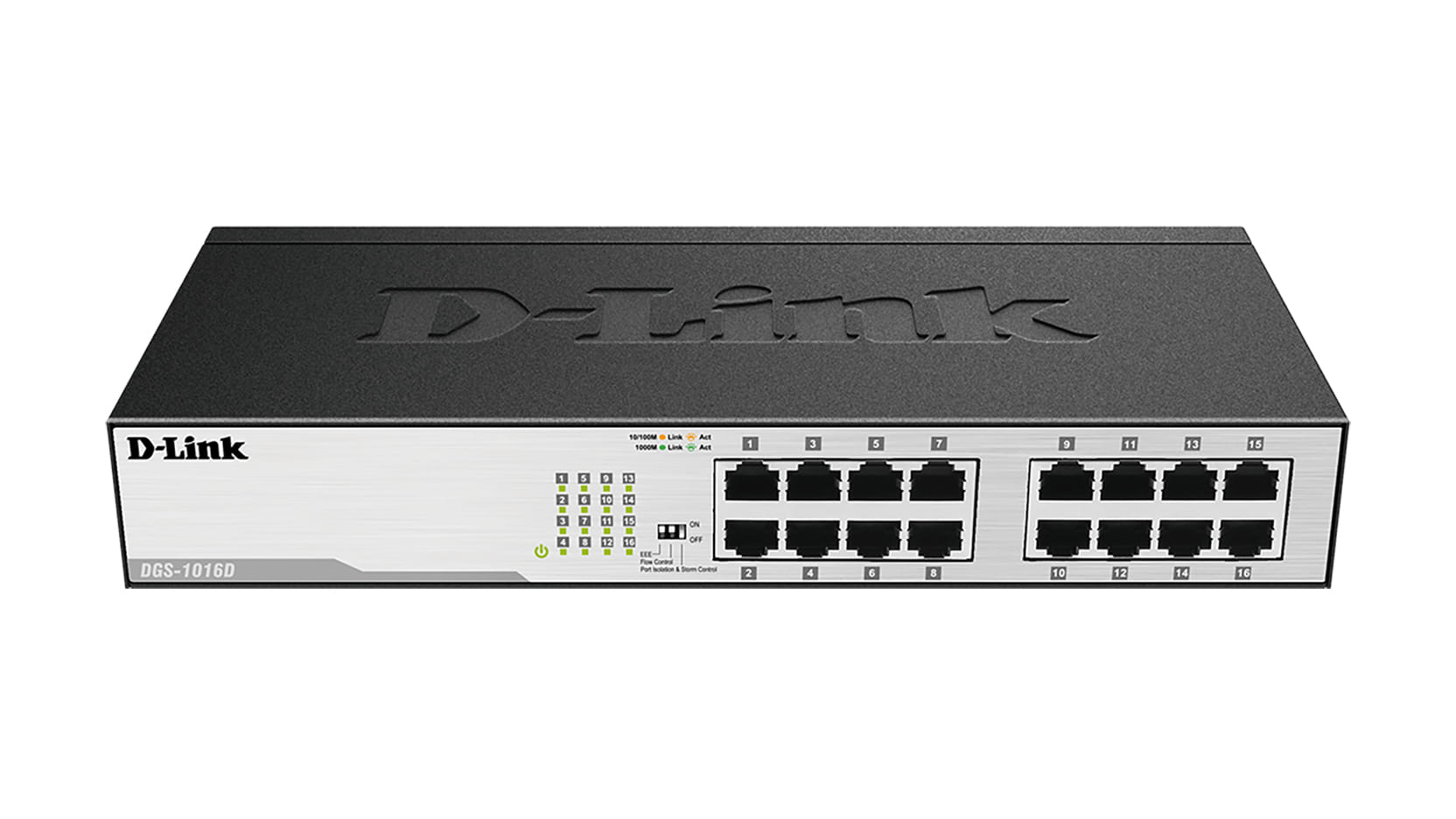

D-Link DGS-1016D 16-Port Gigabit Unmanaged Switch (Metal Housing)

Item No:
223664
MPN:
DGS-1016D
$118.83 $106.87 While stocks last!

D-Link DGS-1016D 16-Port Gigabit Unmanaged Switch (Metal Housing)

$118.83 $106.87 While stocks last!
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 2-3 business days
Store Availability
  • 3-4 business days at Bankstown
  • 3-4 business days at Blacktown
  • 3-4 business days at Castle Hill
Shipping Estimate
Fanless design, Metal Housing, Non-blocking Architecture, D-Link Green Technology

D-Link DGS-1016D 16-Port Gigabit Unmanaged Switch

Management features
Switch type What switch device has, managed or unmanaged. Unmanaged
Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). 16
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). Gigabit Ethernet (10/100/1000)
Power connector AC-in jack
Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology 10BASE-T,100BASE-T,1000BASE-T
Cable types supported Cat3,Cat4,Cat5,Cat5e
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Flow control support
Broadcast storm control
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Active link detection
MAC address auto-learning supported
MAC address auto-aging supported
Data transmission
Switching capacity The data transfer capacity of the switch per second. 32 Gbit/s
Forwarding rate 23.81 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. 8000 entries
Store-and-forward
Number of queues 8
Jumbo frames support
Jumbo frames 10000
Packet forwarding rate (1 Gbps) 14880 pps
Packet forwarding rate (100 Mbps) 148800 pps
Packet forwarding rate (10 Mbps) 1488000 pps
Packet buffer memory 0.5 MB
Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Stackable Devices can be placed on top of each other.
Form factor The shape or design of the product. 1U
Product colour The colour e.g. red, blue, green, black, white. Black,Silver
Housing material What the casing of the product is made of. Metal
LED indicators Activity,Link,Power,Speed
Electromagnetic compatibility List of countries and their respective regulatory agency standards with which the product complies. ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC
Certification cUL/UL CE LVD CCC CB BSMI
Performance
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. 1882372 h
Power
Power supply included There is a power supply with this product.
AC input voltage The voltage of the AC electricity that is inputted into the product. 100 - 240 V
AC input frequency 50/60 Hz
Input current 0.2 A
Power consumption (max) The maximum amount of power used by the device. 10.07 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -10 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Heat dissipation The heat generated by the power supply. 34.3 BTU/h
Weight & dimensions
Width The measurement or extent of something from side to side. 280 mm
Depth The distance from the front to the back of something. 125 mm
Height The measurement of the product from head to foot or from base to top. 44 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 1.02 kg
More Information
SKU 223664
MPN DGS-1016D
Brand D-Link
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Warranty Period Limited Lifetime Warranty
Warranty Contact https://www.dlink.com.au/
