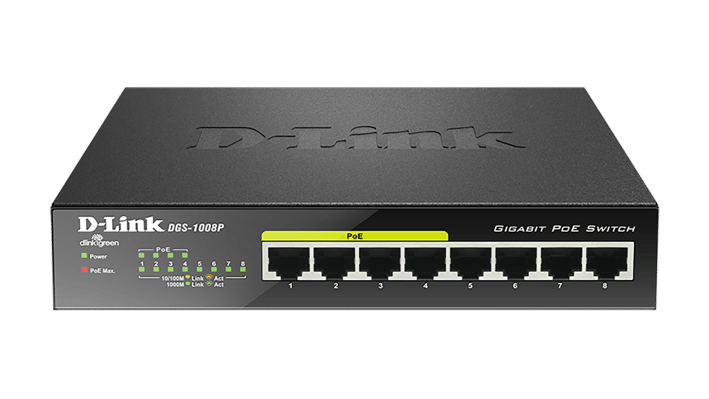

D-Link DGS-1008P 8-Port Gigabit PoE+ Unmanaged Switch (Metal Housing)

Item No:
223650
MPN:
DGS-1008P
$150.87 $130.63 Special Ends: 03/03/2024

D-Link DGS-1008P 8-Port Gigabit PoE+ Unmanaged Switch (Metal Housing)

$150.87 $130.63 Special Ends: 03/03/2024
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 2-3 business days
Store Availability
  • 3-4 business days at Bankstown
  • 3-4 business days at Blacktown
  • 3-4 business days at Castle Hill
Shipping Estimate
Fanless Design, Compact Design, 4 PoE Ports, Quick, Simple Plug-and-Play Installation

D-Link DGS-1008P 8-Port Gigabit PoE Switch

Management features
Switch type What switch device has, managed or unmanaged. Unmanaged
Quality of Service (QoS) support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). 8
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). Gigabit Ethernet (10/100/1000)
Power connector DC-in jack
Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.3,IEEE 802.3ac,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Copper ethernet cabling technology 10BASE-T,100BASE-T,1000BASE-T
Cable types supported Cat3,Cat4,Cat5,Cat5e
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Flow control support
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Auto-negotiation
Data transmission
Switching capacity The data transfer capacity of the switch per second. 16 Gbit/s
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. 8000 entries
Store-and-forward
Packet forwarding rate (1 Gbps) 14880 pps
Packet forwarding rate (100 Mbps) 148800 pps
Packet forwarding rate (10 Mbps) 1488000 pps
Packet buffer memory 0.256 MB
Design
Product colour The colour e.g. red, blue, green, black, white. Black
LED indicators Activity,Link,PoE,Power,Speed,Status
Power
Power supply included There is a power supply with this product.
Input current 1.5 A
Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) ports quantity 4
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 68 W
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Weight & dimensions
Width The measurement or extent of something from side to side. 190 mm
Depth The distance from the front to the back of something. 120 mm
Height The measurement of the product from head to foot or from base to top. 38 mm
More Information
SKU 223650
MPN DGS-1008P
Brand D-Link
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Product Use Business
Warranty Period 3 Years Warranty
Warranty Contact https://www.dlink.com.au/
