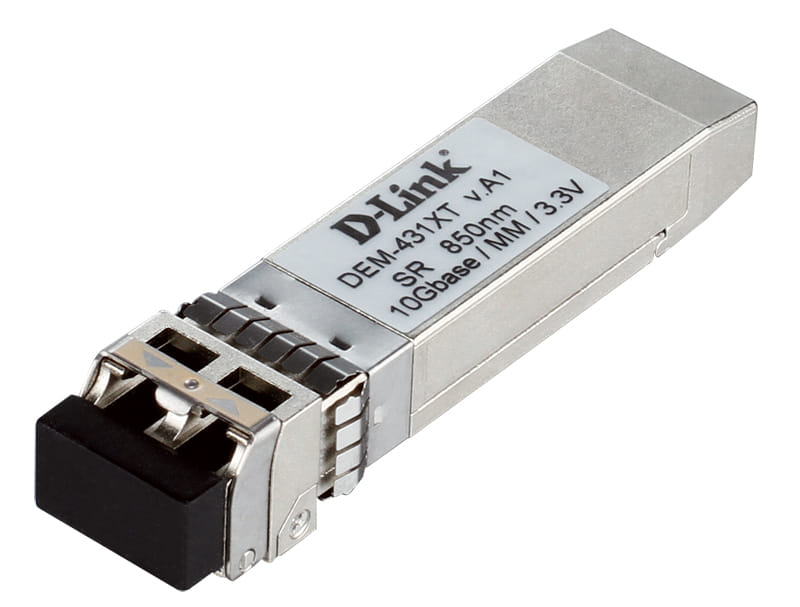

D-Link DEM-431XT, Fiber optic, 10000 Mbit/s, SFP+, LC, 50/125,62.5/125
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported |
 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | LC |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 300 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 850 nm |
| Tx power (min) | -6.5 dBmW |
| Tx power (max) | -1 dBmW |
| Rx power (min) | -11.1 dBmW |
| Rx power (max) | -1 dBmW |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ae |
| Features | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Safety List of regulatory safety standards for all countries in which this product has been certified. | UL, TUV, CDRH |
| Certification | CE, FCC, VCCI, C-Tick |
| Power | |
| Maximum voltage | 3.3 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 300 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 14.8 mm |
| Depth The distance from the front to the back of something. | 11.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 56.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 18 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 74 mm |
| Package depth The distance from the front to the back of the packaging. | 131 mm |
| Package height The distance from the top to the bottom of the packaging. | 49 mm |
| Package weight Weight of the packaged product. | 64 g |
| Logistics data | |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case gross weight | 4.2 kg |
| Shipping (inner) case net weight | 3.2 kg |
| Quantity per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 272 kg |
| Number of cartons per pallet (air) | 60 |
| Quantity per pallet (air) | 3000 pc(s) |
| Pallet length | 102 cm |
| Pallet width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 272 kg |
| Number of cartons per pallet (sea) | 60 |
| Quantity per pallet (sea) | 3000 pc(s) |
| Pallet height (sea) | 199 cm |
| SKU | 440201 |
| MPN | DEM-431XT |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
