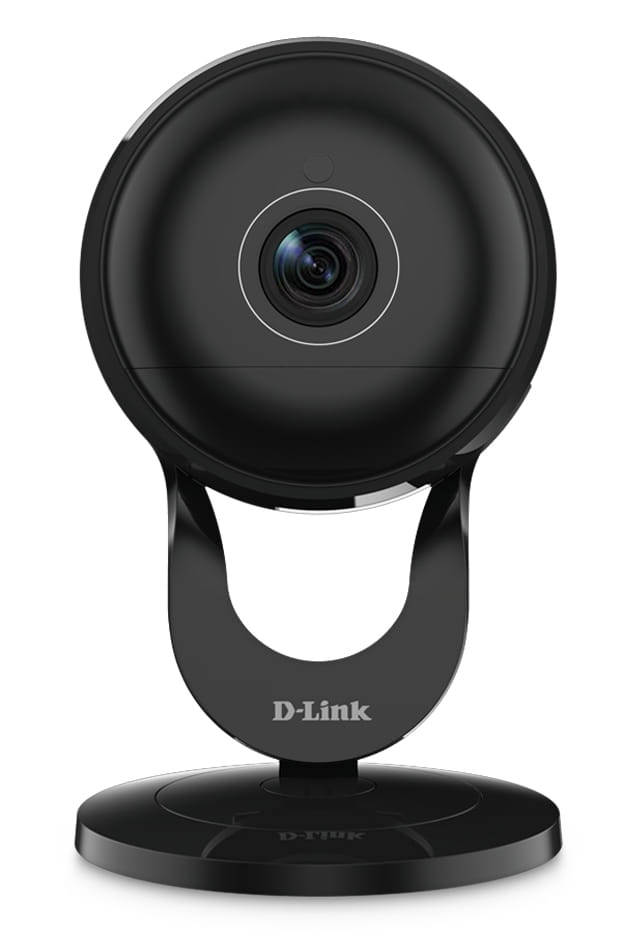

D-Link DCS-2630L Full HD Ultra-Wide View Wi-Fi Camera ORDER

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wireless
Day/night mode
Certification	CE, CE LVD, FCC Class B, ICES

Design
Form factor The shape or design of the product.	Cube
Mounting type Type of mounting e.g. wall mounting.	Wall
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators	Power,Status

Camera
Field of view (FOV) angle	180°
Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance.	182°
Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance.	112°
Viewing angle, diagonal	182°

Image sensor
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 3 mm (1 / 3")
Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Zoom capability The amount that the camera lens can zoom.
Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology.	8x
Maximum aperture number	2
Fixed focal length	1.72 mm

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	3.6576 m
LED type	IR

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	1920 x 1080 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	3 MP
Video formats supported The type of video formats that can be used by this device.	H.264,M-JPEG
Video compression formats	H.264,M-JPEG
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	320 x 176,640 x 352,1280 x 720 (HD 720),1920 x 1080 (HD 1080)
Supported video modes The video modes that can be displayed by the device.	720p,1080p
Frame rate	30 fps
Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness
Flip & mirror
Time stamp overlay
Text caption overlay

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Audio system System used to play music or speech.	2-way
Audio system full duplex
Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4.	AAC,ADPCM,PCM
Built-in microphone Microphone that is found inside the product.
Audio detection

Network
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP Server, Samba Client, PPPoE, UPnP port forwarding, LLTD, HTTPs for configuration, Bonjour
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 5 (802.11ac)

Storage
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash)

Security
Password protection type	Supervisor,User
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	HTTPS
HTTPS encryption
Light sensor
Motion sensor Device that detects moving objects, particularly people. A motion detector is often integrated as a component of a system that automatically performs a task or alerts a user of motion in an area. Motion detectors form a vital component of security, automated lighting control, home control, energy efficiency, and other useful systems.

Management features
Reset button
WPS push button

Power
DC output voltage	5
DC output current	1.5 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%

System requirements
Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device.	Android 2.1,Android 2.2,Android 2.3,Android 3.0,Android 3.1,Android 3.2,Android 4.0,Android 4.1,Android 4.2,Android 4.3,Android 4.4,Android 5.0,Android 5.1,iOS 6.1,iOS 7.0,iOS 7.1,iOS 7.2,iOS 8.0,iOS 8.1,iOS 8.2,iOS 8.3,iOS 8.4,iOS 9.0,iOS 9.1,iOS 9.2,iOS 9.3

Weight & dimensions
Width The measurement or extent of something from side to side.	85.6 mm
Depth The distance from the front to the back of something.	85.6 mm
Height The measurement of the product from head to foot or from base to top.	140.5 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	344.7302 g

Packaging content
Number of cameras The quantity of cameras that product can support.	1
Mounting kit
Quick installation guide

Other features
USB connectivity The product has USB connector.
