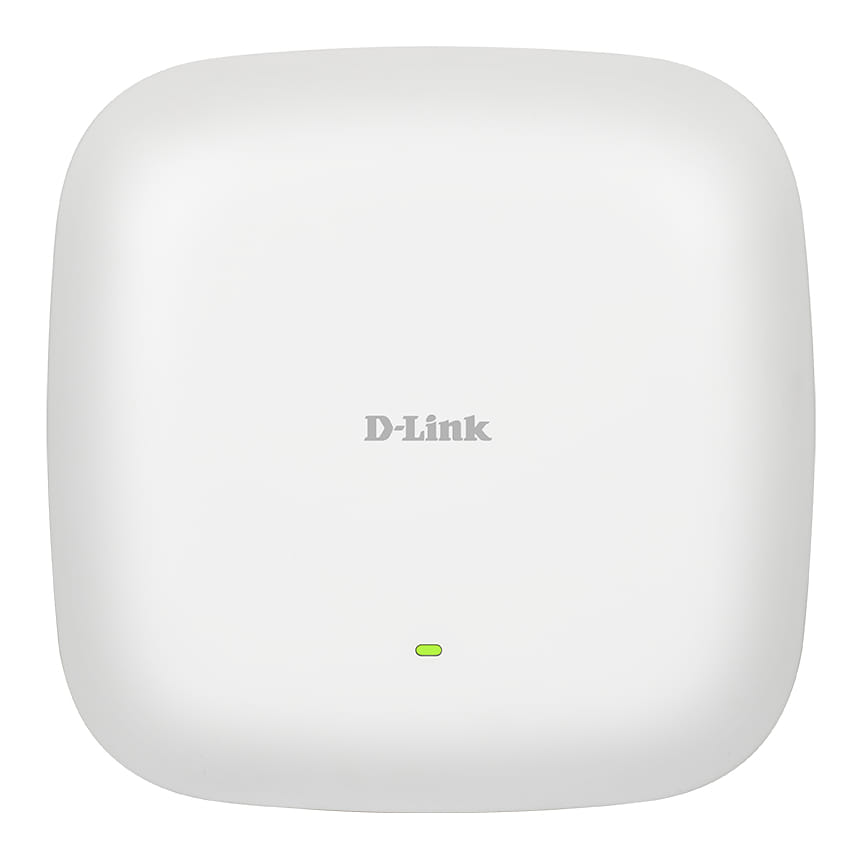

D-Link AX3600 Wi
Business 'class Wi 'Fi 6.
The Wi-Fi 6-ready DAP-X2850 provides businesses of all sizes with multi-gigabit speeds, significantly increased capacity and interference-free coverage, with centralised management. Ideal for SMB, retailers, hospitality, campuses, and managed service providers that need to keep data flowing, even in the most device-dense areas.
Manage your business network with ease.
The DAP-X2850 works with Nuclias Connect - a software-based management platform (with optional hardware controller) that can be used on-premises, or as a cloud solution hosted on a public cloud service. Admin tasks can be swiftly carried out from the Nuclias Connect app, or server/PC-based software for easy access, automation, and network scalability.
Easily manage your network with Nuclias Connect
Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.
Next-gen Wi-Fi 6
Delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards
2.5 Gigabit Uplink
x2 LAN ports (2.5G / 1G) offer an expansive backhaul to your wired network, eliminating bottlenecks at the AP
Free-to-download software & app
Rapidly setup, manage and monitor APs locally via our free network management software, or remotely with the Nuclias Connect app
Flexible installation with PoE
Supports Power over Ethernet (802.3at) for a simpler installation with less cable clutter & includes a wall-plate design for installation on Ethernet wall sockets.
Intelligent, secure performance
Superior throughput with dual-band, 4x4 MIMO technology, band steering & airtime fairness intelligently manages users with WPA3 wireless encryption
Minimise the hassle of admin tasks
Empower admins to work efficiently & effectively with role-based options that enable delegated access across your network. You can deploy, configure, update and expand rapidly, even across multiple sites, and utilise the intuitive dashboard to keep issues to an absolute minimum.
Made for IoT
Target Wake Time (TWT) reduces power consumption of Wi-Fi 6 and IoT devices.
Next 'gen Wi 'Fi 6 performance that turbo boosts your business.
With combined Wi-Fi 6 802.11ax speeds of up to 3,600 Mbps, the DAP-X2850 enables large data transfers and superior quality video streaming, even in highly congested environments.
Wi-Fi 6 delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards.
Optimised Wi 'Fi for a superior client experience.
The DAP-X2850 supports Band steering, 4x4 MU-MIMO and beamforming - all designed to work together to alleviate congestion.
And Load Balancing and Airtime Fairness technology distributes workloads between APs for optimum resource utilisation - allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.
Multiple Operation Modes.
The DAP-X2850 can be configured to your network needs and optimise performance.
- Access point
- Wireless distribution system (WDS) with access point
- WDS/bridge (no AP broadcasting)
- Wireless client
Simple and clean installation, anywhere.
It can be ceiling-mounted, wall-mounted, or placed on a desk. The DAP-X2850 s PoE function allows for easy installation with a single cable. Perfect for advanced installations in areas where power outlets are not readily available.
Advanced and customisable on 'premise network management.
Nuclias is a unified network management tool with cost-effective scalability, customisable controls, and is designed as a solution for every type of business.
Efficient multi'site management.
Manage multiple sites easily by setting authority levels for head and branch-level offices and setting different configurations. Network devices can be pre-configured before being dispatched to regional offices, allowing faster and more efficient deployments.
Manage your business network, like never before.
Nuclias Connect enables you to manage and control your network from anywhere with an Internet connection. It provides an extensive understanding of your network and its users through traffic analytics and status reports, which can be viewed at a glance through the intuitive interface via a browser or the app. Insights derived from this traffic data can be used to create business value, and traffic can be viewed across the entire network, and to the level of a single AP.
Your Guests Online in No Time with a Captive Portal.
Get your guests online quickly and easily with a captive portal. Not only can you let them connect using just their email address, Facebook or Google account, it also gives your business the opportunity to increase brand awareness and advertise promotions. At the same time, it can provide user insights that allow businesses to better understand their customers.
Scale your Wi 'Fi alongside your business.
Nuclias Connect gives you the financial and technical flexibility to expand from a small network to up to 1,000 Access Points while retaining a robust and centralised management system.
Dedicated controller to manage your network.
The Nuclias Connect Hub (DNH-100) is an optional but efficient hardware controller that s dedicated to provide an inexpensive, maintenance-free and ready-made solution for configuring and managing your network. Simply plug in and power on.
The Wi-Fi 6-ready DAP-X2850 provides businesses of all sizes with multi-gigabit speeds, significantly increased capacity and interference-free coverage, with centralised management. Ideal for SMB, retailers, hospitality, campuses, and managed service providers that need to keep data flowing, even in the most device-dense areas.
Manage your business network with ease.
The DAP-X2850 works with Nuclias Connect - a software-based management platform (with optional hardware controller) that can be used on-premises, or as a cloud solution hosted on a public cloud service. Admin tasks can be swiftly carried out from the Nuclias Connect app, or server/PC-based software for easy access, automation, and network scalability.
Easily manage your network with Nuclias Connect
Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.
Next-gen Wi-Fi 6
Delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards
2.5 Gigabit Uplink
x2 LAN ports (2.5G / 1G) offer an expansive backhaul to your wired network, eliminating bottlenecks at the AP
Free-to-download software & app
Rapidly setup, manage and monitor APs locally via our free network management software, or remotely with the Nuclias Connect app
Flexible installation with PoE
Supports Power over Ethernet (802.3at) for a simpler installation with less cable clutter & includes a wall-plate design for installation on Ethernet wall sockets.
Intelligent, secure performance
Superior throughput with dual-band, 4x4 MIMO technology, band steering & airtime fairness intelligently manages users with WPA3 wireless encryption
Minimise the hassle of admin tasks
Empower admins to work efficiently & effectively with role-based options that enable delegated access across your network. You can deploy, configure, update and expand rapidly, even across multiple sites, and utilise the intuitive dashboard to keep issues to an absolute minimum.
Made for IoT
Target Wake Time (TWT) reduces power consumption of Wi-Fi 6 and IoT devices.
Next 'gen Wi 'Fi 6 performance that turbo boosts your business.
With combined Wi-Fi 6 802.11ax speeds of up to 3,600 Mbps, the DAP-X2850 enables large data transfers and superior quality video streaming, even in highly congested environments.
Wi-Fi 6 delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards.
Optimised Wi 'Fi for a superior client experience.
The DAP-X2850 supports Band steering, 4x4 MU-MIMO and beamforming - all designed to work together to alleviate congestion.
And Load Balancing and Airtime Fairness technology distributes workloads between APs for optimum resource utilisation - allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.
Multiple Operation Modes.
The DAP-X2850 can be configured to your network needs and optimise performance.
- Access point
- Wireless distribution system (WDS) with access point
- WDS/bridge (no AP broadcasting)
- Wireless client
Simple and clean installation, anywhere.
It can be ceiling-mounted, wall-mounted, or placed on a desk. The DAP-X2850 s PoE function allows for easy installation with a single cable. Perfect for advanced installations in areas where power outlets are not readily available.
Advanced and customisable on 'premise network management.
Nuclias is a unified network management tool with cost-effective scalability, customisable controls, and is designed as a solution for every type of business.
Efficient multi'site management.
Manage multiple sites easily by setting authority levels for head and branch-level offices and setting different configurations. Network devices can be pre-configured before being dispatched to regional offices, allowing faster and more efficient deployments.
Manage your business network, like never before.
Nuclias Connect enables you to manage and control your network from anywhere with an Internet connection. It provides an extensive understanding of your network and its users through traffic analytics and status reports, which can be viewed at a glance through the intuitive interface via a browser or the app. Insights derived from this traffic data can be used to create business value, and traffic can be viewed across the entire network, and to the level of a single AP.
Your Guests Online in No Time with a Captive Portal.
Get your guests online quickly and easily with a captive portal. Not only can you let them connect using just their email address, Facebook or Google account, it also gives your business the opportunity to increase brand awareness and advertise promotions. At the same time, it can provide user insights that allow businesses to better understand their customers.
Scale your Wi 'Fi alongside your business.
Nuclias Connect gives you the financial and technical flexibility to expand from a small network to up to 1,000 Access Points while retaining a robust and centralised management system.
Dedicated controller to manage your network.
The Nuclias Connect Hub (DNH-100) is an optional but efficient hardware controller that s dedicated to provide an inexpensive, maintenance-free and ready-made solution for configuring and managing your network. Simply plug in and power on.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 3600 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1147 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500 Mbit/s |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 2.483, 5.15 - 5.35, 5.47 - 5.85 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u |
| Automatic channel selection |
|
| MIMO |
|
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) |
|
| Wi-Fi roaming |
|
| Wireless isolation |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 30000 h |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 64-bit WEP,128-bit WEP,SSH,SSL/TLS,WPA,WPA-Enterprise,WPA-PSK,WPA2,WPA2-Enterprise,WPA3,WPA3-Enterprise,WPA3-PSK |
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| Service Set Identifier (SSID) features | SSID broadcast, SSID broadcast on/off |
| Number of SSID supported | 16 |
| IGMP snooping |
|
| Auto Wireless Distribution System (WDS) |
|
| Remote Authentication Dial-In User Service (RADIUS) |
|
| Protocols | |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Management protocols | SNMP (v1, v2c, v3), Telnet, SSH, SSL |
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Command-line interface (CLI) |
|
| Syslog |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 3 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Output voltage | 12 V |
| Output current | 2.5 A |
| Power consumption (max) The maximum amount of power used by the device. | 19.44 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Ceiling, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Plastic |
| Reset button |
|
| LED indicators | Power, Status |
| Certification | FCC |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 5.5 dBi |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 212.4 mm |
| Depth The distance from the front to the back of something. | 212.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 46.7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 763.8 g |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| SKU | 541889 |
| MPN | DAP-X2850 |
