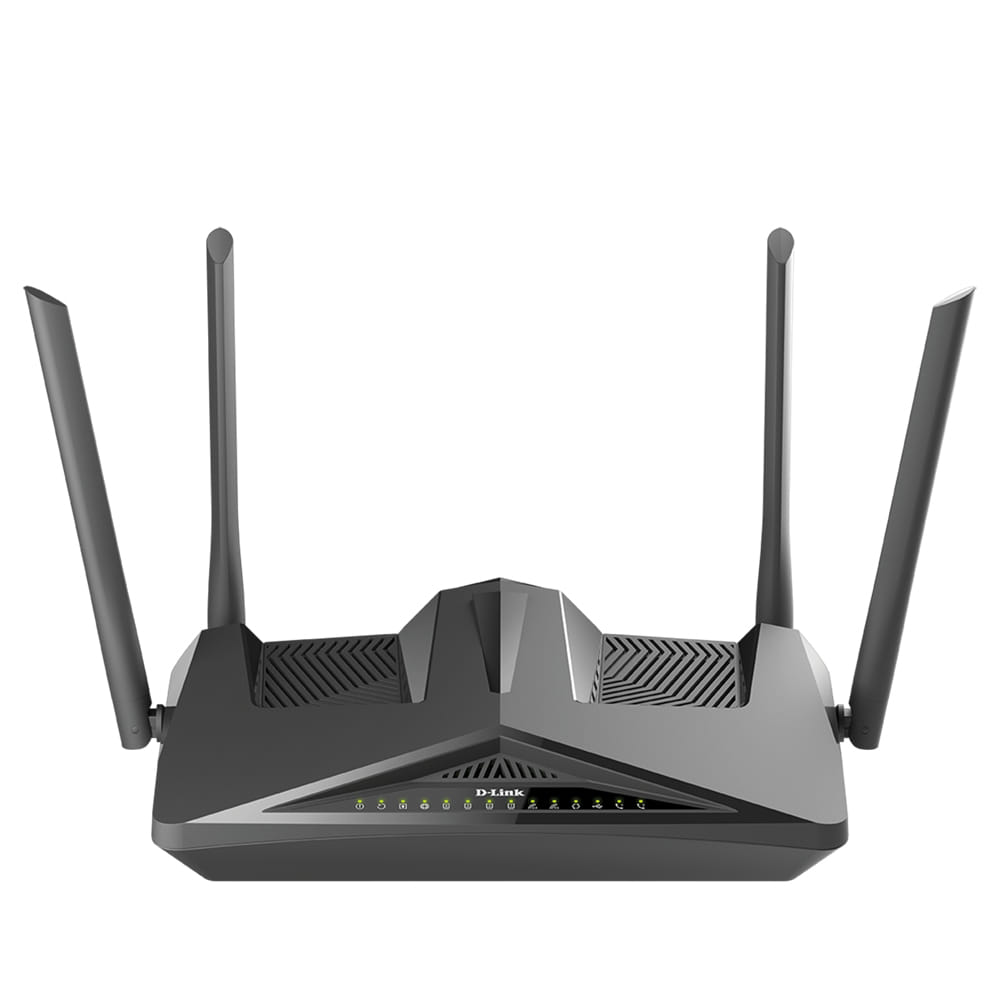

D-Link AX1800 Wi-Fi 6 VDSL2/ ADSL2+ Modem Router with VoIP
Integrated VDSL/ ADSL2+ Modem for universal DSL connectivity in Australia and New Zealand with VLAN tagging
Wi-Fi 6 technology provides faster speeds, greater capacity and less network congestion
Speeds up to AX1800 (1200Mbps on the 5GHz and 574Mbps on the 2.4GHz)
One dedicated Gigabit WAN port and four Gigabit LAN ports provide optional wired connectivity
Connect up to two phones to makes VoIP calls over the Internet*
Connect a 4G LTE USB Adapter DWM-222 for cellular broadband access or failover
OFDMA and MU-MIMO technology communicate more data to more devices while simultaneously reducing lag
BSS Colouring Technology reduces interference, making more efficient use of Wi-Fi spectrum
Increased battery life of connected devices with Target Wake Time technology
Supports the latest WPA3 encryption
| WAN connection | |
| Ethernet WAN |
 |
| SIM card slot Whether the device features a SIM card slot. |
 |
| 3G/4G USB modem compatibility |
|
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1800 Mbit/s |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.3a, 802.3u, 802.3ab, 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 1200 Mbit/s |
| WLAN data transfer rate (second band) | 574 Mbit/s |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN interface type The characteristics of the Ethernet LAN interface. | Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.3ab, IEEE 802.3u |
| DSL features | |
| ADSL2+ |
|
| VDSL2 |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 5 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| RJ-11 ports quantity | 3 |
| Management features | |
| Reset button |
|
| MU-MIMO technology |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA2, WPA3, WPS |
| Firewall |
|
| DoS attack prevention |
|
| Filtering |
|
| MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists. |
|
| IP address filtering |
|
| DMZ support |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Indication light |
|
| LED indicators | DSL, Power, USB, WAN, WLAN, WPS |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Product type The sub-category of the product. | Tabletop router |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antennas quantity | 4 |
| Power | |
| Power source type What the power source is. | AC |
| Output voltage | 12 V |
| Output current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 251.6 mm |
| Depth The distance from the front to the back of something. | 166.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 194.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 485.6 g |
| Packaging data | |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| AC adapter included |
|
| Quick installation guide |
|
| SKU | 679399 |
| MPN | DSL-X1852E/AU |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Wired/Wireless | Wireless |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
