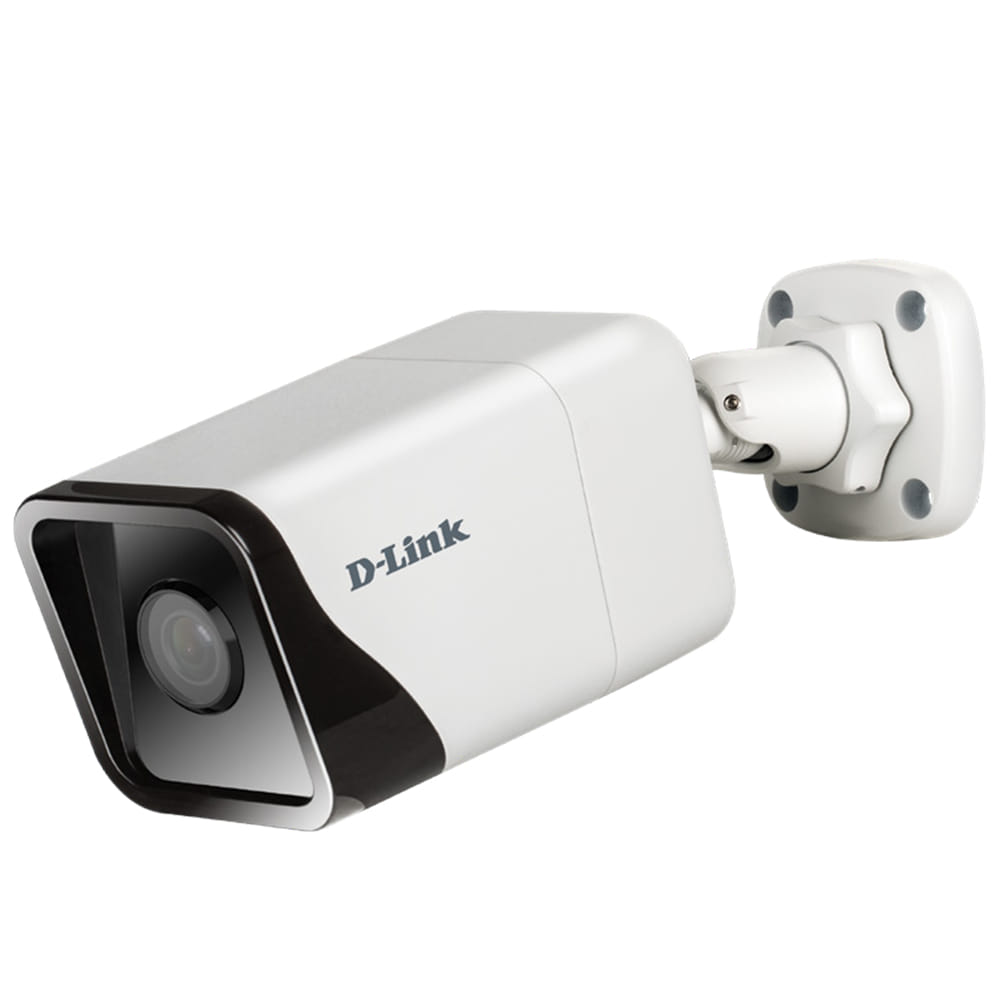

D-Link DCS-F4705E, IP security camera, Indoor & outdoor, Wired, CE, FCC, RCM, Wall/Pole, White
Reliable, Rugged 24-Hour Surveillance
The D-Link DCS-F4705E Vigilance 5 Megapixel Outdoor Bullet Camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The Camera uses a high-sensitivity 5-megapixel progressive scan CMOS sensor to deliver truly superior quality video, day and night. With an all-in-one rugged design, the DCS-F4705E can be deployed reliably without the need for additional accessories.
5 Megapixel Resolution
Crisp, clear recording
and playback
30m Night Vision
Built-in IR LEDs guarantee clear & bright images, even in total darkness
Weatherproof Housing
IP67 rated housing make it ideal for even the most demanding of surveillance locations
Artificial Intelligence
Powerful AI Monitoring with motion, face, human and vehicle detection
H.265 support
HEVC (High-Efficiency Video Coding) support to optimise network bandwidth for better visual quality and recording performance
Wide Dynamic Range
Easily identify subjects
in any lighting
ONVIF Compliant
Integrate this Camera with many ONVIF-capable third party software or NVR solutions
Free Surveillance Management Software
Includes DCMS+ Management Software to view and manage multiple Cameras and NVRs
Security in High Definition
Crisp 5 Megapixel video gives you a clear view of what s going on. High definition resolution and a compact design makes the DCS-F4705E ideal for small, medium and large enterprise installations.
Continuous Monitoring
with Night Vision
Built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the Camera to capture video even in low-light or no-light conditions. Combined with an IR-Cut Filter, the DCS-F4705E can also provide sharp grayscale video in low-light conditions. The Camera provides real-time video compression in H.265, H.264, and MJPEG formats using the embedded powerful SoC (System-on-Chip).
Always on, Rain or Shine
Equipped to handle dust, rain, sleet and snow with an IP67 weatherproof housing and a glare-reducing sun shield, the DCS-F4705E is rugged enough to keep an eye on your toughest outdoor areas without the need for additional accessories.
Ideal for Security Installers
Specifically designed for any security installer looking to offer digital video surveillance, the Vigilance Range of Cameras is designed for easy selection and simple installation. You ll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.
PoE = Convenience
Power over Ethernet makes surveillance installation simpler, safer and less expensive. The Camera has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
Vigilance Range
The Vigilance Range offers professional, high resolution video surveillance that is easy to install, weatherproof and highly affordable. The range consists of Cameras designed specifically to meet different surveillance and environmental requirements such as recording video without additional software or equipment, and vandal-proof protection.
Video Management Software
The D-Link DCMS+ Software provides a surveillance solution for managing multiple Network Video Recorders (NVRs) and Cameras. It is used for NVR and Camera management, real-time surveillance, PTZ control, setting of front-end parameters of Cameras, video search, video playback, video downloading, alarm search, etc. Featuring easy installation and convenient operation, the system supports all the essential functions needed for security.
Quality Footage, Whatever The Conditions on the Ground
No matter the time of day, the Vigilance Series of cameras stand ready to be on the lookout and keep you informed thanks to these essential features
3D Noise Filtering
3D Filtering reduces image noise, improving image quality, especially in low-light environments.
Infrared LEDs
Night can be a tricky time for surveillance. However, built-in IR LED illuminators make sure nothing stays hidden, even in complete darkness.
Wide Dynamic Range
During periods of extreme contrast, such as under the midday sun, Wide Dynamic Range (WDR) improves image quality. Areas which may previously have been bleached out by excessive light or shaded areas thrown into utter darkness are now once again visible.
The D-Link DCS-F4705E Vigilance 5 Megapixel Outdoor Bullet Camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The Camera uses a high-sensitivity 5-megapixel progressive scan CMOS sensor to deliver truly superior quality video, day and night. With an all-in-one rugged design, the DCS-F4705E can be deployed reliably without the need for additional accessories.
5 Megapixel Resolution
Crisp, clear recording
and playback
30m Night Vision
Built-in IR LEDs guarantee clear & bright images, even in total darkness
Weatherproof Housing
IP67 rated housing make it ideal for even the most demanding of surveillance locations
Artificial Intelligence
Powerful AI Monitoring with motion, face, human and vehicle detection
H.265 support
HEVC (High-Efficiency Video Coding) support to optimise network bandwidth for better visual quality and recording performance
Wide Dynamic Range
Easily identify subjects
in any lighting
ONVIF Compliant
Integrate this Camera with many ONVIF-capable third party software or NVR solutions
Free Surveillance Management Software
Includes DCMS+ Management Software to view and manage multiple Cameras and NVRs
Security in High Definition
Crisp 5 Megapixel video gives you a clear view of what s going on. High definition resolution and a compact design makes the DCS-F4705E ideal for small, medium and large enterprise installations.
Continuous Monitoring
with Night Vision
Built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the Camera to capture video even in low-light or no-light conditions. Combined with an IR-Cut Filter, the DCS-F4705E can also provide sharp grayscale video in low-light conditions. The Camera provides real-time video compression in H.265, H.264, and MJPEG formats using the embedded powerful SoC (System-on-Chip).
Always on, Rain or Shine
Equipped to handle dust, rain, sleet and snow with an IP67 weatherproof housing and a glare-reducing sun shield, the DCS-F4705E is rugged enough to keep an eye on your toughest outdoor areas without the need for additional accessories.
Ideal for Security Installers
Specifically designed for any security installer looking to offer digital video surveillance, the Vigilance Range of Cameras is designed for easy selection and simple installation. You ll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.
PoE = Convenience
Power over Ethernet makes surveillance installation simpler, safer and less expensive. The Camera has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
Vigilance Range
The Vigilance Range offers professional, high resolution video surveillance that is easy to install, weatherproof and highly affordable. The range consists of Cameras designed specifically to meet different surveillance and environmental requirements such as recording video without additional software or equipment, and vandal-proof protection.
Video Management Software
The D-Link DCMS+ Software provides a surveillance solution for managing multiple Network Video Recorders (NVRs) and Cameras. It is used for NVR and Camera management, real-time surveillance, PTZ control, setting of front-end parameters of Cameras, video search, video playback, video downloading, alarm search, etc. Featuring easy installation and convenient operation, the system supports all the essential functions needed for security.
Quality Footage, Whatever The Conditions on the Ground
No matter the time of day, the Vigilance Series of cameras stand ready to be on the lookout and keep you informed thanks to these essential features
3D Noise Filtering
3D Filtering reduces image noise, improving image quality, especially in low-light environments.
Infrared LEDs
Night can be a tricky time for surveillance. However, built-in IR LED illuminators make sure nothing stays hidden, even in complete darkness.
Wide Dynamic Range
During periods of extreme contrast, such as under the midday sun, Wide Dynamic Range (WDR) improves image quality. Areas which may previously have been bleached out by excessive light or shaded areas thrown into utter darkness are now once again visible.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| People counting function |
 |
| Wide Dynamic Range (WDR) |
|
| Certification | CE, FCC, RCM |
| Design | |
| Form factor The shape or design of the product. | Bullet |
| Mounting type Type of mounting e.g. wall mounting. | Wall/Pole |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Dust resistant, Water resistant |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP67 |
| Weatherproof |
|
| Camera | |
| Lens viewing angle, horizontal | 105° |
| Lens viewing angle, vertical | 56° |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | Auto |
| Camera shutter type Indicates if the camera shutter is mechanical or electronic. | Electronic |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/5 - 1/20000 s |
| Adjustment shutter speed | Auto/Manual |
| Image sensor | |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Number of effective pixels (H x V) | 2880 x 1620 pixels |
| Lens system | |
| Maximum aperture number | 2 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 2.8 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2880 x 1620 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 5 MP |
| Video compression formats | H.264, H.265, HEVC |
| Video recording Recording moving visual images. |
|
| Frame rate | 30 fps |
| Noise reduction |
|
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
|
| Time stamp overlay |
|
| Text caption overlay |
|
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) |
|
| Highlight Compensation (HLC) |
|
| Smart IR |
|
| Audio | |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 55 dB |
| Built-in microphone Microphone that is found inside the product. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4/IPv6 802.1x HTTP HTTPS TCP/IP UDP/IP RTSP DHCP NTP RTCP/RTP PPPoE SMTP DNS UPnP FTP ARP SNMP TLS/SSL |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Client interoperability | ONVIF, SDK, CGI |
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD |
| Maximum memory card size The maximum size of memory card that can be used with this device. | 256 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Security | |
| Video motion detection |
|
| Active tampering alarm |
|
| Intelligent Video Surveillance (IVS) system features | Human detection, Intrusion, Tripwire, Vehicle detection |
| Management features | |
| Web browser |
|
| Reset button |
|
| Remotely operated The device can be controlled by remote control, which is a device that controls an apparatus by means of radio or infrared signals. |
|
| Smartphone remote support The product can be used to remotely manage a smartphone. |
|
| Power | |
| Power source type What the power source is. | DC, PoE |
| Power consumption (max) The maximum amount of power used by the device. | 6 W |
| DC output voltage | 12 |
| DC output current | 1.5 A |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64, Windows 11 |
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android, iOS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 188 mm |
| Depth The distance from the front to the back of something. | 64 mm |
| Height The measurement of the product from head to foot or from base to top. | 64 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 600 g |
| Features | |
| NDAA Compliance |
|
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| AC adapter included |
|
| Other features | |
| Browser supported List of supported browsers for this product. | Chrome, Firefox, Edge, Safari (MJPEG only) |
| SKU | 762932 |
| MPN | DCS-F4705E |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
