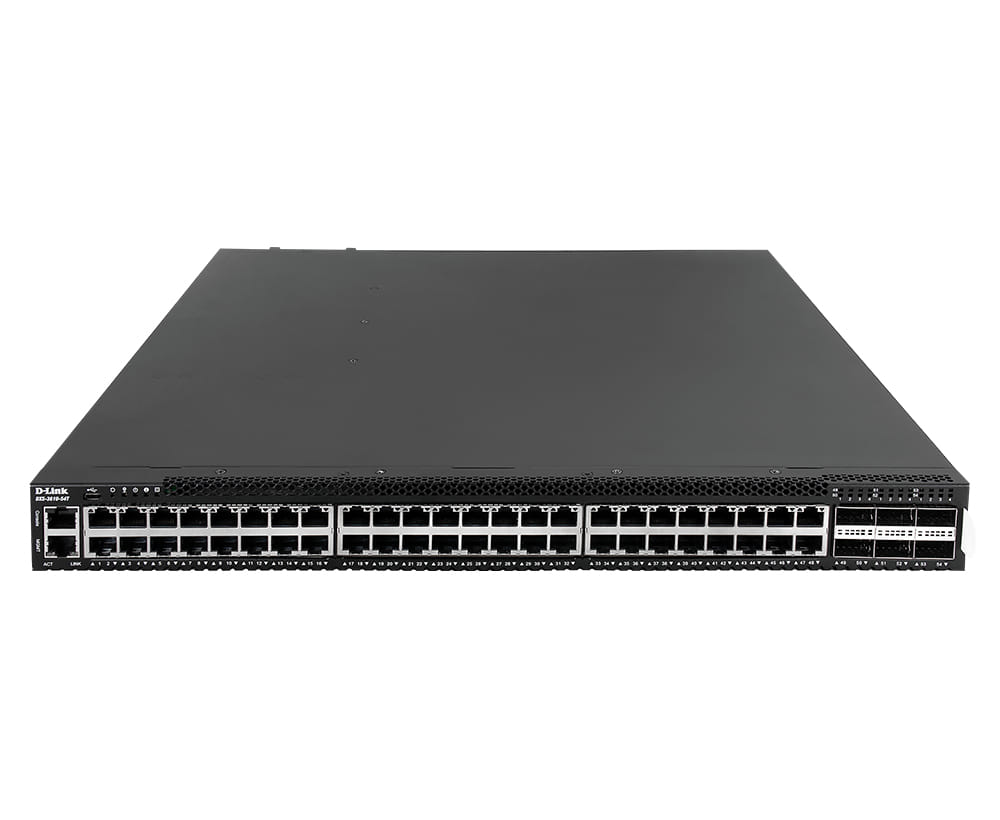

D-Link 54-Port 10G Layer 3 Managed Stackable Switch
Item No:
656271
MPN:
DXS-3610-54T
$25,699.95
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
The DXS-3610 Layer 3 Stackable 10G/100G Managed Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
High speed network infrastructure with multiple interfaces
48 x 10GBASE-T ports and 6 x 40/100Gb QSFP+/QSFP28 ports
Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
OpenFlow 1.3 compliance for SDN-enabled network compatibility
Modular PSU (1+1) and fan (N+1) with load sharing capabilities
Switch Resource Management (SRM) for flexible system resource manageability
Switch locator LED and ID tag for maintenance convenience
Upgradable license for full L3 and MPLS applications
48 x 10GBASE-T ports and 6 x 40/100Gb QSFP+/QSFP28 ports
Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
OpenFlow 1.3 compliance for SDN-enabled network compatibility
Modular PSU (1+1) and fan (N+1) with load sharing capabilities
Switch Resource Management (SRM) for flexible system resource manageability
Switch locator LED and ID tag for maintenance convenience
Upgradable license for full L3 and MPLS applications
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| ARP inspection |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 48 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 48 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 6 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Port mirroring |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| IP routing |
|
| Flow control support |
|
| Link aggregation |
|
| Spanning tree protocol |
|
| Head-of-line (HOL) blocking |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | MAC address-based VLAN,Port-based VLAN,Protocol-based VLAN |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 2211.84 Gbit/s |
| Forwarding rate | 1607.04 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 294912 entries |
| Number of queues | 8 |
| Static route |
|
| Jumbo frames support |
|
| Jumbo frames | 9436 |
| Packet buffer memory | 32 MB |
| Security | |
| DHCP features | DHCP client,DHCP server,DHCP snooping |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| SSH/SSL support |
|
| BPDU filtering/protection |
|
| Multicast features | |
| Multicast support |
|
| Protocols | |
| Management protocols | SNMP v1/v2c/v3 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Form factor The shape or design of the product. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 5 fan(s) |
| Electromagnetic compatibility List of countries and their respective regulatory agency standards with which the product complies. | FCC, CE, C-Tick, IC, VCCI |
| Certification | CB, cUL, LVD |
| Performance | |
| Physical stacking (units) | 12 |
| Virtual stacking (units) | 32 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 76.6 dB |
| Power | |
| Power supply included There is a power supply with this product. |
|
| Redundant power supply (RPS) support Additional power supply which can run a computer if the main power supply fails. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 108.2 W |
| Power consumption (max) The maximum amount of power used by the device. | 330.2 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation The heat generated by the power supply. | 1126 BTU/h |
| SKU | 656271 |
| MPN | DXS-3610-54T |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Product Use | General |
