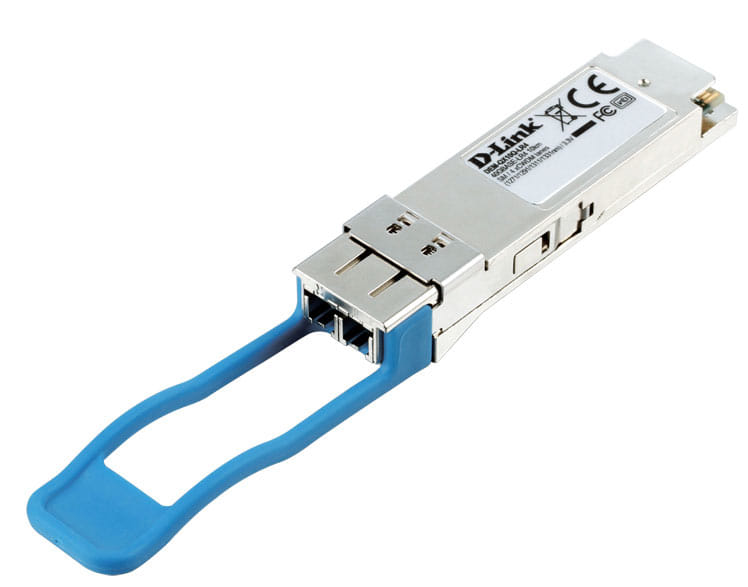

D-Link DEM-QX10Q-LR4, Fiber optic, 40000 Mbit/s, QSFP+, LC, LR4, 10000 m
D-Link s 40G QSFP+ Module series are hot-swappable QSFP+ transceivers that plug into QSFP+ slots on switches and support 40G Ethernet. The D-Link 40GBASE QSFP+ Module Series transceivers offer customers a wide variety of 40G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Quad Small Form-factor Pluggable Plus Format
The transceivers use the Quad Small Form-factor Pluggable Plus format (QSFP+) connectors,which integrate four transmitting and four receiving channels. QSFP+ supports up to 10.5 Gb/s per channel for applications such as 40G Ethernet.
Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.
40G Ethernet speeds
The transceivers all support 40G Ethernet, which results in very fast data transmissions of up to 40 Gbit/s. This is 40 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Digital Diagnostics Monitoring (DDM)
All 40G QSFP+ modules feature DDM real time monitoring of critical parameters, including transmitted and received power, temperature, and voltage. This allows for convenient monitoring of the module s fiber connection and ensures that network connection issues are detected early.
Quad Small Form-factor Pluggable Plus Format
The transceivers use the Quad Small Form-factor Pluggable Plus format (QSFP+) connectors,which integrate four transmitting and four receiving channels. QSFP+ supports up to 10.5 Gb/s per channel for applications such as 40G Ethernet.
Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.
40G Ethernet speeds
The transceivers all support 40G Ethernet, which results in very fast data transmissions of up to 40 Gbit/s. This is 40 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Digital Diagnostics Monitoring (DDM)
All 40G QSFP+ modules feature DDM real time monitoring of critical parameters, including transmitted and received power, temperature, and voltage. This allows for convenient monitoring of the module s fiber connection and ensures that network connection issues are detected early.
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 40000 Mbit/s |
| Interface type | QSFP+ |
| Single-mode fiber (SMF) supported |
 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | LC |
| SFP transceiver standard | LR4 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 10000 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 1331 nm |
| Tx power (min) | -4 dBmW |
| Tx power (max) | 8.3 dBmW |
| Rx power (min) | 3.5 dBmW |
| Rx power (max) | -13.7 dBmW |
| Link budget | 19.8 dB |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ba |
| Digital Diagnostics Monitoring (DDM) |
|
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Blue, Silver |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Certification | • FCC Class B • CE Class B • VCCI Class B • FDA/CDRH • TUV • CSA |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 3.3 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 1.13 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 18.4 mm |
| Depth The distance from the front to the back of something. | 118 mm |
| Height The measurement of the product from head to foot or from base to top. | 12.9 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 40 g |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 74 mm |
| Package depth The distance from the front to the back of the packaging. | 131 mm |
| Package height The distance from the top to the bottom of the packaging. | 49 mm |
| Package weight Weight of the packaged product. | 64 g |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Shipping (inner) case length | 36 cm |
| Shipping (inner) case width | 26 cm |
| Shipping (inner) case height | 31 cm |
| Shipping (inner) case net weight | 3.2 kg |
| Products per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 272 kg |
| Master (outer) cases per pallet (air) | 60 pc(s) |
| Products per pallet (air) | 3000 pc(s) |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Pallet height (air) | 199 cm |
| Pallet gross weight (sea) | 272 kg |
| Master (outer) cases per pallet (sea) | 60 pc(s) |
| Products per pallet (sea) | 3000 pc(s) |
| Pallet height (sea) | 199 cm |
| Shipping (inner) case gross weight | 4.2 kg |
| SKU | 631197 |
| MPN | DEM-QX10Q-LR4 |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Product Use | General |
