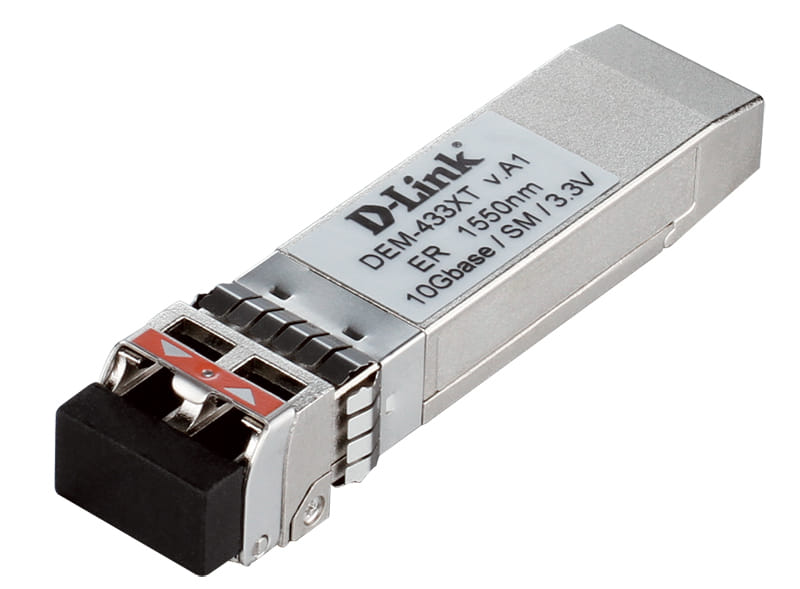

D Link 10GBase ER SFP , Fiber optic, 10000 Mbit/s, SFP , LC, 9/125 m, ER
D Link s 10G SFP Module series are hot swappable SFP transceivers that plug into SFP slots on switches and support 10G Ethernet. The D Link 10GBASE SFP Module Series transceivers offer a wide variety of 10G Ethernet connectivity options for data centres, enterprise wiring closets, and service provider transport applications.
Enhanced Small Form factor Pluggable Format
The transceivers use the Enhanced Small Form factor Pluggable format (SFP ). The SFP form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot Pluggable
All D Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.
10G Ethernet speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Enhanced Small Form factor Pluggable Format
The transceivers use the Enhanced Small Form factor Pluggable format (SFP ). The SFP form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.
Hot Pluggable
All D Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.
10G Ethernet speeds
The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported |
 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | ER |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 40000 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 1550 nm |
| Tx power (min) | -3 dBmW |
| Tx power (max) | 3 dBmW |
| Rx power (min) | -14.1 dBmW |
| Rx power (max) | -1 dBmW |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ae |
| Duplex system A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously. | Full |
| Features | |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Hot-swap |
|
| Safety List of regulatory safety standards for all countries in which this product has been certified. | CSA, TUV, CDRH |
| Certification | CE, FCC, VCCI |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 3.3 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 14.8 mm |
| Depth The distance from the front to the back of something. | 56.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 11.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 20 g |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 714287 |
| MPN | DEM-433XT |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Product Use | General |
