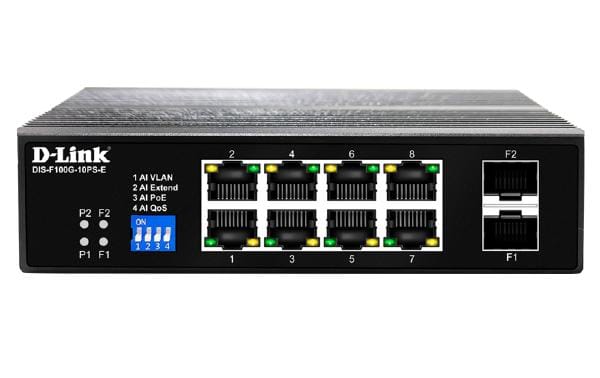

10 Port Gigabit Industrial PoE Switch with 8 PoE ports and 2 SFP ports
10 Port Gigabit Industrial PoE Switch with 8 PoE ports and 2 SFP ports
8 1000BASE T PoE ports and 2 SFP ports
PoE budget is 240 Watts
Robust and High Redundancy Design
DIN Rail mountable
Fanless, passive cooling design
High EMC endurance
6 kV surge protection on copper ports
Dual power input for redundant power supplies
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 10 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Copper ethernet cabling technology | 1000BASE-T |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
 |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 20 Gbit/s |
| Forwarding rate | 14.9 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 8000 entries |
| Store-and-forward |
|
| Design | |
| DIN rail mounting |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC |
| Power supply included There is a power supply with this product. |
|
| DC input voltage | 48 - 56 V |
| Power consumption (max) The maximum amount of power used by the device. | 246 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 75 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation The heat generated by the power supply. | 26 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 159 mm |
| Depth The distance from the front to the back of something. | 105 mm |
| Height The measurement of the product from head to foot or from base to top. | 39 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 750 g |
| Sustainability | |
| Sustainability certificates | Federal Communications Commission (FCC), RoHS |
| SKU | 736907 |
| MPN | DIS-F100G-10PS-E |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
