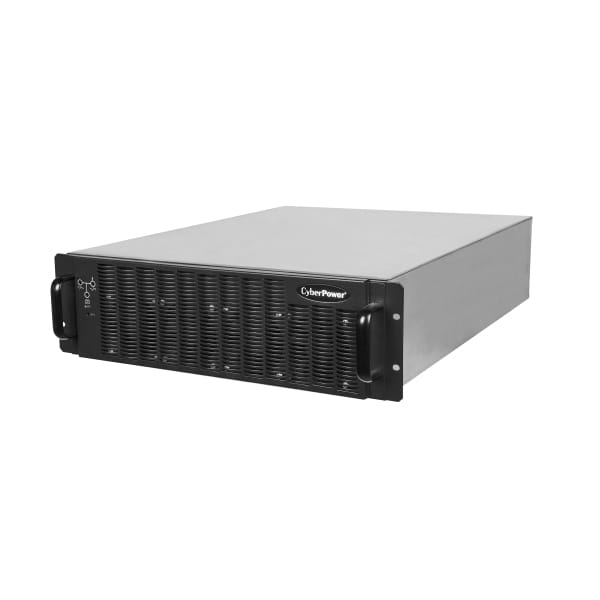

CyberPower SM20KPM, Double-conversion (Online), 20 kVA, 18000 W, Pure sine, 40 - 70 Hz, 98%
Is a power module which can be installed into the UPS to provide vertical scalability and extended power capacity for datacenter UPS. Users can choose the number of power modules to install, and flexibly configure the power capacity based on their business needs.
The product can be installed without taking any extra footprint, saving valuable floor space. The plug-n-play function supports quick and immediate installation. Moreover, the product features hot-swappable capability, allowing users to safely replace battery module without interrupting connected loads, and ensuring seamless operation.
The product can be installed without taking any extra footprint, saving valuable floor space. The plug-n-play function supports quick and immediate installation. Moreover, the product features hot-swappable capability, allowing users to safely replace battery module without interrupting connected loads, and ensuring seamless operation.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 20 kVA |
| Output power The power that the device can produce. | 18000 W |
| Waveform | Pure sine |
| Input frequency The frequency (Hz) which is required to power the product. | 40 - 70 Hz |
| Number of output phases | 3 |
| Efficiency (ECO mode) | 98% |
| Power factor | 0.9 |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Design | |
| Form factor The shape or design of the product. | Rackmount |
| Housing material What the casing of the product is made of. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP20 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Warranty period | 2 year(s) |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 590 mm |
| Height The measurement of the product from head to foot or from base to top. | 134 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 22.5 kg |
| Package width The distance from one side of the packaging to the other. | 620 mm |
| Package depth The distance from the front to the back of the packaging. | 780 mm |
| Package height The distance from the top to the bottom of the packaging. | 235 mm |
| Package weight Weight of the packaged product. | 28.5 kg |
| SKU | 808820 |
| MPN | SM20KPM |
| Brand | Cyberpower |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.cyberpowersystems.com/ |
