Overview

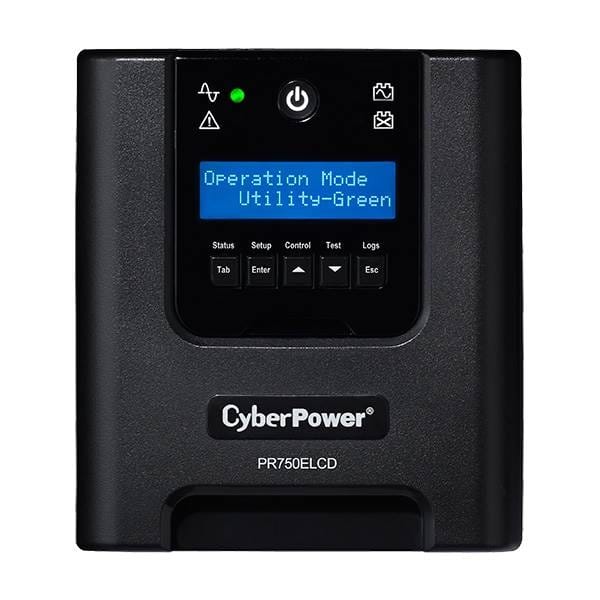

The Professional Tower PR750ELCD UPS with LCD control panel and pure sine wave output is Active PFC compatible, safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that requires seamless connection and advanced power protection. Featuring Automatic Voltage Regulation (AVR) technology that helps to stabilize AC voltage and to provide protection to connected equipment. This UPS system is ENERGY STAR® qualified and designed with patented GreenPower UPS™ bypass circuitry that improves the operating efficiency so that users can enjoy significant cost savings by reducing energy consumption and waste heat generated.
The LCD control panel provides 41 different settings for status and operation. Functions include menus for checking power status on (11) different parameters, (23) settings for setup and control of the UPS, (3) battery test & calibration options, and (4) selections in the Log menu. With its attached cable the LCD control panel can be removed from the UPS and relocated up to 4.5 feet away from the UPS for ease of use regardless of locations.
The PR750ELCD comes with a capacity of 750VA/525Watts, six (6) IEC C13 receptacles, and two (2) hot-swappable, user-replaceable 12V/7Ah batteries. The EMI/RFI filters increase the tolerance of noises and load interferences so that improve the picture and sound quality in audio/video systems. The unit offers one (1) HID USB and one (1) Serial connectivity port with PC and one (1) Emergency Power Off (EPO) port for the capability to immediately power down entire installed equipment from a single access point.
The PR750ELCD features remote network management capabilities which include the PowerPanel® Business Edition software, an optional SNMP/ HTTP remote management card, and an optional ENVIROSENSOR. These management tools enable administrators to perform various operations including remote management, real-time monitoring, UPS configuration, and scheduled server/workstations shutdowns. All Smart App UPS systems and Remote Management Card have achieved the status of Cisco EnergyWise certified, better supporting other EnergyWise-enabled entities and be easily monitored and controlled to achieve the best energy performance under the EnergyWise operation framework.
For as long as you own this product, CyberPower will cover up to $100,000 of properly connected equipment if it’s ever damaged by a surge, including surges due to lightning strikes.

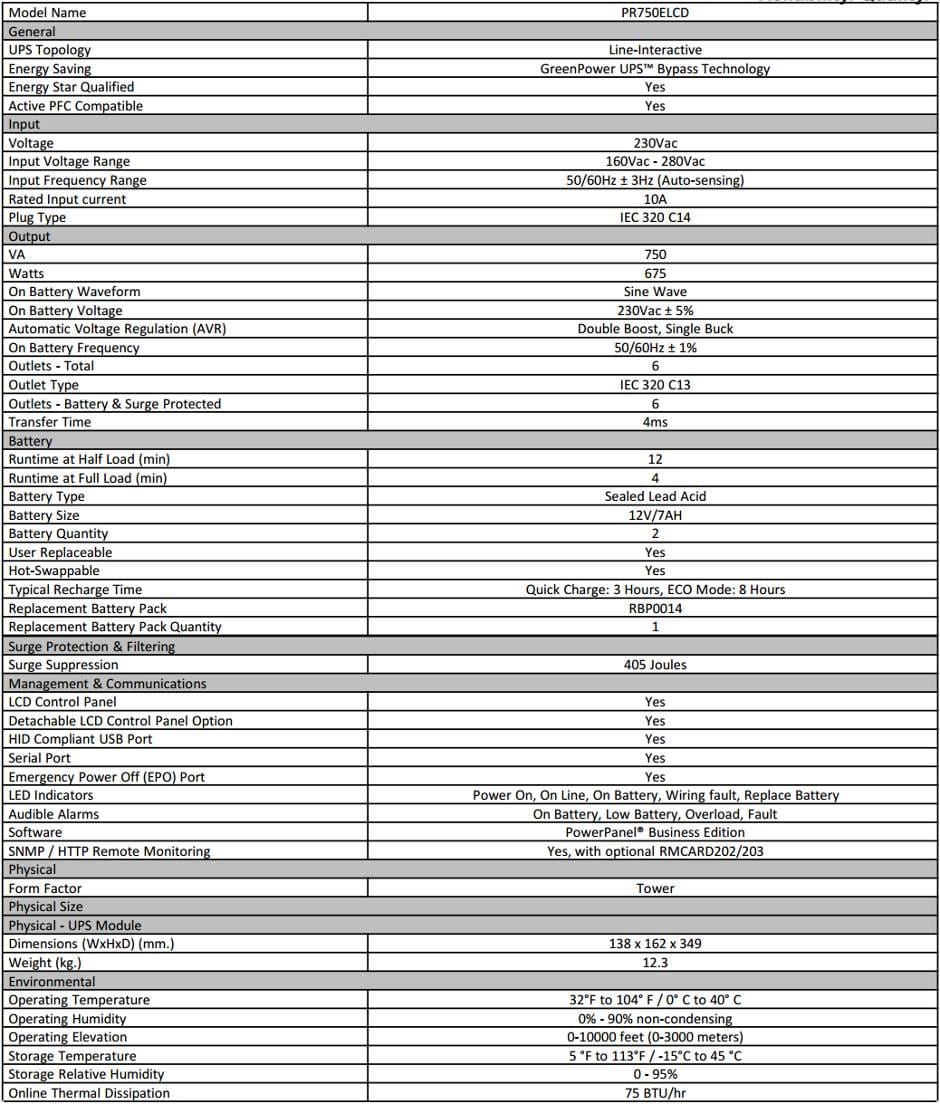

Specifications
| Features | |
| Output power capacity The maximum power that the device can produce. | 750 VA |
| Output power The power that the device can produce. | 675 W |
| Input frequency The frequency (Hz) which is required to power the product. | 47/63 Hz |
| Output operation voltage (max) The maximum output voltage produced by the device. | 230 V |
| EMI/RFI noise filtering |
 |
| Surge protection |
|
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Ports & interfaces | |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 6 AC outlet(s) |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 4 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 12 min |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 8 h |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 349 mm |
| Depth The distance from the front to the back of something. | 138 mm |
| Height The measurement of the product from head to foot or from base to top. | 162 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 12.3 kg |
| Other features | |
| Overload protection |
|
| SKU | 345975 |
| MPN | PR750ELCD |
| Brand | Cyberpower |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.cyberpowersystems.com/ |
