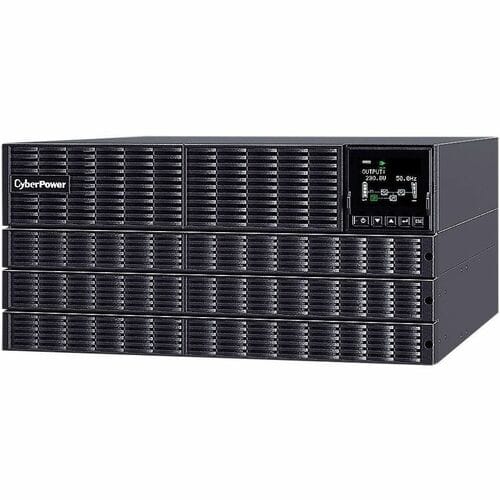

CyberPower Online S Premium 10000VA/10000W 5RU Rack UPS
Item No:
735233
MPN:
OLS10KERT5U
$6,322.87
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 2-4 business days
Store Availability
- 3-5 business days at Bankstown Store
- 3-5 business days at Castle Hill Store
- 2-4 business days at Northmead Store
Shipping Estimate
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 10 kVA |
| Output power The power that the device can produce. | 10000 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 110 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 300 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 200 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 1335 J |
| Heat dissipation The heat generated by the power supply. | 2047 BTU/h |
| Efficiency (ECO mode) | 98% |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 3:1 |
| ECO mode |
 |
| Emergency Power Off (EPO) |
|
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 1.5% |
| EMI/RFI noise filtering |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 62 dB |
| Power protection features Features that protect the device against power problems e.g. overload. | Overload |
| Carrying handle(s) |
 |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Audible alarm modes | Battery replacement, Fault, Overload alarm |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler, Terminal |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C13 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 9 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 2.9 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 11.2 min |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 4 h |
| Charging current | 4 A |
| Hot-swap battery |
|
| Design | |
| Form factor The shape or design of the product. | Tower |
| Housing material What the casing of the product is made of. | Metal |
| Rack capacity The spase that device fill in rack. | 5U |
| Built-in fan |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Compatibility The other products, software and hardware this product can be used with. | BPS240V9ART3U |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1500 m |
| Non-operating altitude | 0 - 1500 m |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 433 mm |
| Depth The distance from the front to the back of something. | 661 mm |
| Height The measurement of the product from head to foot or from base to top. | 213.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 80 kg |
| Package width The distance from one side of the packaging to the other. | 575 mm |
| Package depth The distance from the front to the back of the packaging. | 890 mm |
| Package height The distance from the top to the bottom of the packaging. | 489 mm |
| Package weight Weight of the packaged product. | 99 kg |
| Package type The type of product package e.g. box. | Box |
| Packaging data | |
| Cables included | USB cable |
| Manual |
|
| SKU | 735233 |
| MPN | OLS10KERT5U |
| Brand | Cyberpower |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.cyberpowersystems.com/ |
