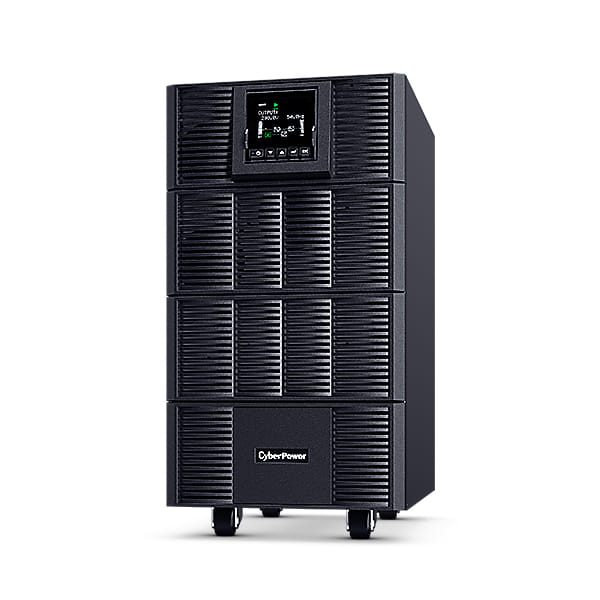

CyberPower OLS6KE, Double-conversion (Online), 6 kVA, 6000 W, Pure sine, 110 V, 300 V
CyberPower OLS6KE is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated into the back office, server room, and data center environment.
The UPS's output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. The user-friendly tiltable color LCD panel allows users to monitor the power status and configure the settings with ease. This product is capable of detecting the quantity of connected Extended Battery Modules (EBM) automatically to estimate UPS's runtime. The battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contacts to facilitate specific UPS event notifications for seamless management. Moreover, the selected product is equipped with Remote Cloud Card to support remote monitoring via a web portal or the mobile app.
The UPS's output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. The user-friendly tiltable color LCD panel allows users to monitor the power status and configure the settings with ease. This product is capable of detecting the quantity of connected Extended Battery Modules (EBM) automatically to estimate UPS's runtime. The battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contacts to facilitate specific UPS event notifications for seamless management. Moreover, the selected product is equipped with Remote Cloud Card to support remote monitoring via a web portal or the mobile app.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 6 kVA |
| Output power The power that the device can produce. | 6000 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 110 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 300 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 208 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 30 A |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 1335 J |
| Power factor | 1 |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| ECO mode |
 |
| Emergency Power Off (EPO) |
|
| Output voltage Total Harmonic Distortion (THD) | 2% |
| EMI/RFI noise filtering |
|
| Surge protection |
|
| Power protection features Features that protect the device against power problems e.g. overload. | Overload |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Number of batteries supported The number of batteries that can be used with the product. | 10 |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 4 h |
| Charging current | 4 A |
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Housing material What the casing of the product is made of. | Metal |
| Rack capacity The spase that device fill in rack. | 5U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators | Operation |
| Certification | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 270 mm |
| Depth The distance from the front to the back of something. | 460 mm |
| Height The measurement of the product from head to foot or from base to top. | 520 mm |
| Packaging data | |
| Cables included | USB cable |
| SKU | 785705 |
| MPN | OLS6KE |
| Brand | Cyberpower |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.cyberpowersystems.com/ |
