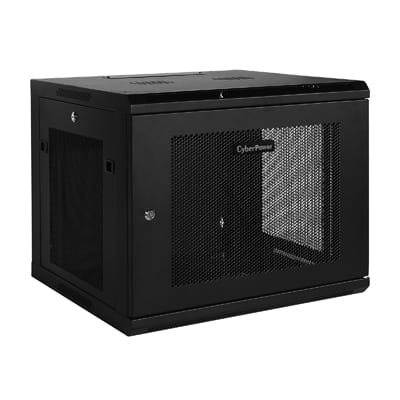

CyberPower CR9U61001, Wall mounted rack, 9U, 60 kg, Key lock, 18.9 kg, Black
The CR9U61001 is designed for use in network closets, classrooms and other locations. This wall mount rack houses network switches and patch panels up to 22" deep. It includes convenient top panel cable access openings, perforated door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR9U61001 ships fully assembled for quick deployment, and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
Perforated Front Door and Side Panels
Provides ventilation for small servers and networking equipment.
Reversible Door
Front door has spring loaded hinges and can be easily moved to the opposite side.
Quick Release Side Panels
Lockable side panels can be removed easily for quick access to equipment and cabling.
Cable Access Openings
Slots in the bottom and top provide convenient cable routing to and from the enclosure.
Rack Mounting Compatibility
The CR9U61001 is compatible with all EIA-310 compliant 19" equipment.
Adjustable Rack Angles
Vertical rack angles can be adjusted in 3/4" increments for mounting depth requirements up to 22". Depth index numbering ensures quick and consistent rail placement. U rack units are numbered front and back for easy equipment installation.
Designed for Stability
A high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs.
Integrated Electrical Grounding
Grounding connections are located on the frame for facility ground.
Perforated Front Door and Side Panels
Provides ventilation for small servers and networking equipment.
Reversible Door
Front door has spring loaded hinges and can be easily moved to the opposite side.
Quick Release Side Panels
Lockable side panels can be removed easily for quick access to equipment and cabling.
Cable Access Openings
Slots in the bottom and top provide convenient cable routing to and from the enclosure.
Rack Mounting Compatibility
The CR9U61001 is compatible with all EIA-310 compliant 19" equipment.
Adjustable Rack Angles
Vertical rack angles can be adjusted in 3/4" increments for mounting depth requirements up to 22". Depth index numbering ensures quick and consistent rail placement. U rack units are numbered front and back for easy equipment installation.
Designed for Stability
A high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs.
Integrated Electrical Grounding
Grounding connections are located on the frame for facility ground.
| Features | |
| Rack capacity The spase that device fill in rack. | 9U |
| Type Characteristics of the device. | Wall mounted rack |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 60 kg |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Frame type | Closed |
| Key lock |
 |
| Cooling type The method used to cool the device or to cool the air around the device. | Passive |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP20 |
| Certification | CE, DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS |
| Weight & dimensions | |
| Size (imperial) Physical dimension. | 48.3 cm (19") |
| Width The measurement or extent of something from side to side. | 600 mm |
| Depth The distance from the front to the back of something. | 600 mm |
| Height The measurement of the product from head to foot or from base to top. | 505 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 18.9 kg |
| Mounting depth (max) | 56.7 cm |
| Packaging data | |
| Mounting kit |
|
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 665 mm |
| Package depth The distance from the front to the back of the packaging. | 665 mm |
| Package height The distance from the top to the bottom of the packaging. | 570 mm |
| Package weight Weight of the packaged product. | 21.8 kg |
| SKU | 759020 |
| MPN | CR9U61001 |
| Brand | Cyberpower |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.cyberpowersystems.com/ |
| Stock Availability | Available for Shipping |
