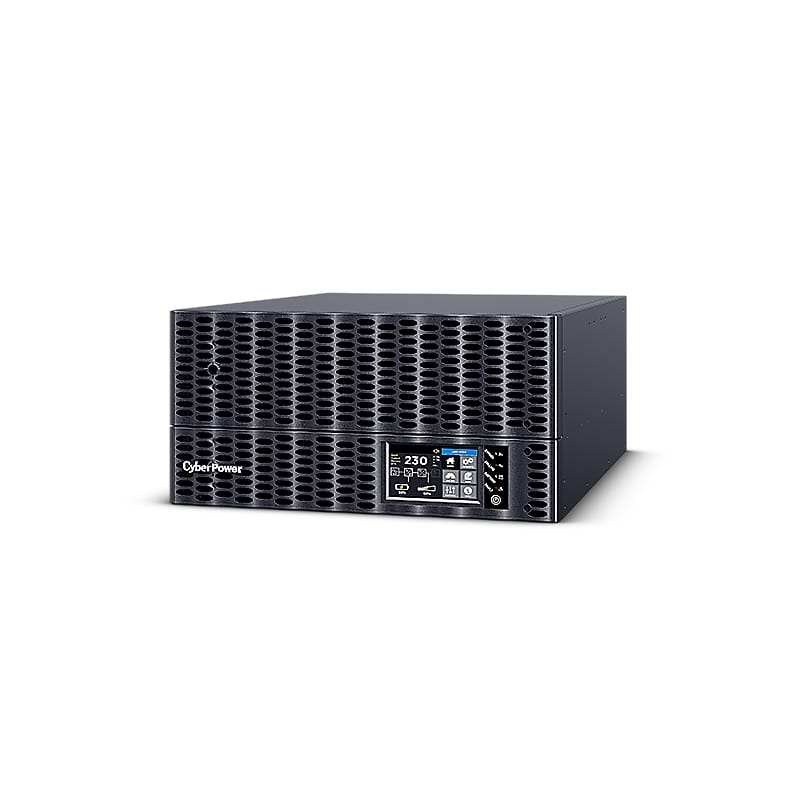

Cyberpower 40KVA/40KW Rack UPS

Specifications:

• Phase: Three Phase


• Form Factor: Rackmount, Tower


• UPS Topology: Online Double Conversion


• Energy Saving Technology: Online ECO Mode Efficiency > 98.9%


• Normal Mode Efficiency ( % ): 95.8%


• Battery Mode Efficiency ( % ): 95.5%


• Active PFC Compatibility: Yes


• Parallel Expansion (Max. Units): 4


• Dual Power Inputs: Yes


• Generator Compatibility: Yes


• Nominal Input Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac


• Input Voltage Range ( Vac ): Line to Neutral (L-N): 132 ~ 276 Vac, Line to Line (L-L): 228 ~ 478 Vac


• Input Frequency Range ( Hz ): 40 ~ 70


• Rated Input Current ( A ): 64.5


• Input Power Factor: 0.99


• Overload Protection (Bypass): 125% Load for continuous operation, 150% Load for 10 min, 1000% Load for 5 ms


• Input Connector Type: Hardwire Terminal Block


• Capacity (VA): 40000


• Capacity (Watts): 40000


• On Battery Waveform: Pure Sine Wave


• Output Voltage Setting: Configurable


• Output Frequency Setting: Configurable


• Rated Output Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac


• Output Voltage Tolerance ( % ): Balance Load: 1 %


• Output Frequency ( Hz % ): 50 0.2, 60 0.166


• Power Factor: 1


• ECO Mode Voltage Tolerance: 5 %


• Overload Protection: Internal Current Limiting, Fuse


• Overload Protection (Line Mode): 102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load for 200 ms


• Overload Protection (Battery Mode): 102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load for 200 ms


• Crest Factor: 3 : 1


• Harmonic Distortion (Linear Load): THD?1%


• Harmonic Distortion (Non-linear Load): THD?3%


• Internal Bypass: Automatic Bypass


• Synchronization Window (Nominal) ( Hz ): 4


• Outlet Type: Hardwire Terminal Block x 1


• Typical Transfer Time ( ms ): 0


• Maximum Charging Current ( A ): 12


• Typical Charging Current ( A ): 3.6


• Compatible Battery Types: VRLA


• Recharge Power Setting: Configurable


• Charger Voltage Tolerance ( % ): ? 1 %


• Start On Battery: Yes


• Smart Battery Management (SBM): Yes


• Compatible Extended Battery Module (EBM): BME480V55ART5U


• External Battery Quantity: 12V x 40pcs


• EMI/RFI Filtration: Yes


• LCD Panel: Yes


• LCD Types: Color LCD, LCD Touch Panel


• LCD Orientation: Rotatable LCD
