CyberPower 3 Phase HD Rack 30KVA/30KW UPS
Item No:
798560
MPN:
OL3T030KERTHD
$5,985.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

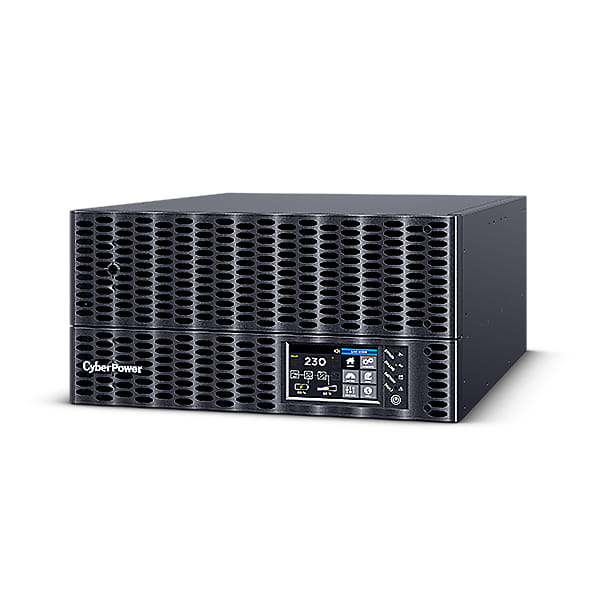

CyberPower OL3T030KERTHD, Double-conversion (Online), 30 kVA, Pure sine, 40 - 70 Hz, 48.5 A, 98.9%
Guarantees backup power and protection for IT equipment such as FTTx devices, networking devices and NAS/storage devices. It is typically integrated in the back office, server room, and data center environments.
With integrated IGBT technology and intelligent DSP-based control, the product produces less input total harmonic distortion (THDi), achieving higher power efficiency. Supporting flexible placement, the selected product can be installed in a rack or tower configuration, and it's compatible with 19" standard rack cabinets. In addition, the product features parallel expansion, allowing the connections of multiple UPS units to reach higher capacity. Its color LCD with touch panel enables easy monitoring and configuration of the system. Furthermore, the LCD panel can also be adjusted to vertical or horizontal display through LCD setting.
With integrated IGBT technology and intelligent DSP-based control, the product produces less input total harmonic distortion (THDi), achieving higher power efficiency. Supporting flexible placement, the selected product can be installed in a rack or tower configuration, and it's compatible with 19" standard rack cabinets. In addition, the product features parallel expansion, allowing the connections of multiple UPS units to reach higher capacity. Its color LCD with touch panel enables easy monitoring and configuration of the system. Furthermore, the LCD panel can also be adjusted to vertical or horizontal display through LCD setting.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 30 kVA |
| Waveform | Pure sine |
| Input frequency The frequency (Hz) which is required to power the product. | 40 - 70 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 48.5 A |
| Efficiency (ECO mode) | 98.9% |
| Crest factor | 3:1 |
| Ports & interfaces | |
| Serial interface |
 |
| Serial interface type | RS-485 |
| Battery | |
| Battery voltage The voltage (V) of the battery. | 240 V |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Housing material What the casing of the product is made of. | Metal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP20 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 433 mm |
| Depth The distance from the front to the back of something. | 760 mm |
| Height The measurement of the product from head to foot or from base to top. | 219 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 42.8 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 572 mm |
| Package depth The distance from the front to the back of the packaging. | 980 mm |
| Package height The distance from the top to the bottom of the packaging. | 363 mm |
| Package weight Weight of the packaged product. | 52 kg |
| SKU | 798560 |
| MPN | OL3T030KERTHD |
| Brand | Cyberpower |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Return To Base Warranty |
| Warranty Contact | https://www.cyberpowersystems.com/ |
